东北大学学报(自然科学版) ›› 2025, Vol. 46 ›› Issue (4): 97-105.DOI: 10.12068/j.issn.1005-3026.2025.20230272
孙东东1,2, 杨天鸿1,2, 刘飞跃1,3, 刘洋1,2
收稿日期:
2023-09-21
出版日期:
2025-04-15
发布日期:
2025-07-01
作者简介:
孙东东(1991—),男,辽宁海城人,东北大学博士研究生基金资助:
Dong-dong SUN1,2, Tian-hong YANG1,2, Fei-yue LIU1,3, Yang LIU1,2
Received:
2023-09-21
Online:
2025-04-15
Published:
2025-07-01
摘要:

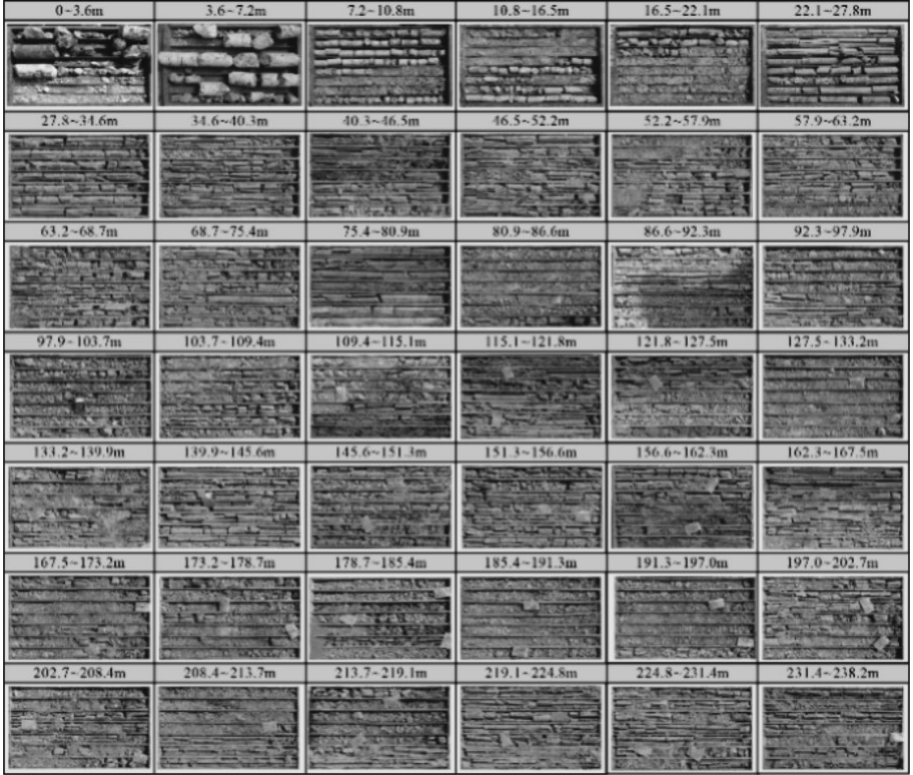

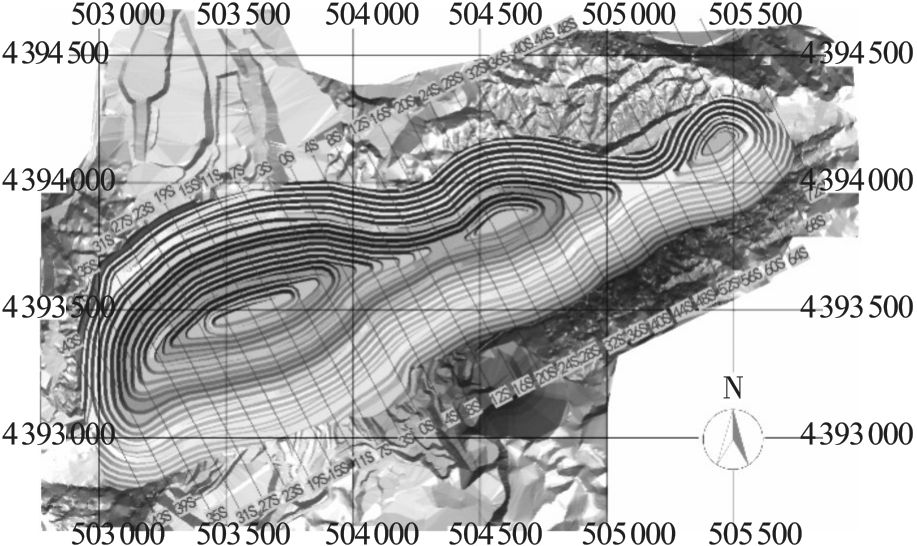

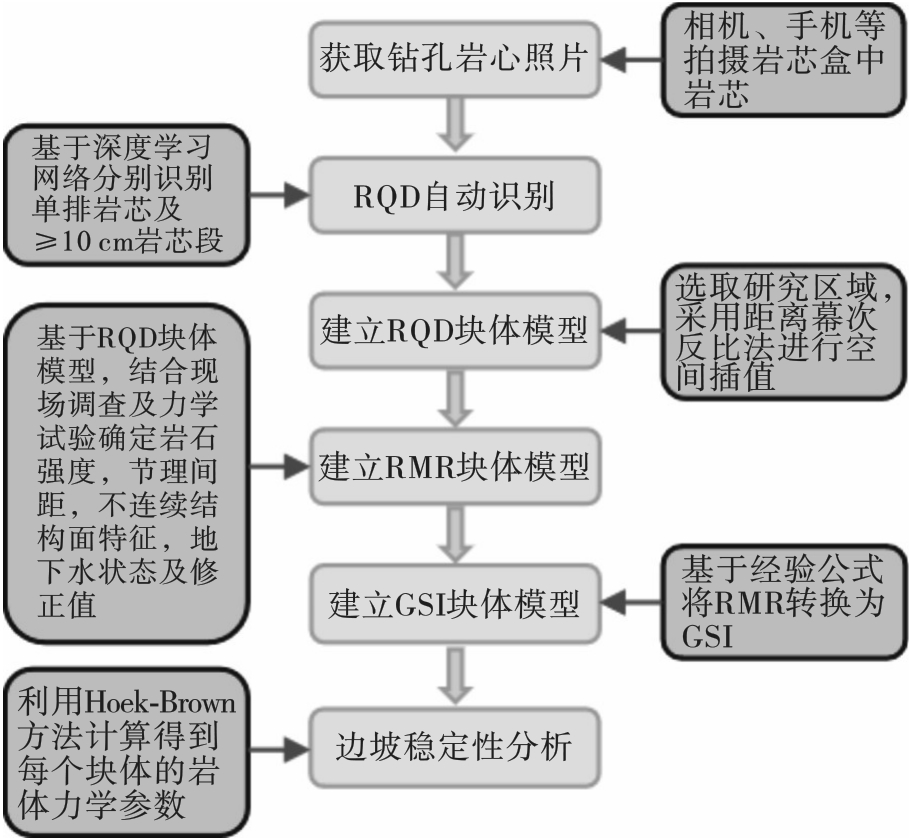

在进行边坡岩体质量评价和稳定性分析时,通常将岩体简化为均质材料,而天然岩体实际上具有非均质的特征.针对该问题,提出了一种考虑非均质性的岩体质量精细化表征及力学参数建模方法.以乌拉根铅锌矿为例,详细阐述了岩体力学参数精细化建模的流程.基于所建立的精细化力学参数模型,分别采用均匀和非均匀两种岩体力学参数对南帮进行稳定性分析,结果表明,采用非均匀力学参数进行计算可以更准确地反映露天边坡稳定性的真实情况.本研究所建立的精细化块体模型能够反映露天边坡中的薄弱及不稳定区域,可为边坡岩体质量评价、稳定性分析及支护施工设计等提供科学有效的解决途径.
中图分类号:
孙东东, 杨天鸿, 刘飞跃, 刘洋. 露天矿山岩体质量精细化表征及边坡稳定性分析[J]. 东北大学学报(自然科学版), 2025, 46(4): 97-105.
Dong-dong SUN, Tian-hong YANG, Fei-yue LIU, Yang LIU. Detailed Characterization of Rock Mass Quality and Slope Stability Analysis for Open-Pit Mines[J]. Journal of Northeastern University(Natural Science), 2025, 46(4): 97-105.

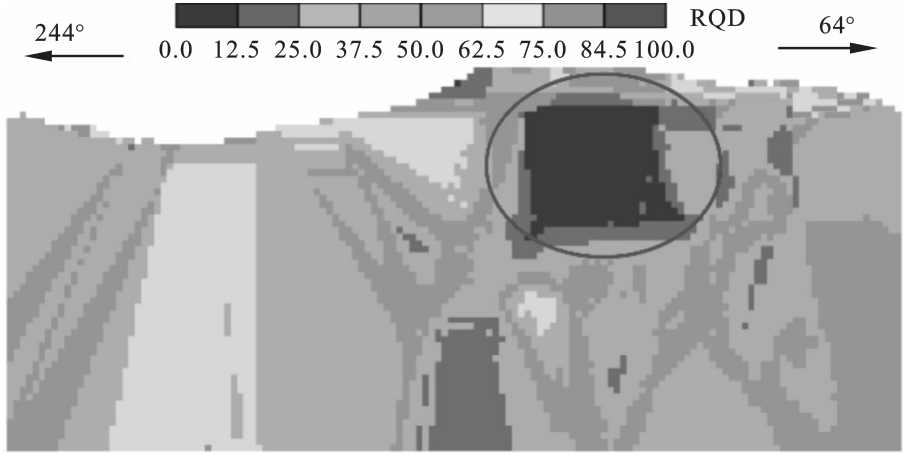

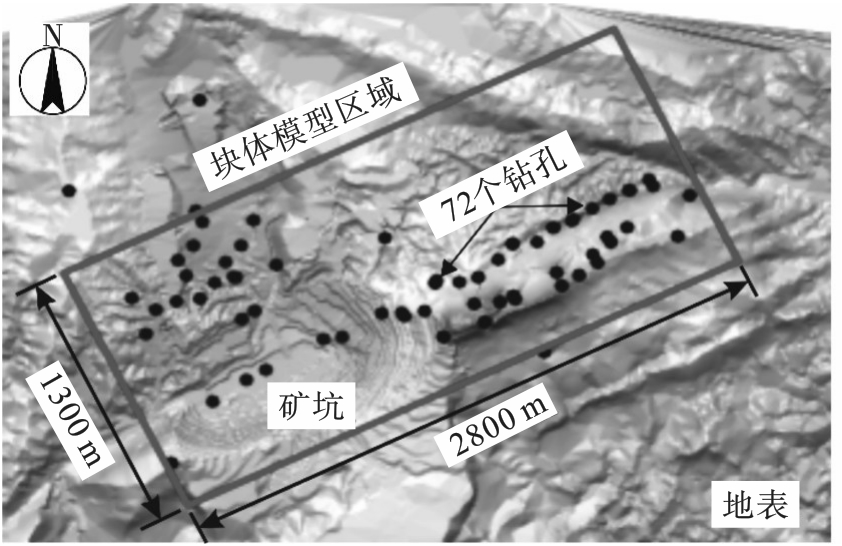

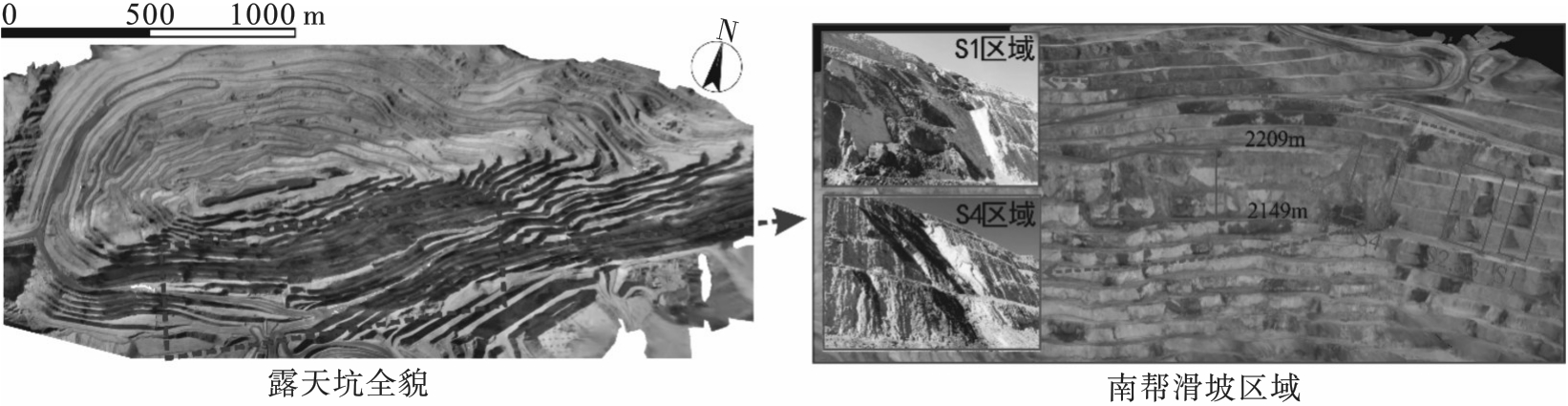

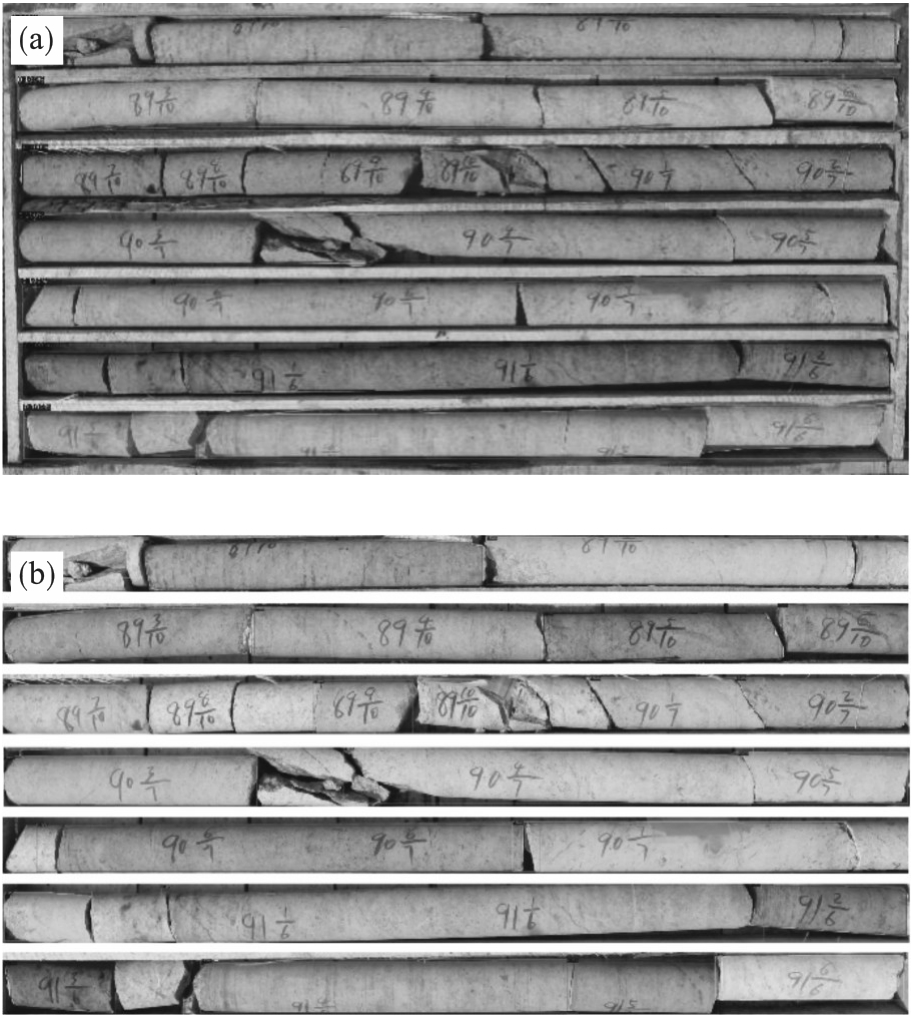

岩性 | A1 | A3 | A4 | A5 | B |
---|---|---|---|---|---|
含砾砂岩 | 2 | 15 | 17 | 7 | -5 |
中风化砂岩 | 4 | 15 | 18 | 4 | -5 |
含矿砂岩 | 2 | 15 | 20 | 4 | -5 |
微风化砂岩 | 7 | 15 | 20 | 10 | -5 |
微风化泥岩 | 4 | 15 | 20 | 10 | -10 |
灰岩 | 7 | 10 | 18 | 10 | -5 |
中风化石膏 | 7 | 15 | 18 | 10 | -5 |
砾岩 | 4 | 15 | 20 | 7 | -10 |
长石砂岩 | 2 | 15 | 18 | 7 | -10 |

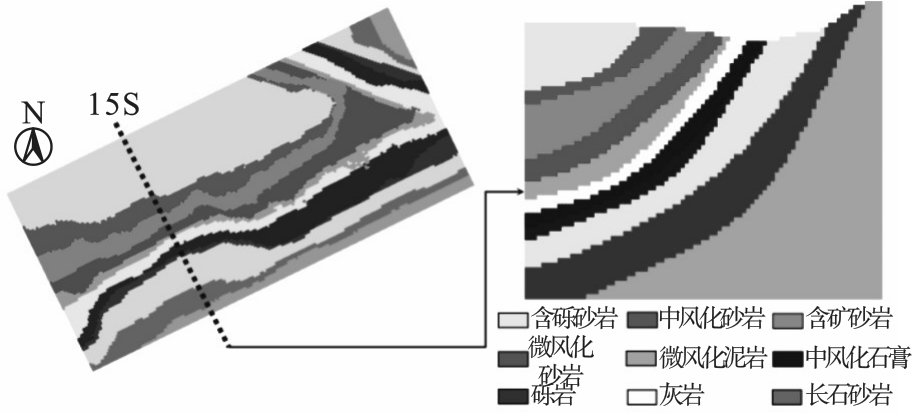

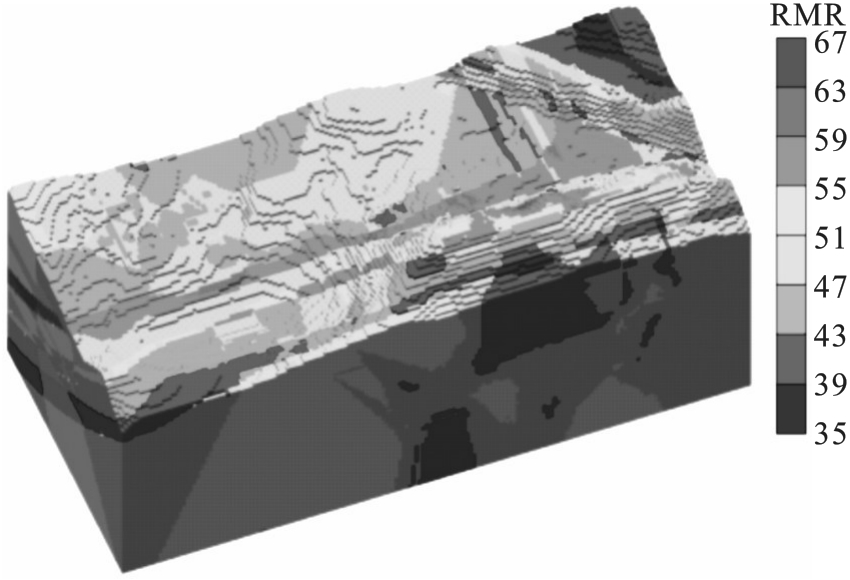

表1 RMR分级系统评价因子(不含RQD值) (excluding RQD)
Table 1 RMR grading system evaluation factor
岩性 | A1 | A3 | A4 | A5 | B |
---|---|---|---|---|---|
含砾砂岩 | 2 | 15 | 17 | 7 | -5 |
中风化砂岩 | 4 | 15 | 18 | 4 | -5 |
含矿砂岩 | 2 | 15 | 20 | 4 | -5 |
微风化砂岩 | 7 | 15 | 20 | 10 | -5 |
微风化泥岩 | 4 | 15 | 20 | 10 | -10 |
灰岩 | 7 | 10 | 18 | 10 | -5 |
中风化石膏 | 7 | 15 | 18 | 10 | -5 |
砾岩 | 4 | 15 | 20 | 7 | -10 |
长石砂岩 | 2 | 15 | 18 | 7 | -10 |
岩性 | mi |
---|---|
含砾砂岩 | 20 |
中风化砂岩 | 17 |
含矿砂岩 | 19 |
微风化砂岩 | 20 |
微风化泥岩 | 8 |
灰岩 | 9 |
中风化石膏 | 14 |
砾岩 | 12 |
长石砂岩 | 13 |
表2 H-B指标mi 取值
Table 2 H-B index values of mi𝑖

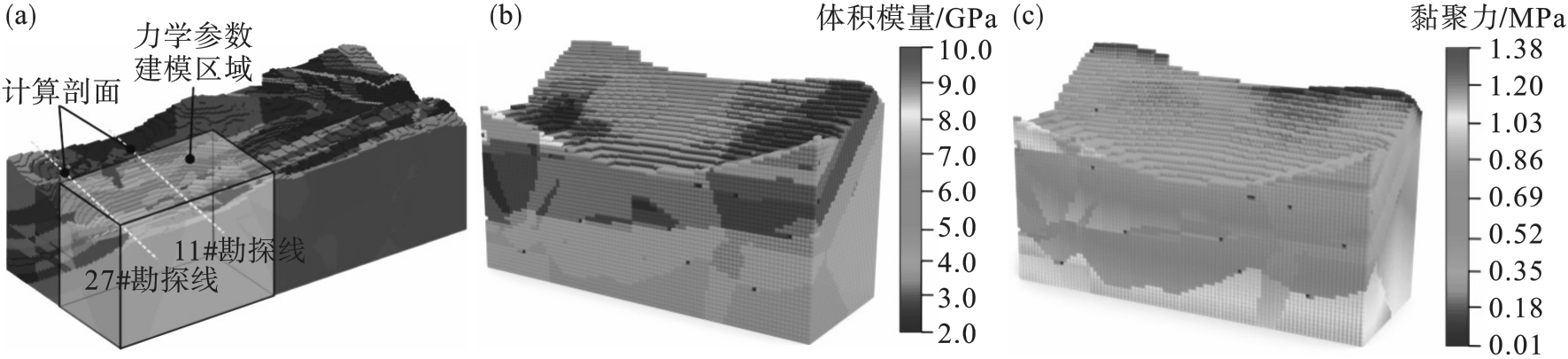

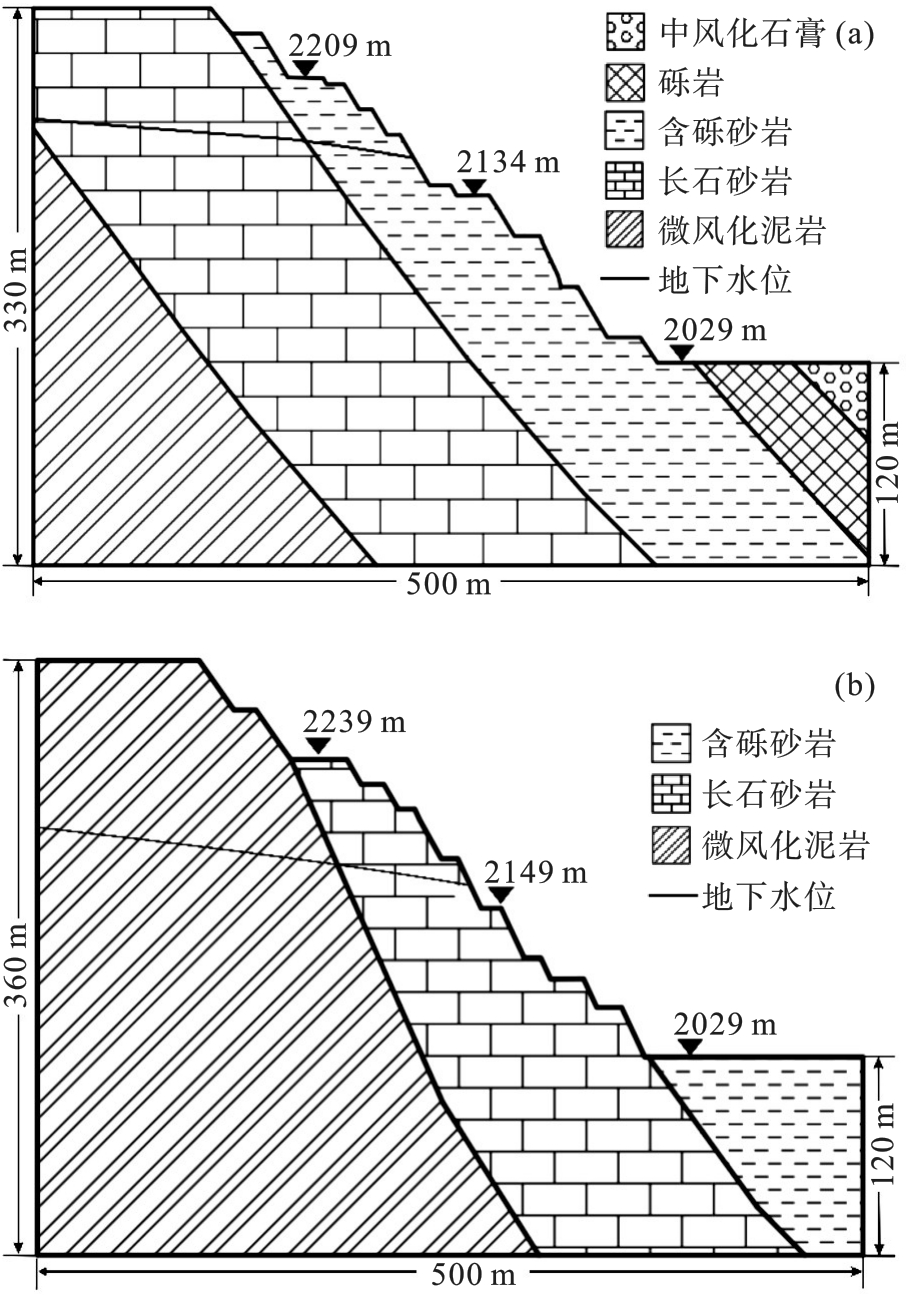

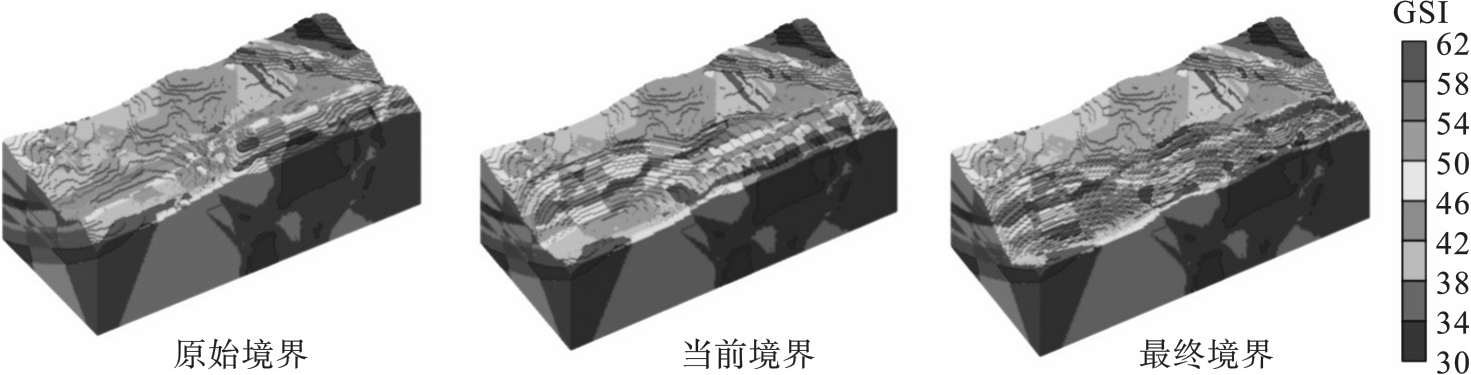

岩性 | mi |
---|---|
含砾砂岩 | 20 |
中风化砂岩 | 17 |
含矿砂岩 | 19 |
微风化砂岩 | 20 |
微风化泥岩 | 8 |
灰岩 | 9 |
中风化石膏 | 14 |
砾岩 | 12 |
长石砂岩 | 13 |
岩性 | 黏聚力 | 内摩擦角 | 容重 |
---|---|---|---|
kPa | (°) | kN·m-3 | |
微风化泥岩 | 674 | 32.00 | 25.69 |
长石砂岩 | 355 | 31.43 | 23.26 |
含砾砂岩 | 304 | 31.28 | 25.09 |
砾岩 | 433 | 37.91 | 26.74 |
中风化石膏 | 477 | 36.50 | 29.39 |
表3 力学参数取值
Table 3 Mechanical parameter values

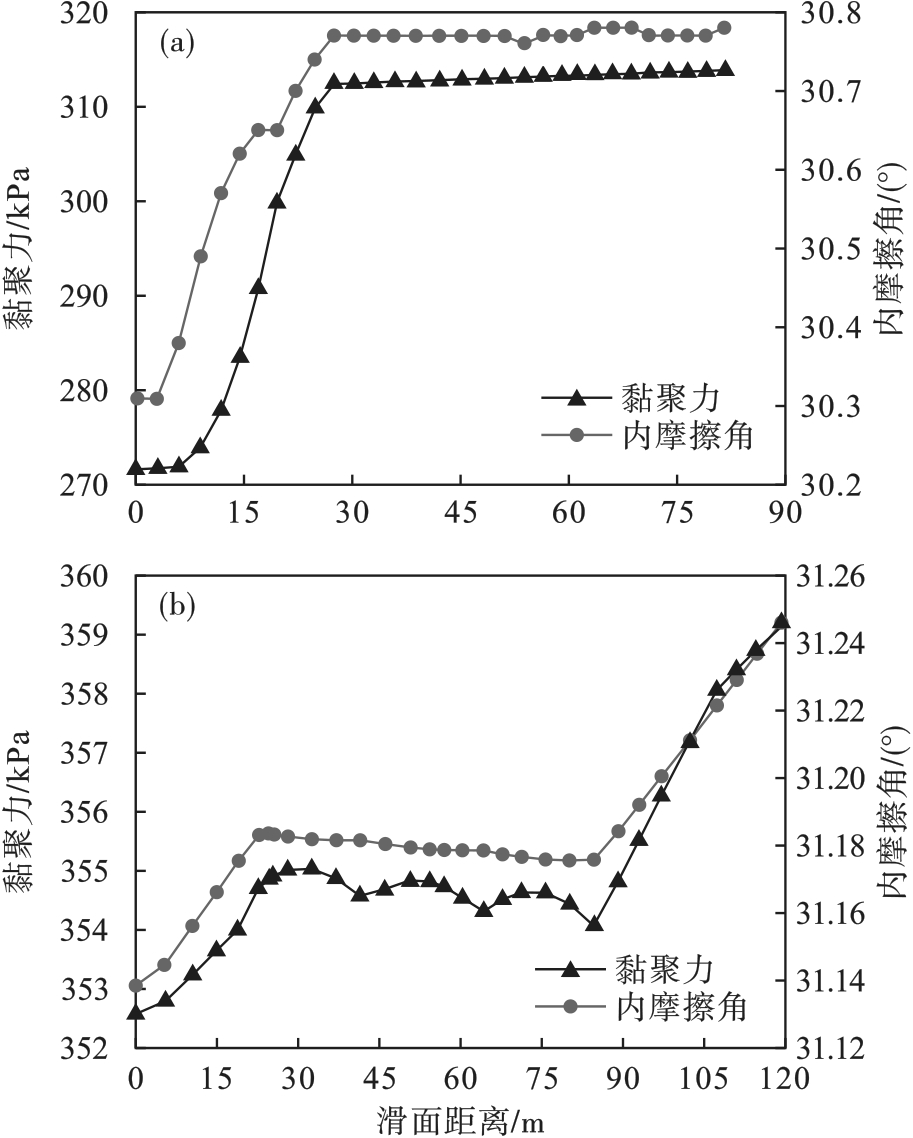

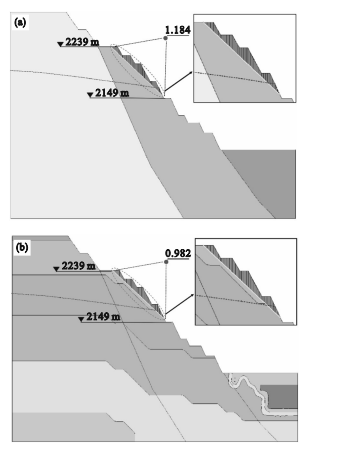

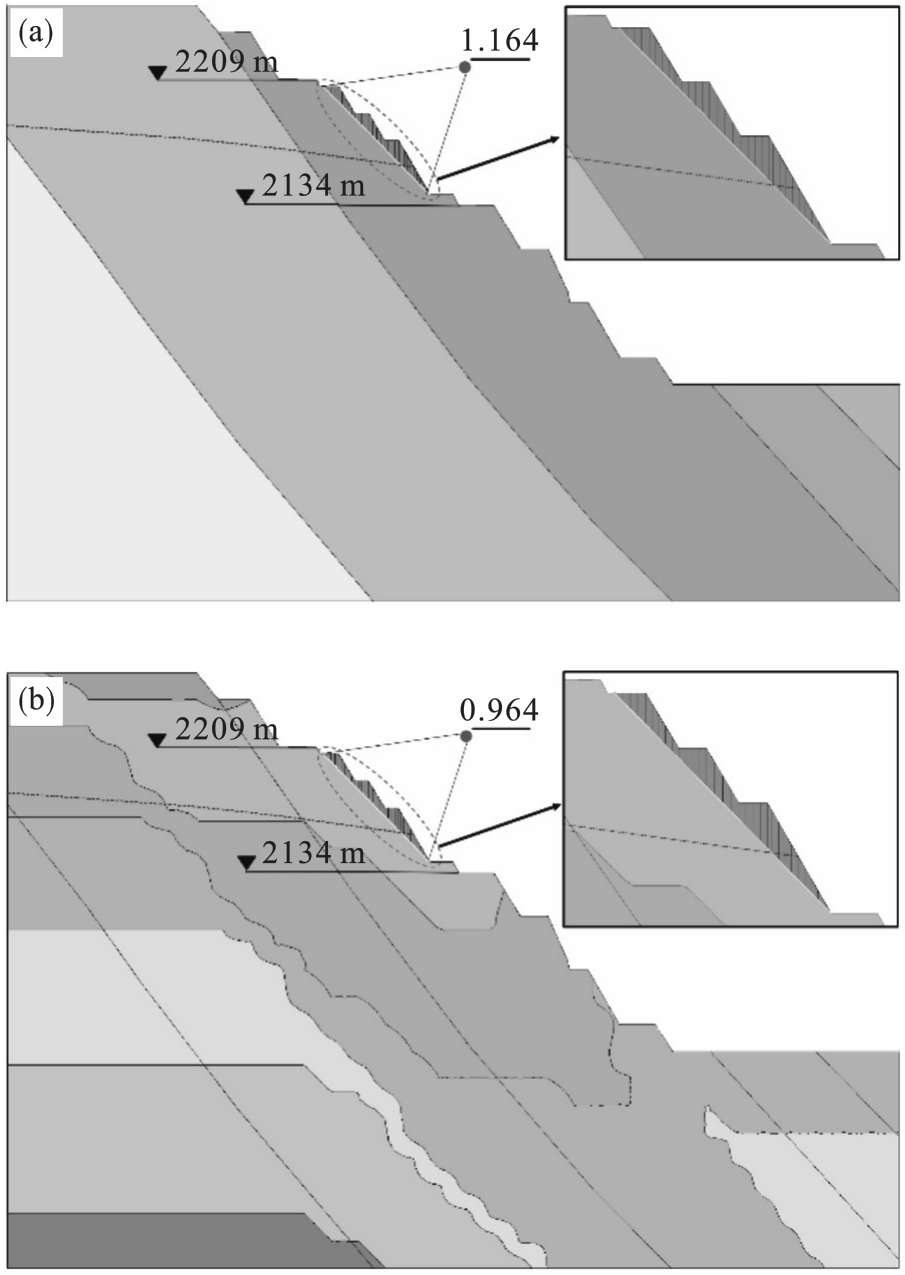

岩性 | 黏聚力 | 内摩擦角 | 容重 |
---|---|---|---|
kPa | (°) | kN·m-3 | |
微风化泥岩 | 674 | 32.00 | 25.69 |
长石砂岩 | 355 | 31.43 | 23.26 |
含砾砂岩 | 304 | 31.28 | 25.09 |
砾岩 | 433 | 37.91 | 26.74 |
中风化石膏 | 477 | 36.50 | 29.39 |
边坡工程安全等级 | 自重+地下水+爆破振动力 |
---|---|
Ⅰ | 1.23~1.18 |
Ⅱ | 1.18~1.13 |
Ⅲ | 1.13~1.08 |
表4 总体边坡设计安全系数
Table 4 Design safety factors for slope
边坡工程安全等级 | 自重+地下水+爆破振动力 |
---|---|
Ⅰ | 1.23~1.18 |
Ⅱ | 1.18~1.13 |
Ⅲ | 1.13~1.08 |
1 | 章林. 我国金属矿山露天采矿技术进展及发展趋势[J]. 金属矿山, 2016(7): 20-25. |
Zhang Lin. Technical progress and development trend of open pit mining in metal mines of China[J]. Metal Mine, 2016(7): 20-25. | |
2 | 赵浩, 毛开江, 曲业明, 等. 我国露天煤矿无人驾驶及新能源卡车发展现状与关键技术[J]. 中国煤炭, 2021, 47(4): 45-50. |
Zhao Hao, Mao Kai-jiang, Qu Ye-ming,et al. Development status and key technology of driverless and new energy trucks in open-pit coal mine in China[J]. China Coal, 2021, 47(4): 45-50. | |
3 | Sun D D, Deng W X, Yang T H, et al. A case study integrating numerical simulation and InSAR monitoring to analyze bedding-controlled landslide in Nanfen open-pit mine[J]. Sustainability, 2023, 15(14): 11158. |
4 | 杨天鸿, 王赫, 董鑫, 等. 露天矿边坡稳定性智能评价研究现状、存在问题及对策[J]. 煤炭学报, 2020, 45(6): 2277-2295. |
Yang Tian-hong, Wang He, Dong Xin, et al. Current situation, problems and countermeasures of intelligent evaluation of slope stability in open pit[J]. Journal of China Coal Society, 2020, 45(6): 2277-2295. | |
5 | 柴利蒙, 孙东东, 杨天鸿, 等.金宝铁矿南帮顺倾边坡滑坡机理研究及治理工程实践[J]. 黄金, 2022, 43(12): 33-38. |
Chai Li-meng, Sun Dong-dong, Yang Tian-hong, et al. Study on landslide mechanism and treatment engineering practice of south consequent slope in Jinbao iron mine[J]. Gold, 2022, 43(12): 33-38. | |
6 | Li J D, Gao Y, Yang T H, et al. Integrated simulation and monitoring to analyze failure mechanism of the anti-dip layered slope with soft and hard rock interbedding[J]. International Journal of Mining Science and Technology, 2023, 33(9): 1147-1164. |
7 | Liu F Y, Yang T H, Deng W X, et al. Geostatistics-block-based characterization of heterogeneous rock mass and its application on ultimate pit limit optimization: a case study[J]. Bulletin of Engineering Geology and the Environment, 2021, 80(2): 1683-1700. |
8 | Hoek E, Karakas A. Practical rock engineering[J]. Environmental and Engineering Geoscience, 2008, 14(1): 55-58. |
9 | Li J, Gao Y, Yang T, et al. Effect of water on the rock strength and creep behavior of green mudstone[J]. Geomechanics and Geophysics for Geo-Energy and Geo-Resources, 2023, 9(1): 101. |
10 | Deere D U, Deere D W. Rock quality designation (RQD) after twenty years[M]. Vicksburg: US Army Engineer Waterways Experiment Station, 1989. |
11 | Singh B, Goel R K. Rock mass classification: a practical approach in civil engineering[M]. Amsterdam: Elsevier, 1999. |
12 | Sonmez H, Ulusay R. Modifications to the geological strength index (GSI) and their applicability to stability of slopes[J]. International Journal of Rock Mechanics & Mining Sciences, 1999, 36(6): 743-760. |
13 | Barton N, Lien R, Lunde J. Engineering classification of rock masses for the design of tunnel support[J]. Rock Mechanics, 1974, 6(4): 189-236. |
14 | 中华人民共和国住房和城乡建设部, 中华人民共和国国家质量监督检验检疫总局. 工程岩体分级标准: [S]. 北京: 中国计划出版社, 2014. |
Ministry of Housing and Urban-Rural Development of the People's Republic of China, General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China. Standard for engineering classification of rock mass: [S]. Beijing: China Planning Press. 2014. | |
15 | Mayer J M, Stead D. A comparison of traditional, step-path, and geostatistical techniques in the stability analysis of a large open pit[J]. Rock Mechanics and Rock Engineering, 2017, 50(4): 927-949. |
16 | Eivazy H, Esmaieli K, Jean R. Modelling geomechanical heterogeneity of rock masses using direct and indirect geostatistical conditional simulation methods[J]. Rock Mechanics and Rock Engineering, 2017, 50(12): 3175-3195. |
17 | Egaña M, Ortiz J M. Assessment of RMR and its uncertainty by using geostatistical simulation in a mining project[J]. Journal of GeoEngineering, 2013, 8(3): 83-90. |
18 | Pinheiro M, Vallejos J, Miranda T, et al. Geostatistical simulation to map the spatial heterogeneity of geomechanical parameters: a case study with rock mass rating[J]. Engineering Geology, 2016, 205: 93-103. |
19 | Griffiths D V, Huang J S, Fenton G A. Influence of spatial variability on slope reliability using 2-D random fields[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2009, 135(10): 1367-1378. |
20 | Pinheiro M, Emery X, Miranda T, et al. Modelling geotechnical heterogeneities using geostatistical simulation and finite differences analysis[J]. Minerals, 2018, 8(2): 52. |
21 | 胡小荣, 唐春安. 岩土力学参数随机场的空间变异性分析及单元体力学参数赋值研究[J]. 岩石力学与工程学报, 2000, 19(1): 59-63. |
Hu Xiao-rong, Tang Chun-an. Spatial variation analysis on the random field of mechanical parameters for rock and soil and the parameter estimation of elements[J]. Chinese Journal of Rock Mechanics and Engineering, 2000, 19(1): 59-63. | |
22 | Hoek E, Brown E T. Empirical strength criterion for rock masses[J]. Journal of the Geotechnical Engineering Division, 1980, 106(9): 1013-1035. |
23 | Hoek E, Wood D, Shah S. A modified Hoek-Brown criterion for jointed rock masses[C]// Proceedings of the Rock Characterization, Symposium of ISRM. London: British Geotechnical Society, 1992: 209–214. |
24 | 朱合华, 张琦, 章连洋. Hoek-Brown强度准则研究进展与应用综述[J]. 岩石力学与工程学报, 2013, 32(10): 1945-1963. |
Zhu He-hua, Zhang Qi, Zhang Lian-yang. Review of research progresses and applications of Hoek-Brown strength criterion[J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32(10): 1945-1963. | |
25 | 杨天鸿, 孙东东, 胥孝川, 等.新疆大型露天矿绿色安全高效开采存在问题及对策[J]. 采矿与安全工程学报, 2022, 39(1): 1-12. |
Yang Tian-hong, Sun Dong-dong, Xu Xiao-chuan, et al. Problems and countermeasures in green,safe and efficient mining of large-scale open-pit mines in Xinjiang[J]. Journal of Mining and Safety Engineering, 2022, 39(1): 1-12. | |
26 | 刘飞跃, 刘一汉, 杨天鸿, 等. 基于岩芯图像深度学习的矿山岩体质量精细化评价[J]. 岩土工程学报, 2021, 43(5): 968-974. |
Liu Fei-yue, Liu Yi-han, Yang Tian-hong, et al. Meticulous evaluation of rock mass quality in mine engineering based on machine learning of core photos[J]. Chinese Journal of Geotechnical Engineering, 2021, 43(5): 968-974. | |
27 | Bieniawski Z T. Engineering rock mass classifications: a complete manual for engineers and geologists in mining, civil, and petroleum engineering[M]. New York: Wiley, 1989. |
28 | Hoek E, Brown E T. Practical estimates of rock mass strength[J]. International Journal of Rock Mechanics and Mining Sciences, 1997, 34(8): 1165-1186. |
29 | Zheng W B, Zhuang X Y, Tannant D D, et al. Unified continuum/discontinuum modeling framework for slope stability assessment[J]. Engineering Geology, 2014, 179: 90-101. |
