Risk-Oriented Crowd Navigation Strategy Based on Deep Reinforcement Learning

doi:10.12068/j.issn.1005-3026.2025.12.20240094

Abstract

Abstract:

To improve robot freezing and suboptimal performance of traditional navigation methods in the presence of dynamic obstacles， a navigation method based on deep reinforcement learning was proposed. The core of this method lies in its risk perception module and path selection module. The risk perception module calculated the collision probability between the robot and nearby dynamic obstacles in real time， allowing the robot to prioritize avoiding more hazardous obstacles. Concurrently， the path selection module evaluated the “passing ability” of the robot in surrounding areas in real time， guiding the robot to choose safer paths. In comparison experiments with a deep reinforcement learning method that lacks these modules， the proposed method achieved the highest navigation success rate in all simulation test environments， with an improvement rate of up to 11%.

Key words: deep reinforcement learning, crowd navigation, dynamic obstacle avoidance, robot freezing, risk perception, path selection

CLC Number:

TP 181

Yang JIANG, Tian-xiang ZHAO, Ruo-huai SUN, Lei WANG. Risk-Oriented Crowd Navigation Strategy Based on Deep Reinforcement Learning[J]. Journal of Northeastern University(Natural Science), 2025, 46(12): 1-8.

Figures/Tables 16

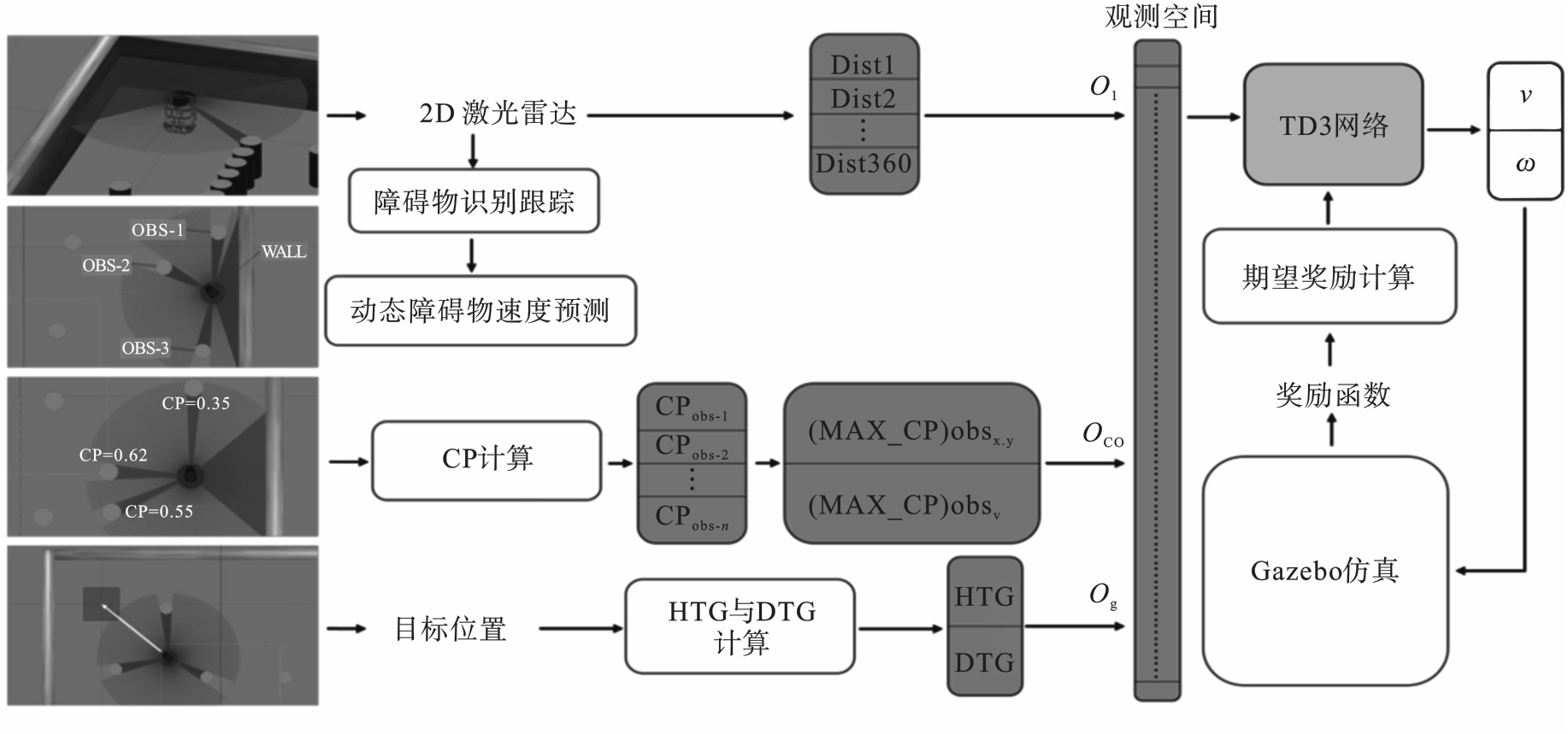

Fig.1 System structure diagram

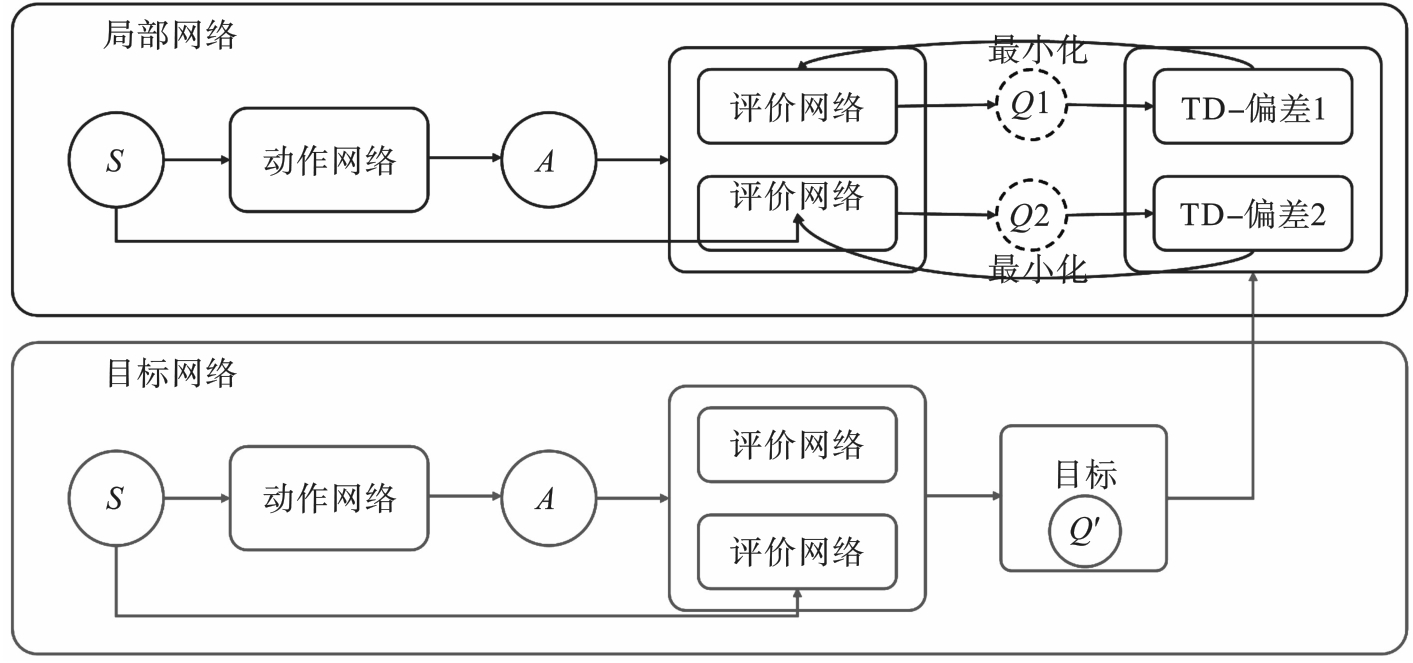

Fig.2 TD3 network architecture

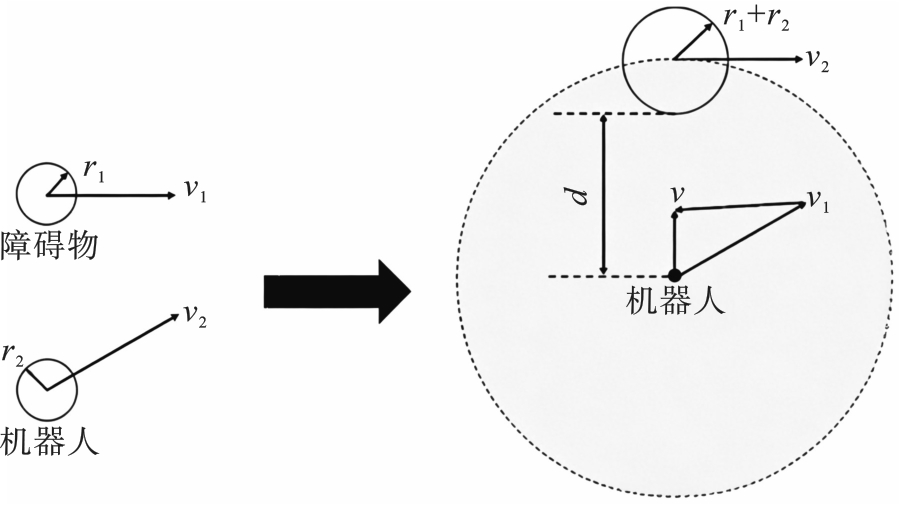

Fig.3 Time-based collision probability

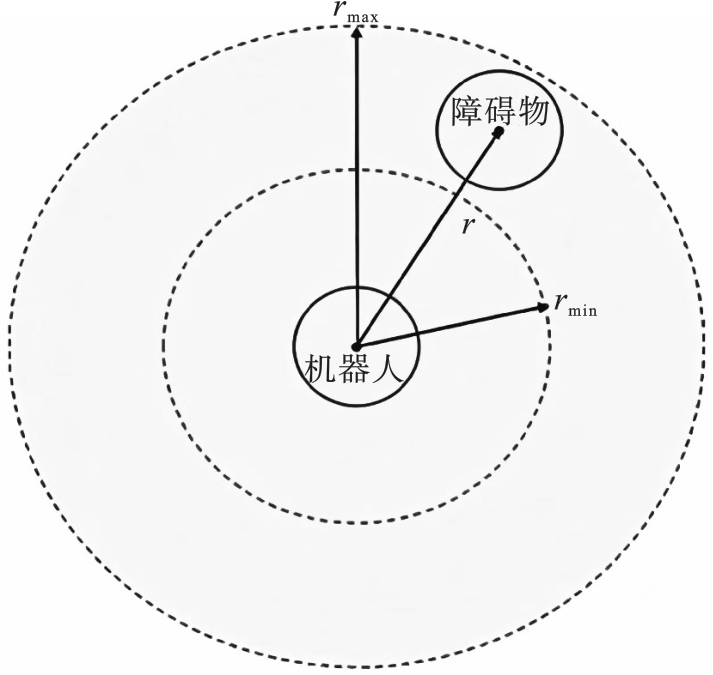

Fig.4 Distance-based collision probability

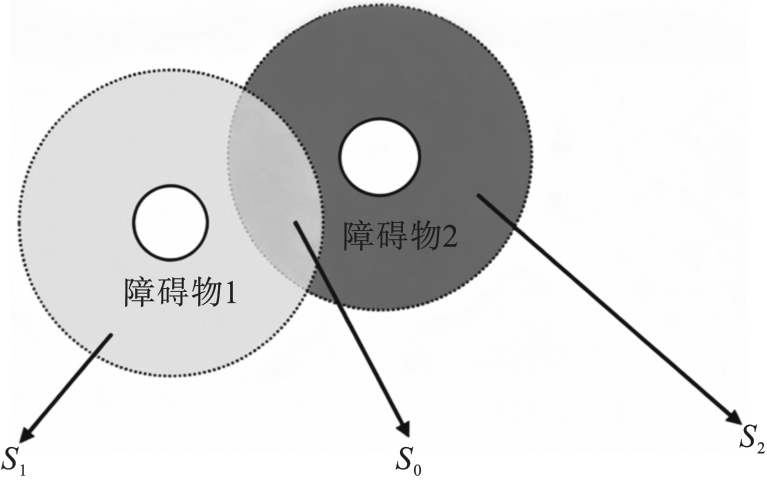

Fig.5 Intersection over union

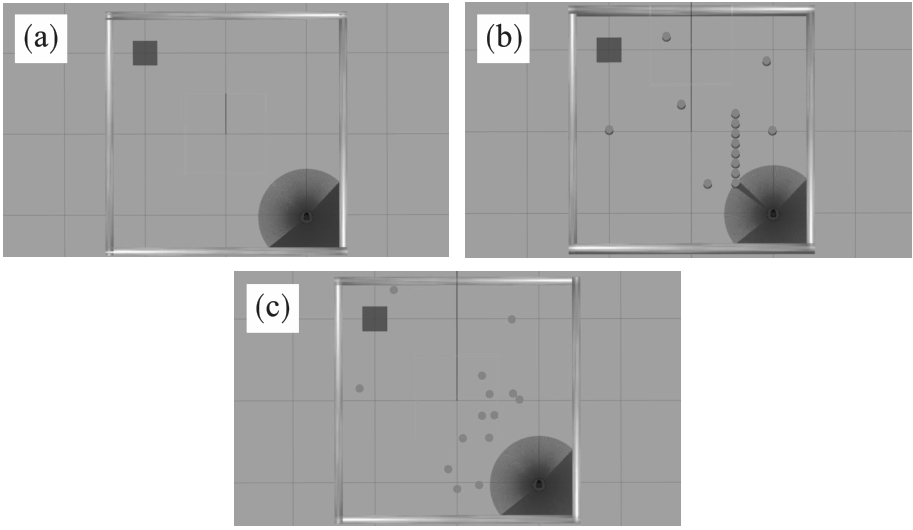

Fig.6 Algorithm training environment

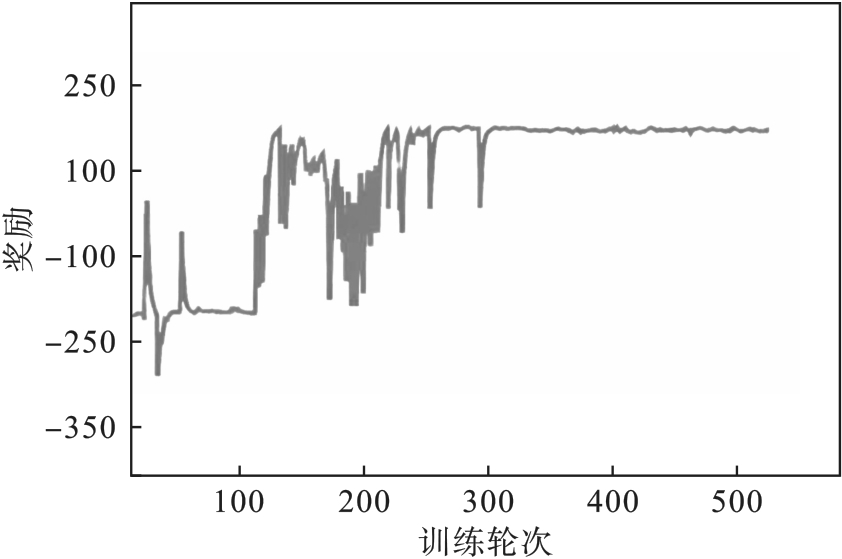

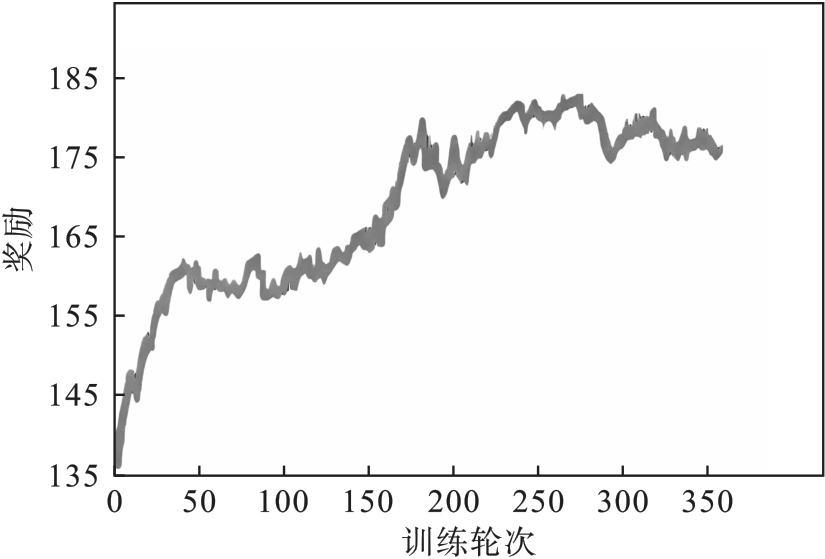

Fig.7 Obstacle-free training process

Fig.8 Training process with static obstacles

Fig.9 Training process with dynamic obstacles

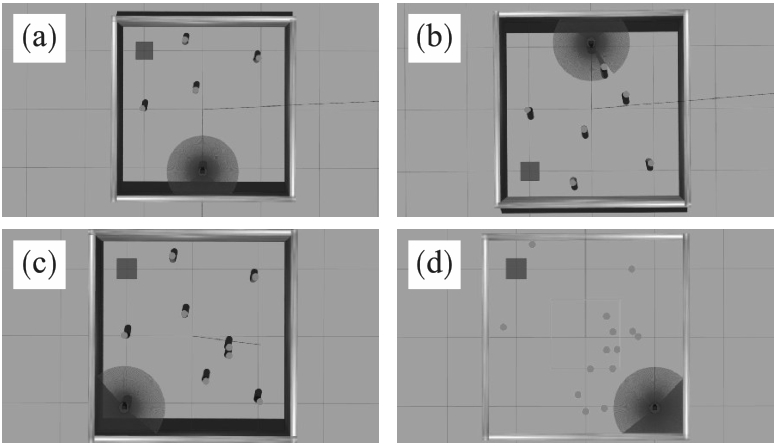

Fig.10 Testing environment with dynamic obstacles

Fig.11 Average time to arrival comparison in low-speed environments

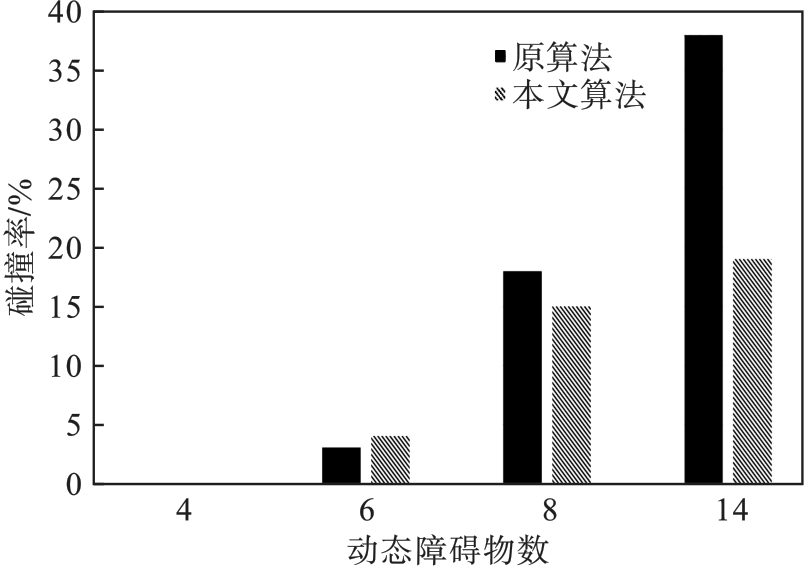

Fig.12 Collision rate comparison in low-speed environments

Fig.13 Obstacle avoidance success rate comparison in low-speed environments

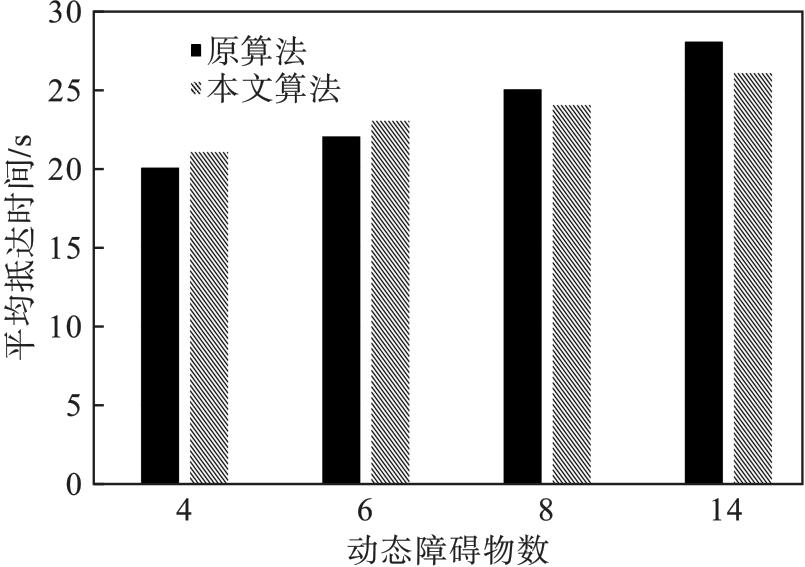

Fig.14 Average time to arrival comparison in high-speed environments

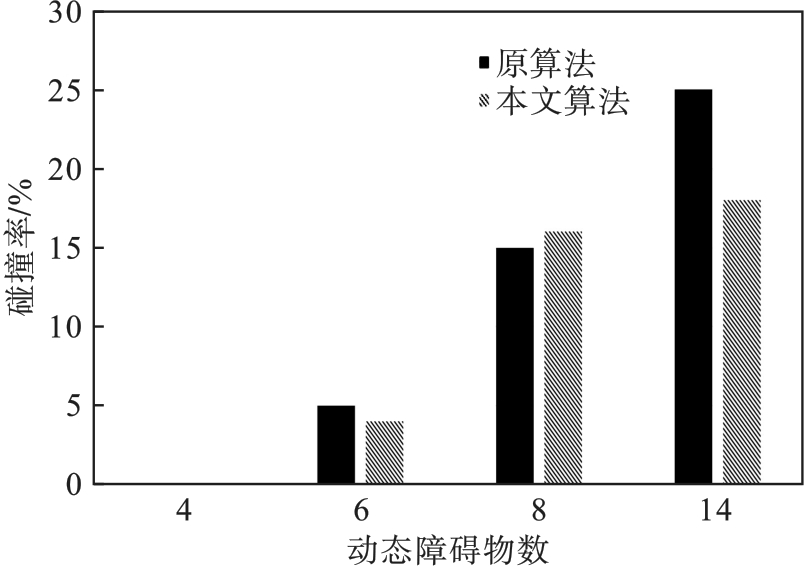

Fig.15 Average collision rate comparison in high-speed environments

Fig.16 Obstacle avoidance success rate comparison in high-speed environments
