Flow Stress Model for V-N Microalloyed Steel Under Multi-pass Deformation Conditions

doi:10.12068/j.issn.1005-3026.2025.20230261

Abstract

Abstract:

In order to establish the flow stress models of V-N microalloyed steel under multi-pass deformation conditions， multi-pass compression experiments were conducted on experimental steel using a DIL805 thermal expansion phase transformation tester， and the stress-strain curves were plotted. The flow stress of experimental steel was simulated with high accuracy by Hensel-Spittel model under single-pass deformation conditions. When the deformation temperature and strain rate remained constant， genetic algorithm was used to optimize the parameters of the Hensel-Spittel model under multi-pass deformation conditions. The support vector machine（SVM） algorithm was used to establish the corresponding relationships between the static recrystallization volume fraction before deformation， austenite grain size before deformation， dislocation density， deformation temperature， strain rate and the model parameters. The results show that the predicted flow stress under multi-pass deformation conditions is in good agreement with the measured values. The research results can provide strong support for accurately describing the flow stress of V-N microalloyed steel under multi-pass deformation conditions.

Key words: flow stress, genetic algorithm, static recrystallization, dislocation density, support vector machine algorithm

CLC Number:

TG 142.1

Xiao-guang ZHOU, Jin-fan ZHAO, Shan JIANG, Guang-ming CAO. Flow Stress Model for V-N Microalloyed Steel Under Multi-pass Deformation Conditions[J]. Journal of Northeastern University(Natural Science), 2025, 46(2): 35-41.

Figures/Tables 12

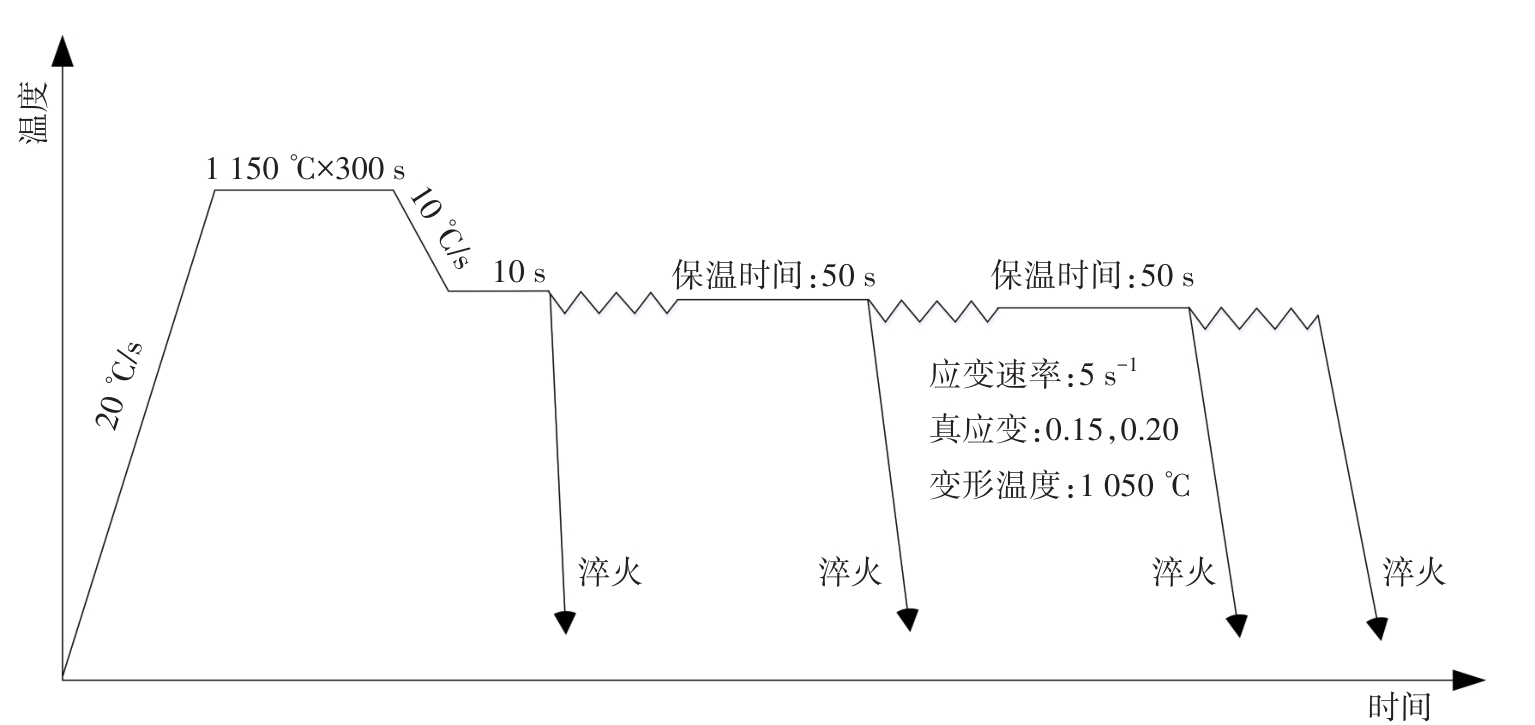

Fig. 1 Schematic diagram of the austenite quenching experiment

Table 1 Regression parameters of the flow stress model

a₀	a₁	a₂	a₃	a₄
8 119.545	-2.567	0.098	0.402	-1.171

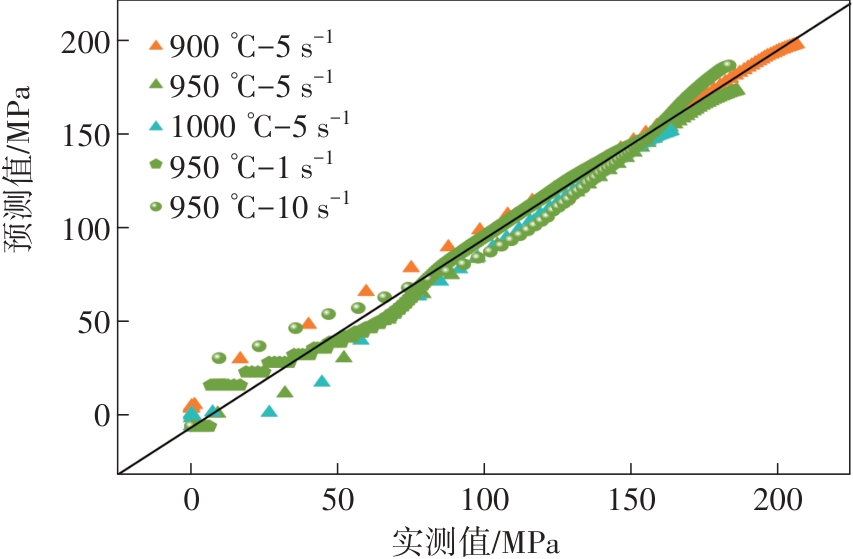

Fig. 2 Comparison of flow stress predicted by the Hensel-Spittel model with measured values

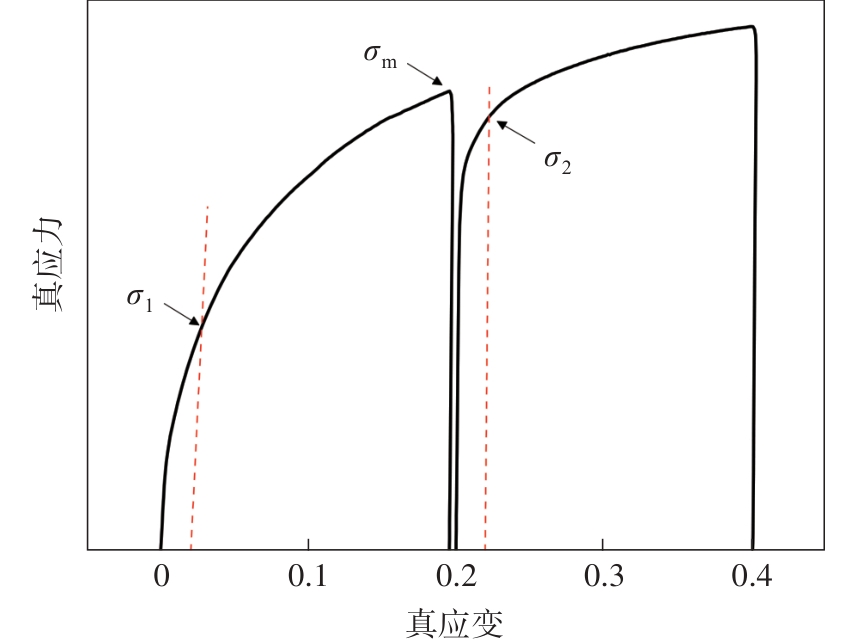

Fig. 3 Schematic diagram for calculating static softening rate

Table 2 Parameters of t0.5 equation

A	n₁	n₂	n₃	Q/（J·mol^-1）
6.58×10^-34	-12.27	-1.058	3.720 97	423 057

Fig. 4 Comparison of static recrystallization volume fraction

Fig. 5 Austenite microstructure of experimental steel before deformation in each pass

Fig. 6 Comparison of predicted flow stress adopting genetic algorithm optimization and measured values

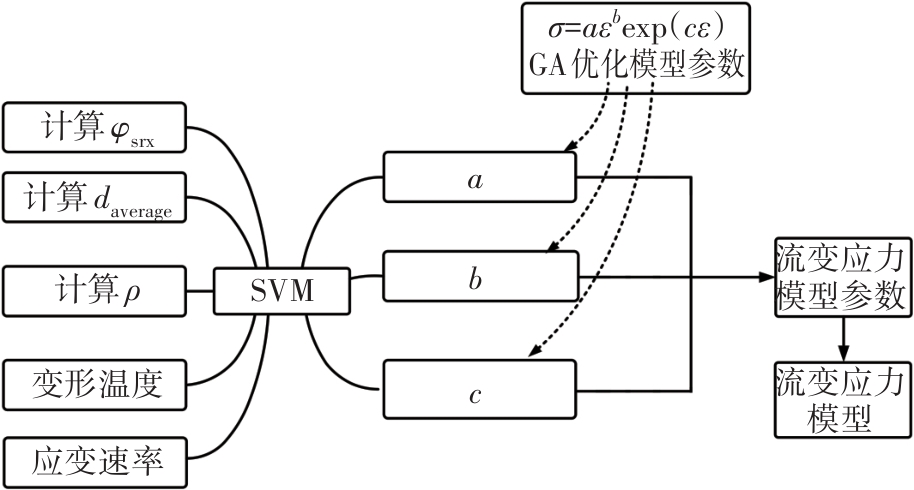

Fig. 7 Flow chart of predicting flow stress adopting SVM algorithm

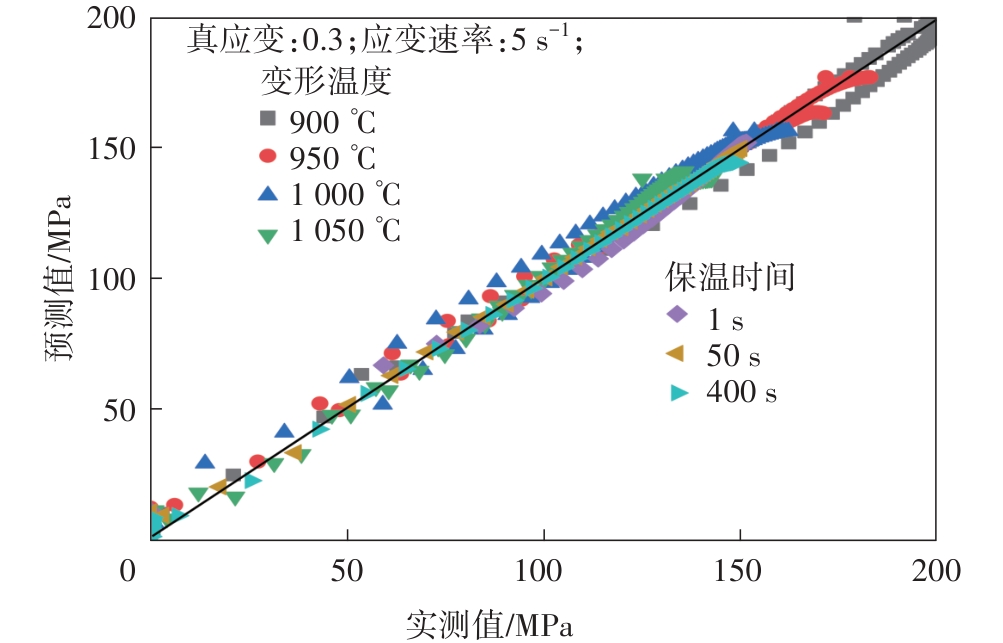

Fig. 8 Comparison of predicted flow stress and measured values under double-pass deformation

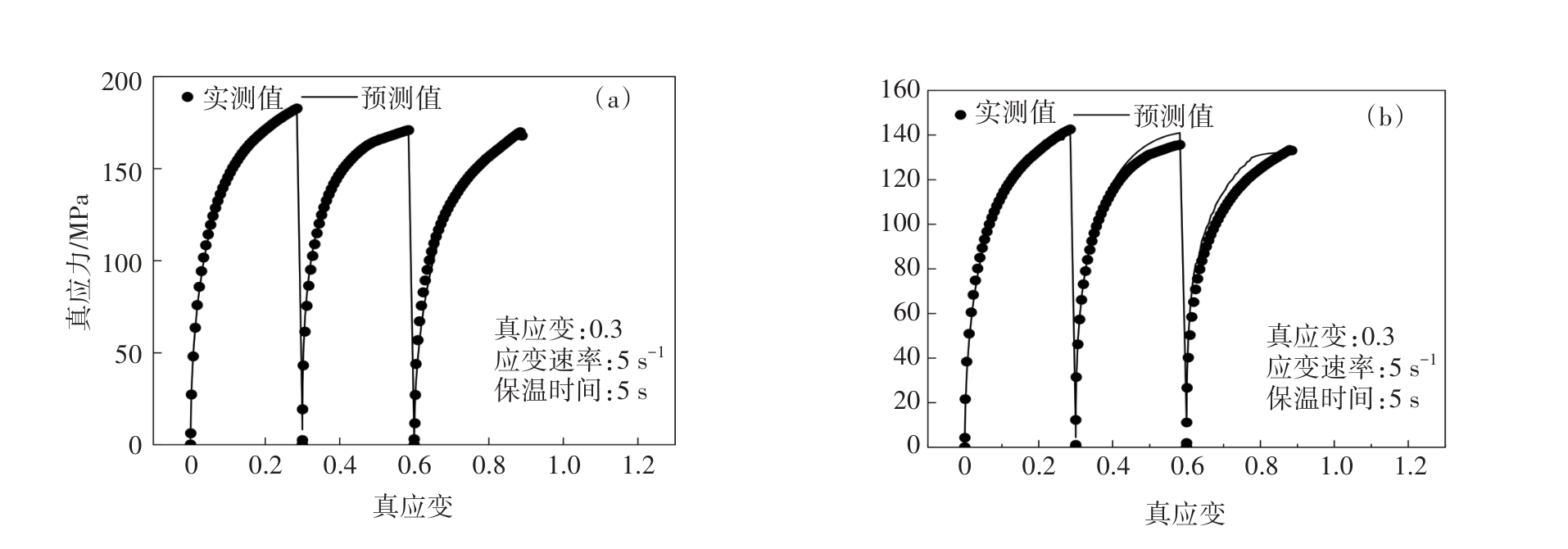

Fig. 9 Comparison of predicted flow stress and measured values for three passes deformation

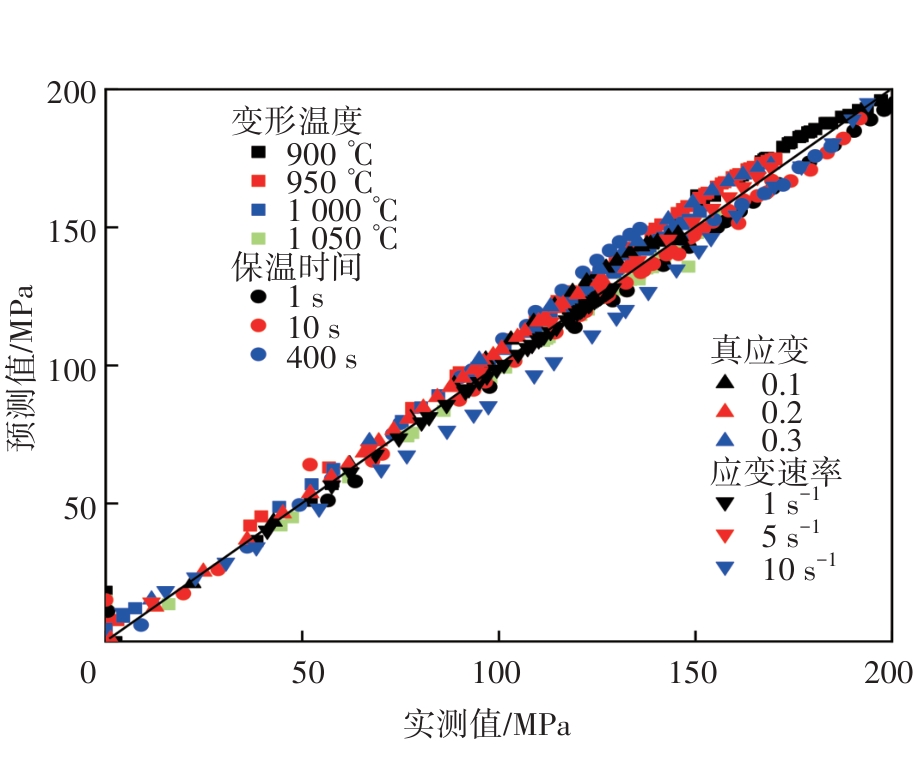

Fig. 10 Comparison of predicted flow stress and measured values for the 3rd deformation

References 18

1	Zhao B C， Zhao T， Huang L， et al. Effect of nitrogen content on the static recrystallization and precipitation behaviors of vanadium-titanium microalloyed steels［J］. International Journal of Materials Research， 2024， 115（6）：411-420.
2	Li N， Li L X， Wang C F， et al. Study of precipitation in the heavy plate of VN micro-alloyed HSLA steel［J］. Advanced Materials Research， 2013， 712/713/714/715： 65-69.
3	Chumanov I V， Sedukhin V V. Effect of vanadium alloying on the phase composition of super duplex steel［J］. Russian Metallurgy（Metally）， 2023（8）：1165-1169.
4	Kawamura M， Ogawa T， Sun F， et al. Evaluation of the tensile properties of vanadium-added steels with different ferrite and pearlite hardness ratios［J］. Journal of Materials Engineering and Performance， 2024， 33（13）：6816-6824.
5	Ashtiani H R R， Shahsavari P. Constitutive modeling of flow behavior of precipitation-hardened AA7022-T6 aluminum alloy at elevated temperature［J］. Transactions of Nonferrous Metals Society of China， 2020， 30（11）： 2927-2940.
6	Gong B， Duan X W， Liu J S， et al. A physically based constitutive model of as-forged 34CrNiMo6 steel and processing maps for hot working［J］. Vacuum， 2018， 155： 345-357.
7	Phatiwach V， Angkurarach L， Juijerm P. Effect of intercritical annealing on deformation behavior and flow stress predictive models of AISI 8620 steel［J］. Journal of Materials Science， 2023， 58（33）： 13488-13501.
8	Chalimba S A J， Mostert R J， Stumpf W E， et al. Modeling of high-temperature flow stress of VN and Nb-Ti microalloyed steels during hot compressive deformation［J］. Journal of Materials Engineering and Performance， 2020， 29（1）： 330-341.
9	杨浩，周晓光，刘振宇，等. EH36船板钢的动态再结晶和变形抗力［J］. 东北大学学报（自然科学版）， 2012， 33（4）： 504-508.
	Yang Hao， Zhou Xiao-guang， Liu Zhen-yu， et al. Dynamic recrystallization and deformation resistance of EH36 ship plate steel［J］. Journal of Northeastern University （Natural Science）， 2012， 33（4）： 504-508.
10	汪雅婷，黎俊良，袁楷峰，等. 基于GA改进BP神经网络预测热变形流变应力模型的建立［J］. 材料工程， 2022， 50（6）： 170-177.
	Wang Ya-ting， Li Jun-liang， Yuan Kai-feng， et al. Establishment of hot deformation flow stress prediction model based on GA improved BP neural network［J］. Journal of Materials Engineering， 2022， 50（6）： 170-177.
11	肖罡，杨钦文，许征兵，等. 基于克里金方法的6013铝合金多道次降温热压缩变形行为建模［J］. 机械工程材料， 2016， 40（3）： 89-92.
	Xiao Gang， Yang Qin-wen， Xu Zheng-bing， et al. Modeling for multi-pass temperature-drop hot compression behavior of 6013 aluminum alloy based on Kriging method［J］. Materials for Mechanical Engineering， 2016， 40（3）： 89-92.
12	Chen R C， Zeng J， Yao G C， et al. Flow-stress model of 300M steel for multi-pass compression［J］. Metals， 2020， 10（4）：438-453.
13	冯耀耀，王庆娟，杜忠泽，等. 曲轴用非调质钢49MnVS3的变形抗力模型研究［J］. 热加工工艺， 2018， 47（18）： 45-48.
	Feng Yao-yao， Wang Qing-juan， Du Zhong-ze， et al. Study on deformation resistance model of 49MnVS3 non-quenched and tempered steel for crankshaft［J］. Hot Working Technology， 2018， 47（18）： 45-48.
14	Elwazri A M， Wanjara P， Yue S. Metadynamic and static recrystallization of hypereutectoid steel［J］. ISIJ International， 2003， 43（7）： 1080-1088.
15	Stewart G R， Jonas J J. Static and dynamic strain aging at high temperatures in 304 stainless steel［J］. ISIJ International， 2004， 44（7）： 1263-1272.
16	周晓光. 含Nb钢FTSR热轧板带组织性能预测的研究［D］. 沈阳：东北大学，2007.
	Zhou Xiao-guang. Research on prediction of microstructure and mechanical properties of hot rolled Nb bearing steels in FTSR ［D］. Shenyang： Northeastern University， 2007.
17	Cho S H， Kang K B， Jonas J J. Mathematical modeling of the recrystallization kinetics of Nb microalloyed steels［J］. ISIJ International， 2001， 41（7）： 766-773.
18	李治华，许云波，吴迪，等. C-Mn钢高温变形过程再结晶及位错密度的研究［J］. 钢铁研究， 2004， 32（4）： 35-38.
	Li Zhi-hua， Xu Yun-bo， Wu Di， et al. Investigation on recrystallization and dislocation density in high temperature deformed of C-Mn steel［J］. Research on Iron and Steel， 2004， 32（4）： 35-38.
