Prediction Model of Blasting Fragmentation Based on ACO-BP Neural Network and Its Application

doi:10.12068/j.issn.1005-3026.2025.12.20240122

Abstract

Abstract:

Blasting fragmentation is governed by the combined interplay of rock properties， blasting parameters， and explosive characteristics. Its accurate prediction is the key to achieving the coordinated optimization of precision blasting in mines and energy consumption during mining and processing. To improve prediction accuracy， a blasting fragmentation prediction model was constructed using ant colony optimization （ACO） and a back propagation （BP） neural network， and the key influencing factors of blasting fragmentation were identified. Based on the Sijiaying open pit mine， a blasting case database was established to train the model and improve prediction accuracy， and the weights of the influencing factors were analyzed. Results show that ACO significantly improves model performance. Among the influencing factors of blasting fragmentation， blasthole spacing has the highest weight， and minimum burden has the lowest weight. Blasting parameters exhibit optimal ranges for blasting fragmentation， but single-parameter adjustments cannot sustainably improve blasting fragmentation. This model provides an effective means and theoretical basis for inverse optimization of blasting design based on blasting effect requirements.

Key words: ACO-BP neural network, precision blasting, blasting fragmentation, weight of influencing factor, inverse optimization

CLC Number:

TD 235

Qing-lei YU, Jia-wei WU, You LI, Jiang-yong PU. Prediction Model of Blasting Fragmentation Based on ACO-BP Neural Network and Its Application[J]. Journal of Northeastern University(Natural Science), 2025, 46(12): 116-123.

Figures/Tables 10

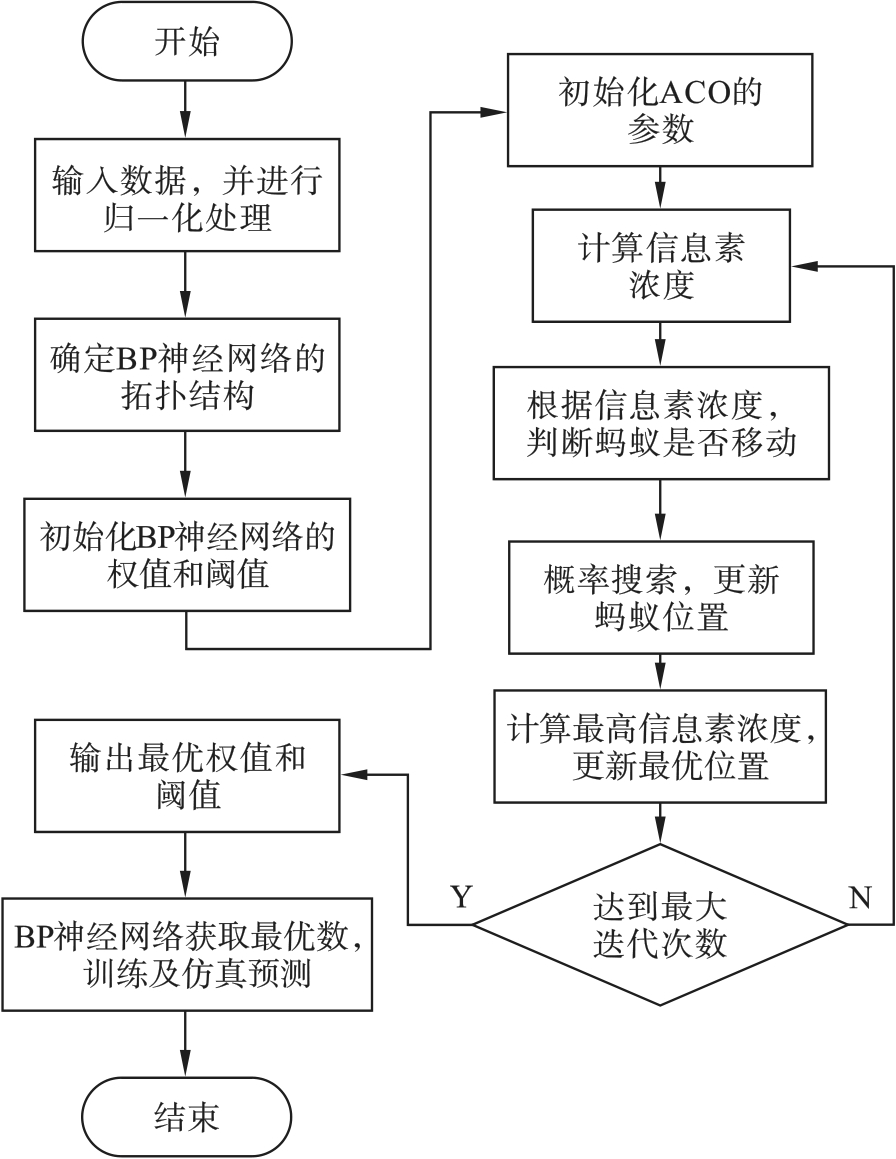

Fig.1 Flow chart of ACO-BP algorithm

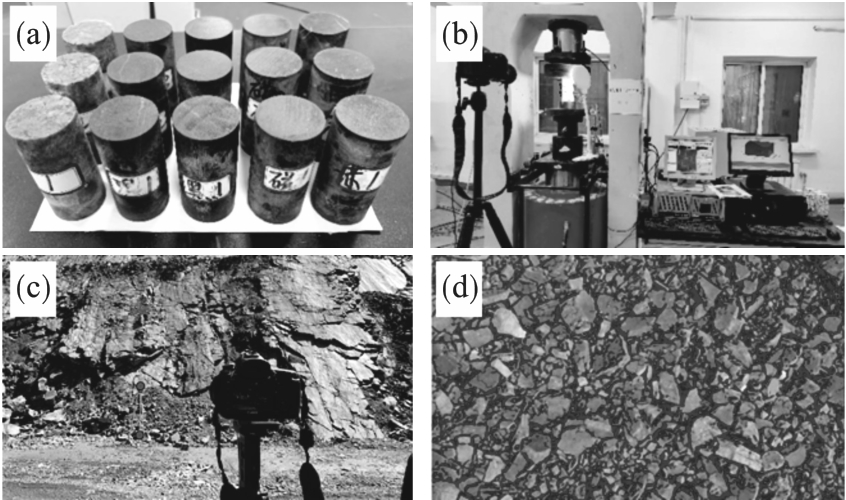

Fig.2 Acquisition mode of model input parameters

Table 1 Sample data of 11 groups from Sijiaying

样本	R_m	R_c	E	J_V	ρ	S/H	B/H	q	W/H	t/ms	v	ρ_d	d/cm
样本	MPa	MPa	GPa	条⋅m^-3	kg⋅m^-3	S/H	B/H	kg⋅t^-1	W/H	t/ms	m⋅s^-1	g⋅cm^-3	d/cm
1	16.88	175.57	72.53	8.06	3.32	0.57	0.43	0.27	0.29	42	4 500	1.2	25.25
2	17.44	177.90	74.16	7.33	2.69	0.28	0.17	0.24	0.11	42	4 500	1.2	39.52
3	17.44	177.90	74.16	8.43	2.69	0.28	0.17	0.30	0.11	42	4 500	1.2	36.22
4	18.44	198.64	65.46	3.62	2.72	0.21	0.16	0.24	0.11	42	4 500	1.2	34.31
5	15.42	192.46	73.84	3.43	2.74	0.33	0.28	0.25	0.11	42	4 500	1.2	45.82
6	11.33	155.33	55.35	1.84	2.64	0.40	0.30	0.30	0.20	42	4 500	1.2	22.02
7	13.43	183.05	65.37	6.62	2.67	0.27	0.20	0.38	0.13	42	4 500	1.2	30.79
8	17.01	172.02	70.45	5.29	2.65	0.41	0.35	0.16	0.12	42	4 000	1.0	16.11
9	15.37	196.53	66.61	3.33	2.62	0.33	0.28	0.25	0.11	42	4 000	1.0	27.71
10	20.87	218.36	75.66	5.82	2.69	0.47	0.35	0.30	0.12	42	4 500	1.2	19.55
11	12.54	169.36	56.33	3.86	3.38	0.47	0.35	0.29	0.12	42	4 000	1.0	36.18

Table 2 Prediction results and actual values of

测试数据编号	d/cm
测试数据编号	BP神经网络预测值	ACO-BP神经网络预测值	实际值
司家营1#	26.967 0	21.948 1	19.550 0
司家营2#	13.762 1	27.384 9	36.180 0
A矿山1#	33.742 7	28.935 4	29.000 0
A矿山2#	51.043 7	31.058 9	29.700 0
A矿山3#	29.873 5	29.831 2	29.300 0
B矿山1#	20.396 5	23.143 3	35.410 0
B矿山2#	24.891 9	23.876 9	22.840 0
B矿山3#	27.574 3	27.797 5	31.940 0
B矿山4#	27.774 7	24.536 2	21.790 0

Table 3 Index values of prediction results of different

评价指标	BP神经网络预测	ACO-BP神经网络预测
$e R M S$	12.112 6	5.390 2
$e M A P$ /%	31.399 2	11.993 5

Table 3 Index values of prediction results of different

评价指标	BP神经网络预测	ACO-BP神经网络预测
$e R M S$	12.112 6	5.390 2
$e M A P$ /%	31.399 2	11.993 5

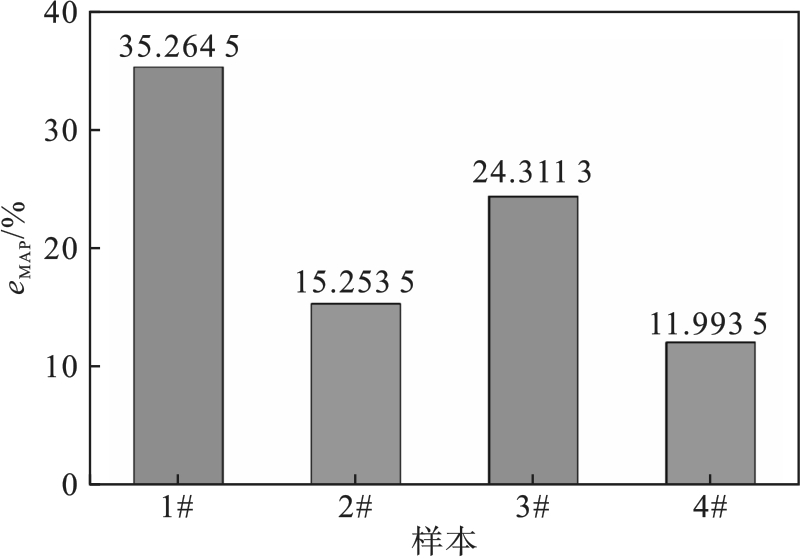

Fig.3 Prediction error of model under different training samples

Table 4 Weights from input layer to hidden layer

节点	w_i
节点	R_m	R_c	E	J_V	ρ	S/H	B/H	q	W/H	t	v	ρ_d
1	0.63	0.63	-5.36	-2.75	1.13	-1.59	-0.02	-0.27	-0.56	0.46	-1.72	-0.61
2	1.43	-0.47	2.54	5.27	1.88	0.97	-2.83	0.83	1.60	-2.88	-2.25	-6.90
3	2.25	0.07	-0.16	-2.99	1.50	4.96	0.28	1.28	-1.28	-1.76	-3.96	0.25
4	6.64	1.38	-1.14	-2.74	6.14	6.31	2.45	-3.82	1.59	-3.43	-2.75	-0.31
5	1.01	-0.36	-2.41	6.10	-3.44	4.21	5.57	2.05	0.11	0.53	-0.72	-1.09
6	0.53	3.26	0.14	-2.29	-2.15	-4.81	2.59	4.25	-0.42	0.13	-2.14	-0.86
7	0.32	0.88	-0.83	-2.42	-0.62	7.10	2.41	-5.22	0.88	2.52	0.64	-3.99

Table 5 Weights from hidden layer to output layer

隐含层节点	1	2	3	4	5	6	7
权值	0.409 6	0.060 0	0.143 6	-0.470 8	0.095 2	-0.355 3	-0.302 0

Table 6 Weights of each input parameter in prediction model

参数	R_m	R_c	E	J_V	ρ	S/H	B/H	q	W/H	t	v	ρ_d
权重	0.34	0.24	0.20	-0.28	0.19	0.37	0.32	-0.28	0.15	-0.08	-0.05	-0.12

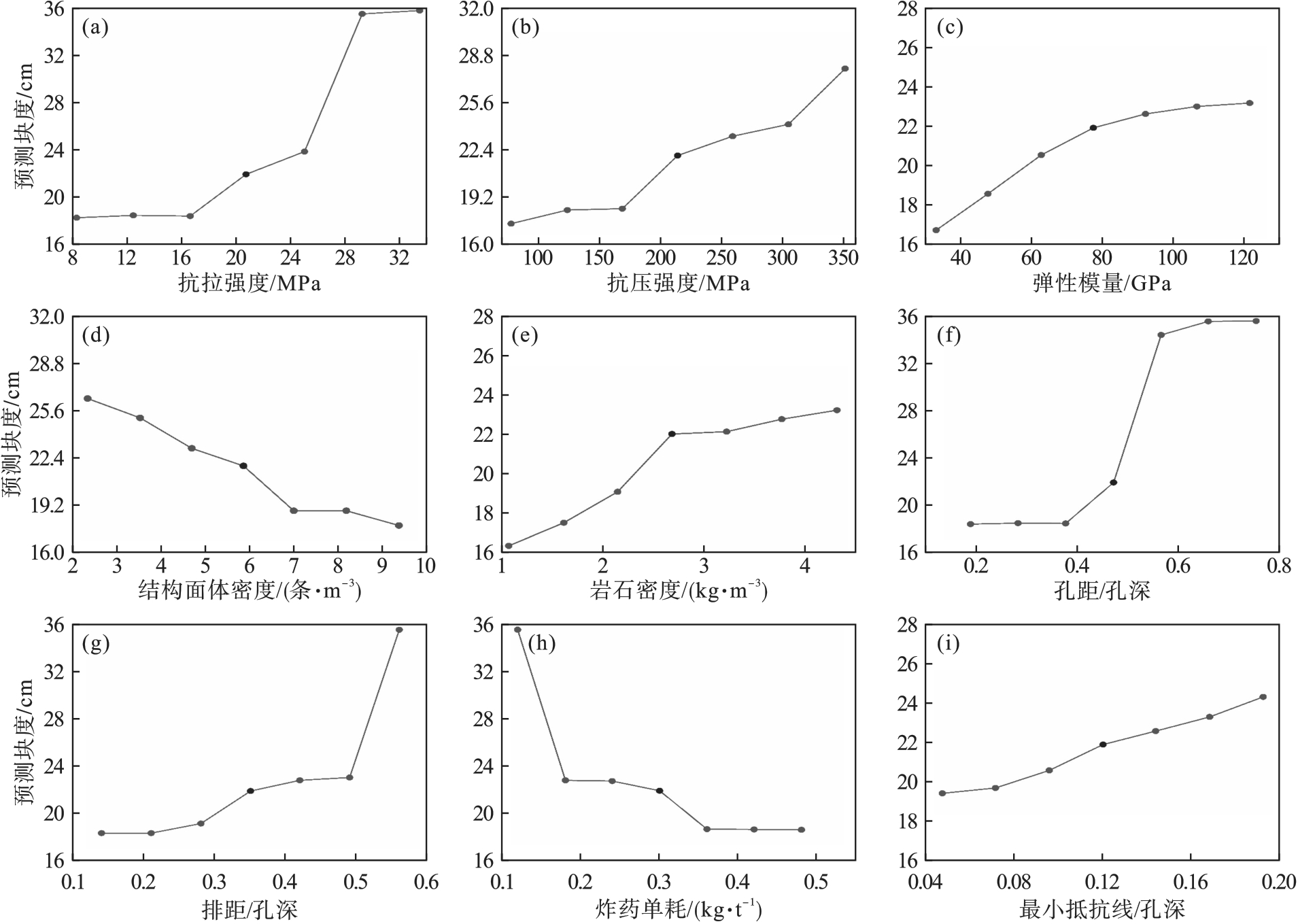

Fig.4 Influence of main parameters on blasting fragmentation
