Analysis of Self-Balancing Mechanism of Transmission Line Inspection Robot Based on Fuzzy PID Control

doi:10.12068/j.issn.1005-3026.2025.20230240

Abstract

Abstract:

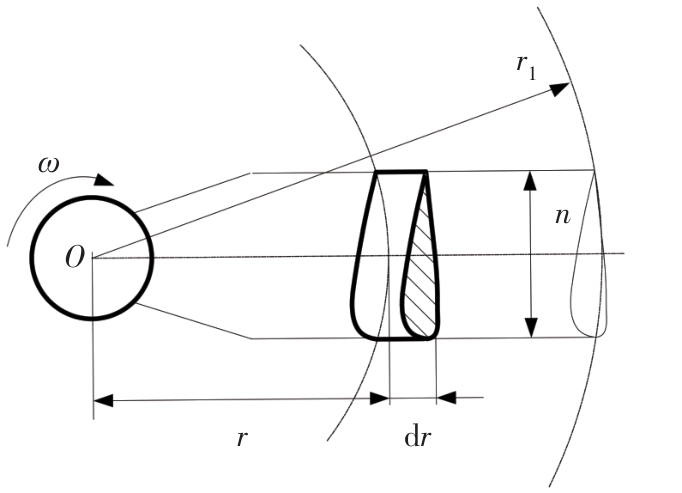

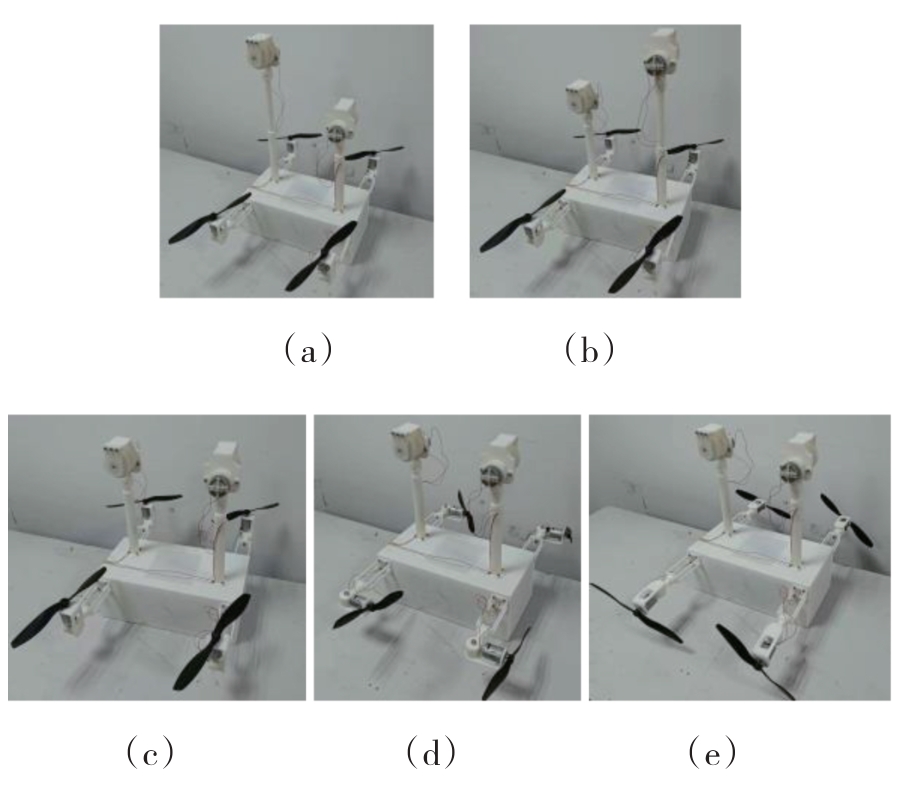

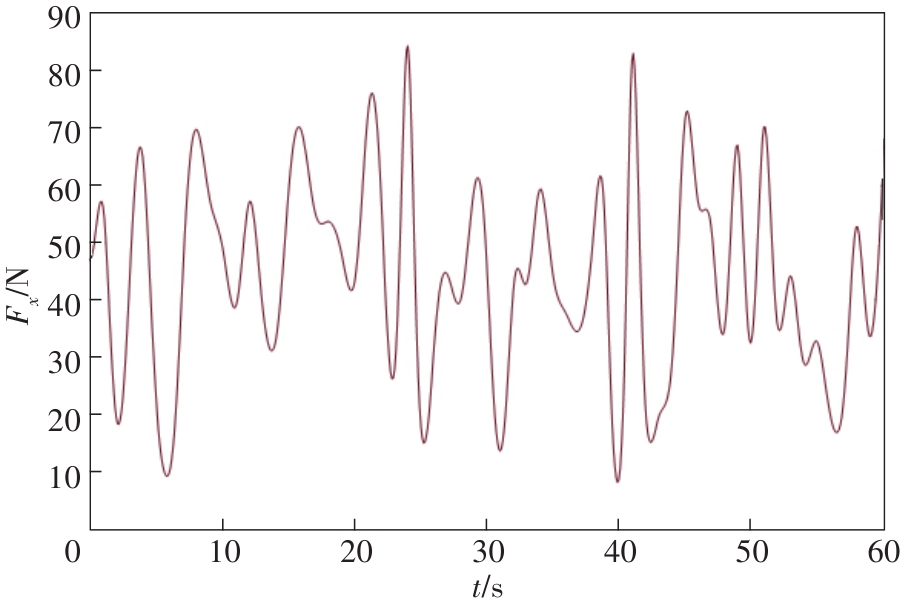

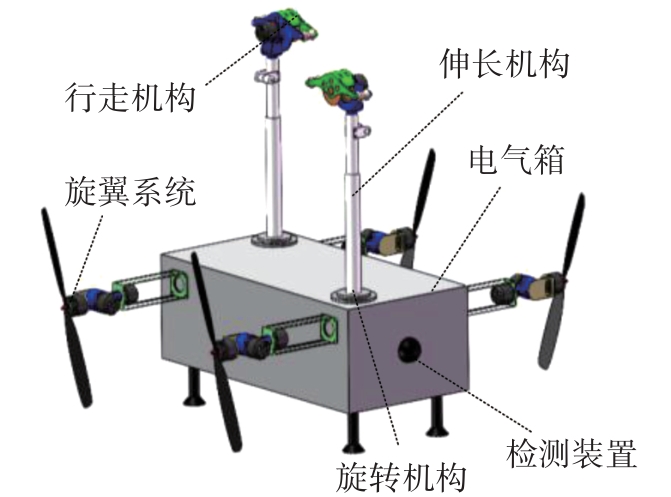

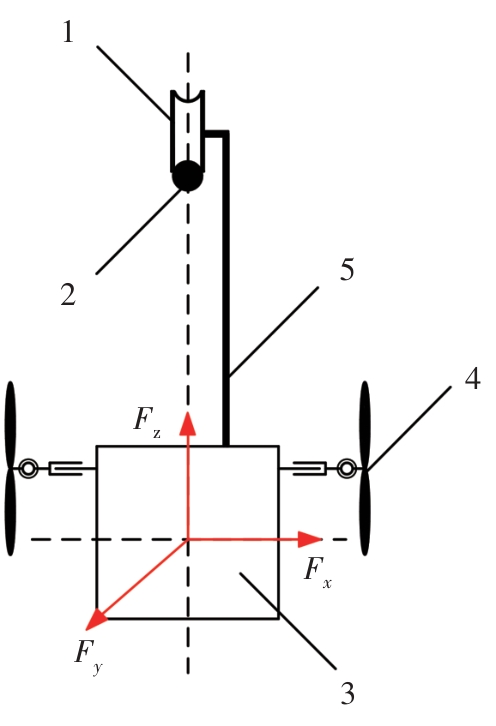

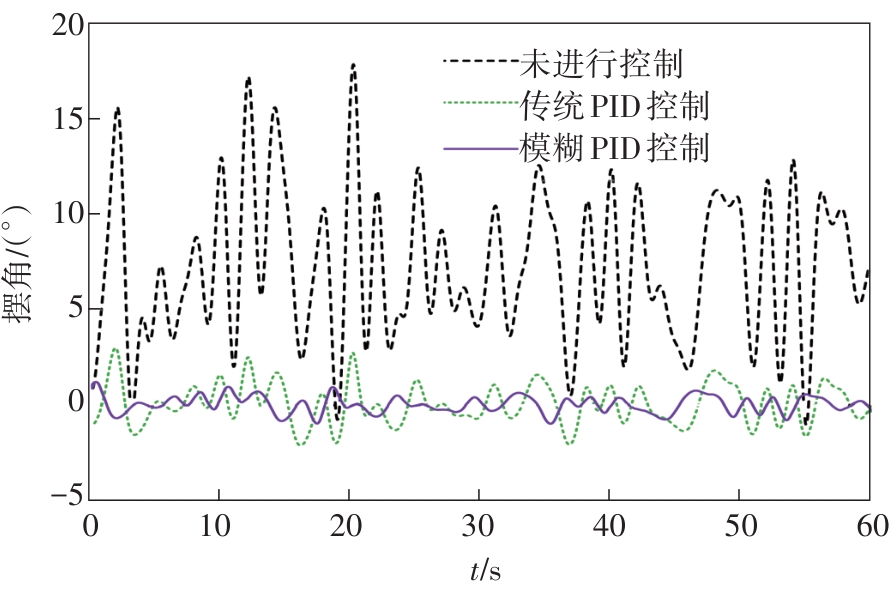

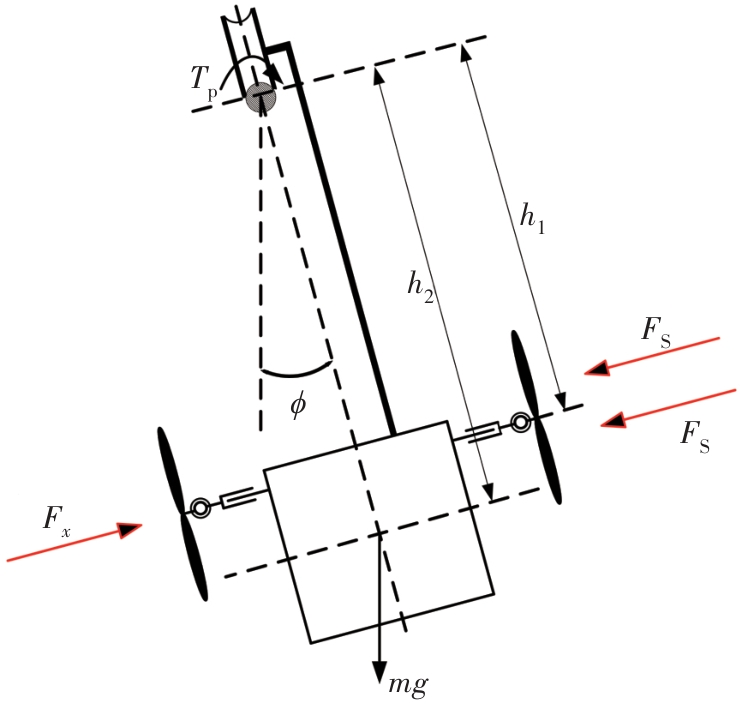

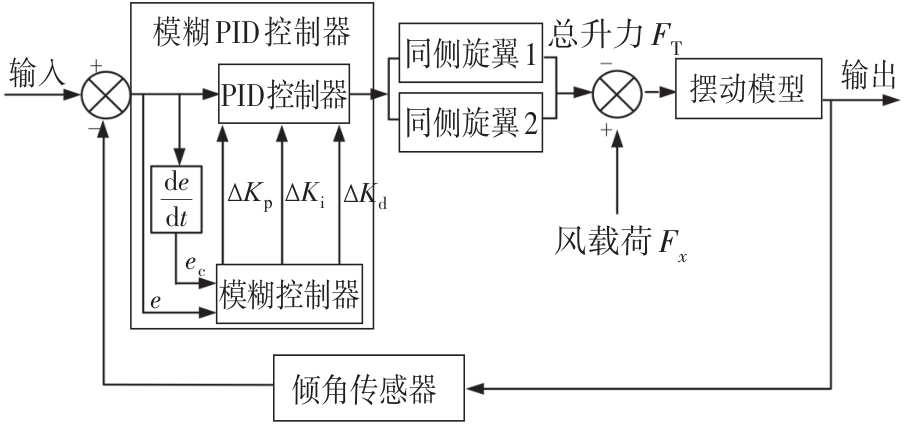

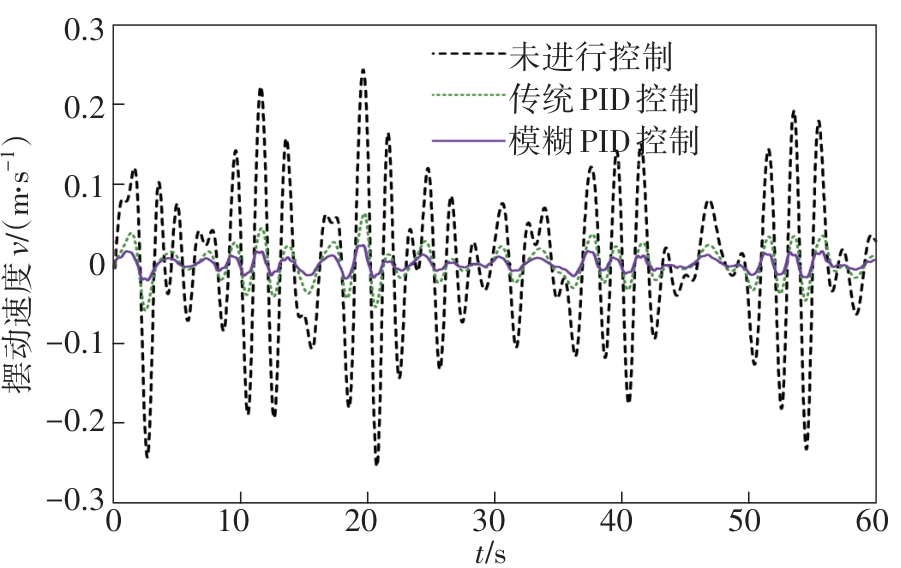

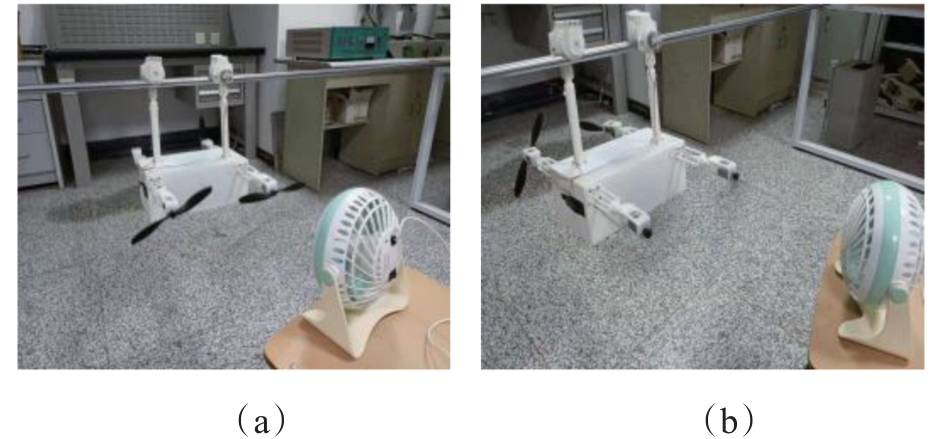

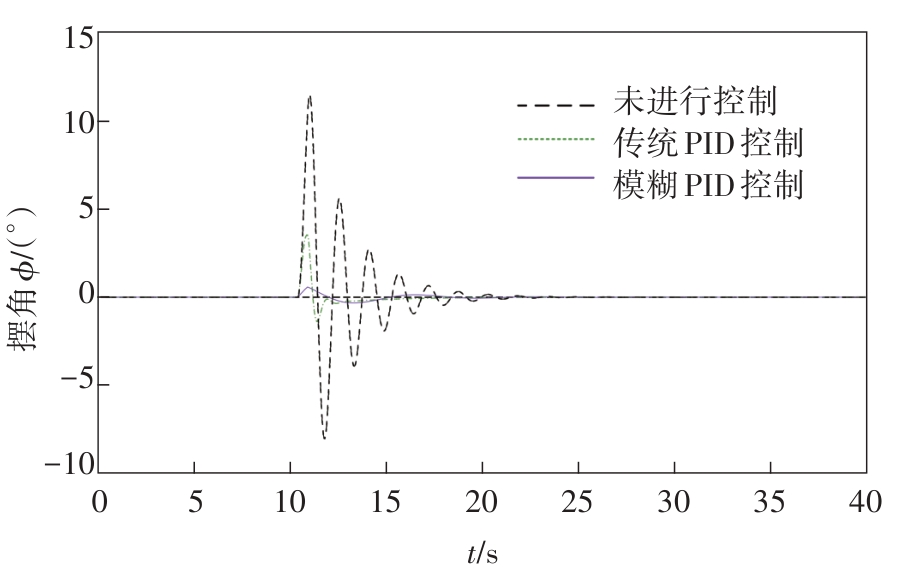

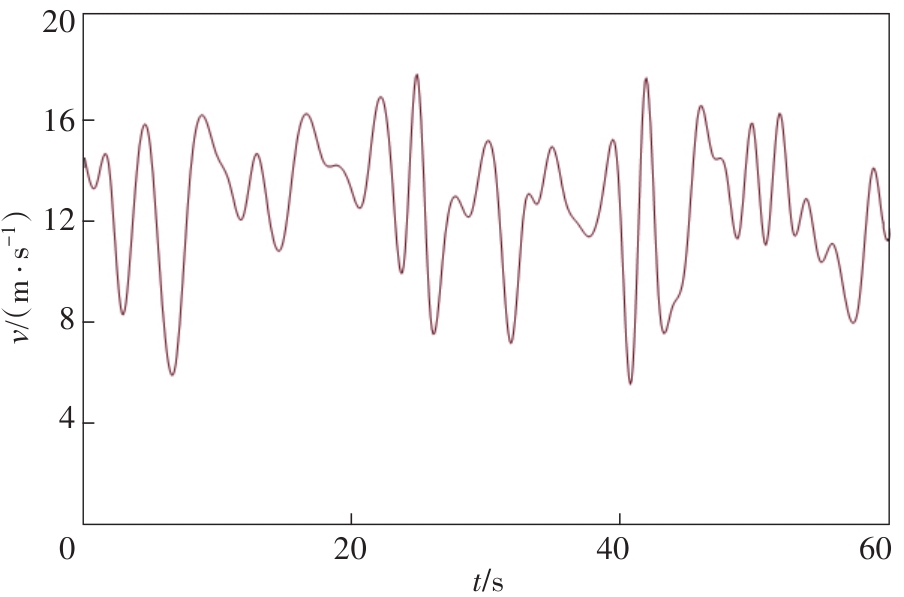

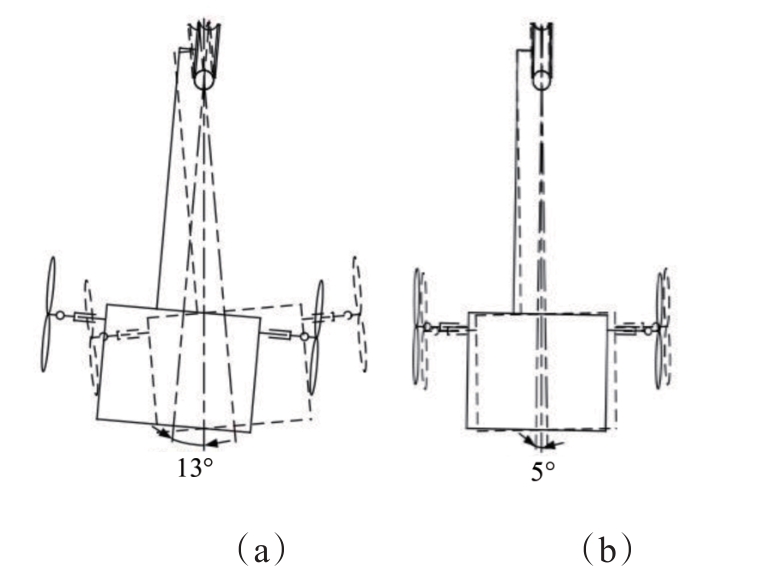

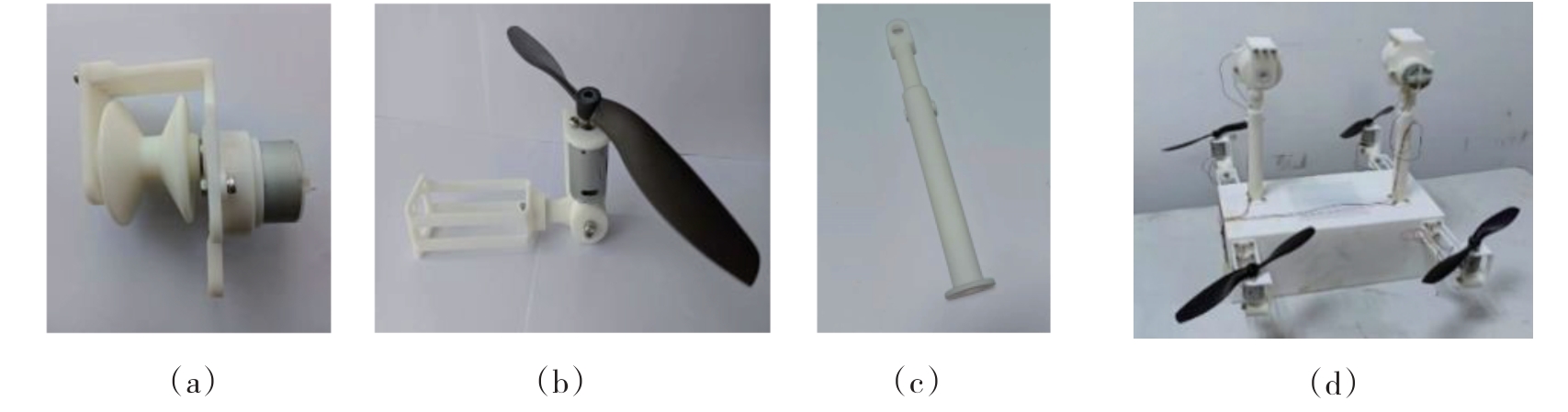

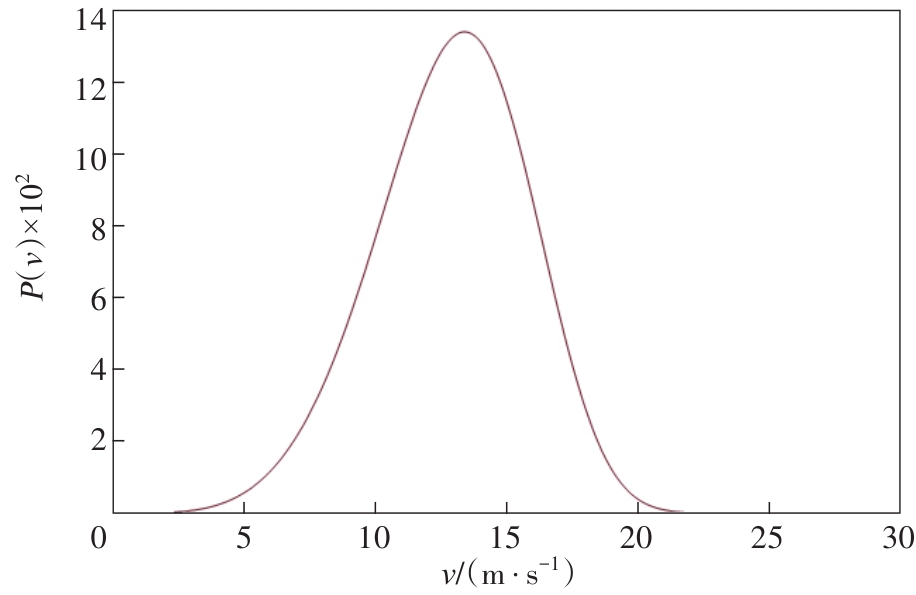

An inspection robot tends to swing under wind load，which may reduce the accuracy and reliability of inspection results. The balancing mechanism of the inspection robot under wind load was designed with reference to the rotor aircraft. Firstly，the transfer function between the voltage and speed of the motor was derived by using the dynamic equation of the motor，and the relationship between the lift generated by the rotor and the rotor speed was established by using the blade element method，so as to establish the relationship between the input voltage and the output lift of the balancing mechanism.Secondly，the influence of wind load in different directions on the working state of the inspection robot was analyzed， and the swing mathematical model of the inspection robot under transverse wind load was established. Finally，the fuzzy PID （proportional integral derivative） was applied to the control of the balancing mechanism， and the numerical simulation and prototype experiment of the inspection robot were carried out. The results showed that the designed balancing mechanism can effectively restrain the swing of the inspection robot under wind load.

Key words: inspection robot, wind load, swing model, balancing mechanism, fuzzy PID

CLC Number:

TH 133.3

Xiao-peng LI, Xue-dong LI, Xing FAN, Bing SHI. Analysis of Self-Balancing Mechanism of Transmission Line Inspection Robot Based on Fuzzy PID Control[J]. Journal of Northeastern University(Natural Science), 2025, 46(2): 76-84.

Figures/Tables 24

References 18

1	Yang L， Fan J F， Liu Y H，et al. A review on state-of-the-art power line inspection techniques［J］. IEEE Transactions on Instrumentation and Measurement，2020，69（12）： 9350-9365.
2	Montambault S， Pouliot N. About the future of power line robotics［C］// International Conference on Applied Robotics for the Power Industry. Montreal： IEEE，2010： 1-6.
3	洪展，吴功平，王伟，等. 风载荷下巡检机器人姿态检测与作业优化［J］. 机械设计与制造，2016（12）： 197-200.
	Hong Zhan， Wu Gong-ping， Wang Wei，et al. Attitude detection and operation optimization of inspection robot under wind load［J］. Machinery Design & Manufacture，2016（12）： 197-200.
4	孙翠莲，赵明扬，王洪光. 风荷载下越障巡检机器人结构参数优化［J］. 机械工程学报，2010，46（7）： 16-21.
	Sun Cui-lian， Zhao Ming-yang， Wang Hong-guang. Structural parameters optimization of a navigating inspection robot under the wind load［J］. Journal of Mechanical Engineering，2010，46（7）： 16-21.
5	Guo J， Zhang X D， Shen H M，et al. Research on wind load characteristics of bionic crawling inspection robot［C］// International Conference on Real-Time Computing and Robotics （RCAR）. Irkutsk：IEEE，2019： 385-390.
6	Qin X Y， Jia B， Lei J，et al. A novel flying-walking power line inspection robot and stability analysis hanging on the line under wind loads［J］. Mechanical Sciences，2022，13（1）： 257-273.
7	Jiang W， Yan Y， Li Q M，et al. Research on robust stabilization control of high-voltage power maintenance robot under wind load action［J］. Industrial Robot： The International Journal of Robotics Research and Application，2019，46（6）： 870-881.
8	Dian S Y， Wen X F， Dong H，et al. Development of a self-balance dual-arm robot for inspection of high-voltage power transmission lines［C］// International Conference on Mechatronics and Automation. Chengdu： IEEE， 2012： 2482-2487.
9	Wang W J， He T， Wang H S，et al. Balance control of a novel power transmission line inspection robot［C］// International Conference on Robotics and Biomimetics （ROBIO）. Zhuhai： IEEE， 2015： 1882-1887.
10	Wang Y G， Yu H D， Xu J K. Design and simulation on inspection robot for high-voltage transmission lines［J］. Applied Mechanics and Materials，2014，615： 173-180.
11	Zhao T， Chen Y， Dian S Y，et al. General type-2 fuzzy gain scheduling PID controller with application to power-line inspection robots［J］. International Journal of Fuzzy Systems，2020，22（1）： 181-200.
12	Pussente G A N， de Aguiar E P， Marcato A L M，et al. UAV power line tracking control based on a type-2 fuzzy-PID approach［J］. Robotics，2023，12（2）： 60.
13	Raafi’u B， Darwito P A， Adziimaa A F，et al. Comparative study of fuzzy-PID and fuzzy-PI control systems on DC motor speed for four-wheeled mobile robotic［C］// International Conference on Advanced Mechatronics，Intelligent Manufacture and Industrial Automation （ICAMIMIA）. Batu： IEEE， 2019： 129-133.
14	Wang T T， Wang H Z， Hu H S，et al. An adaptive fuzzy PID controller for speed control of brushless direct current motor［J］. SN Applied Sciences，2022，4（3）： 71.
15	Bhimte R， Bhole-Ingale K， Shah P，et al. Precise position control of quanser servomotor using fractional order fuzzy PID controller［C］//IEEE Bombay Section Signature Conference （IBSSC）. Mumbai： IEEE， 2020： 58-63.
16	刘沛清. 空气螺旋桨理论及其应用［M］. 北京：北京航空航天大学出版社，2006： 20-45.
	Liu Pei-qing. Air propeller theory and its application［M］. Beijing： Beijing University of Aeronautics & Astronautics Press，2006： 20-45.
17	龚伟俊，李为相，张广明. 基于威布尔分布的风速概率分布参数估计方法［J］. 可再生能源，2011，29（6）： 20-23.
	Gong Wei-jun， Li Wei-xiang， Zhang Guang-ming. The estimation algorithm on the probabilistic distribution parameters of wind speed based on Weibull distribution［J］. Renewable Energy Resources，2011，29（6）： 20-23.
18	张猛. 输电线路巡检机器人旋翼系统的机构设计及性能分析［D］. 沈阳：东北大学，2021.
	Zhang Meng. Mechanism design and performance analysis of rotor system of transmission line inspection robot［D］. Shenyang： Northeastern University，2021.

参数	取值
m/kg	30
h₁/m	0.5
h₂/m	0.6
c₀/（N·s·m^-1）	10
g/（m·s^-2）	9.8

参数	取值
m/kg	30
h₁/m	0.5
h₂/m	0.6
c₀/（N·s·m^-1）	10
g/（m·s^-2）	9.8

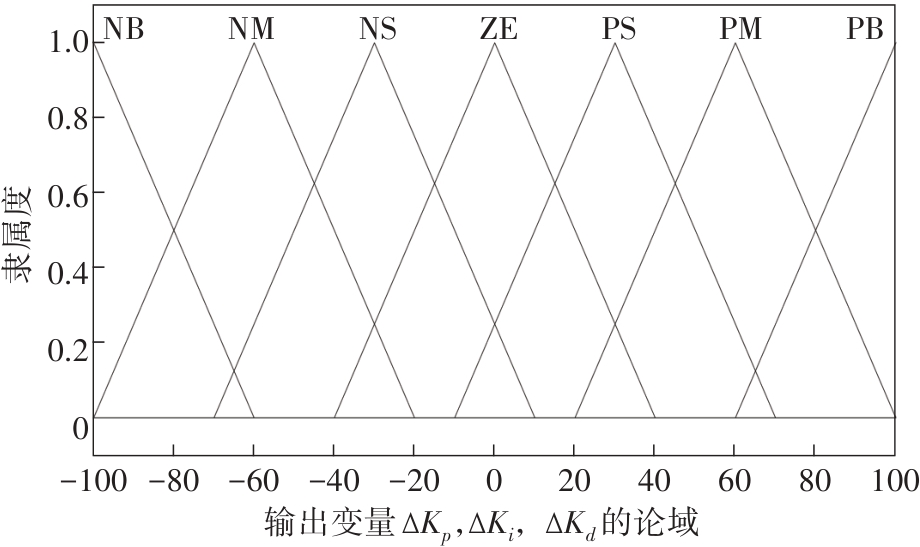

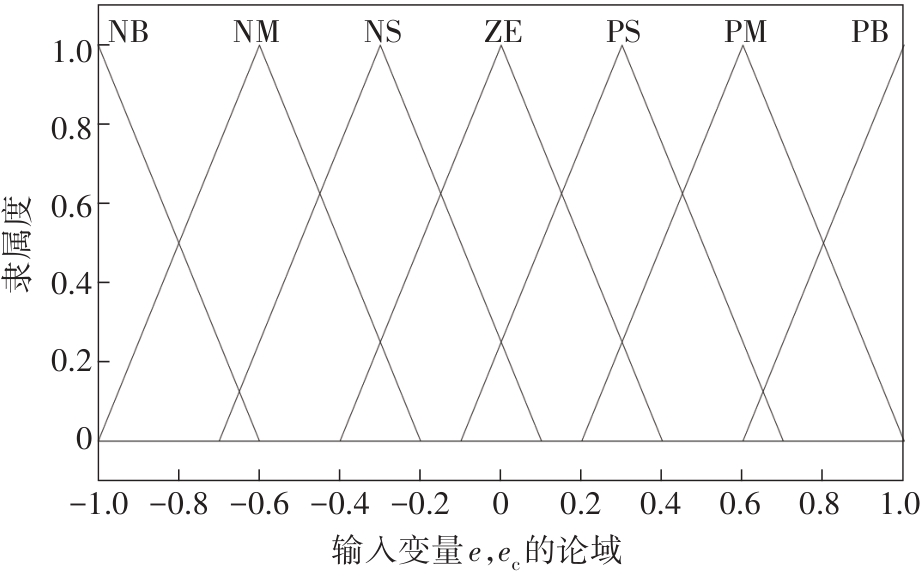

角度误差变化率e_c	角度误差e
角度误差变化率e_c	NB	NM	NS	ZE	PS	PM	PB
NB	PB	PB	PM	PM	PS	PS	ZE
NM	PB	PM	PS	PS	NS	NS	ZE
NS	PM	PM	PS	PS	NS	NS	ZE
ZE	ZE	ZE	ZE	ZE	ZE	ZE	ZE
PS	NS	NS	NS	PS	NS	NM	NB
PM	NS	NS	NS	PS	PS	PM	PB
PB	PS	PS	NS	PB	PM	PB	PB

角度误差变化率e_c	角度误差e
角度误差变化率e_c	NB	NM	NS	ZE	PS	PM	PB
NB	PB	PB	PM	PM	PS	PS	ZE
NM	PB	PM	PS	PS	NS	NS	ZE
NS	PM	PM	PS	PS	NS	NS	ZE
ZE	ZE	ZE	ZE	ZE	ZE	ZE	ZE
PS	NS	NS	NS	PS	NS	NM	NB
PM	NS	NS	NS	PS	PS	PM	PB
PB	PS	PS	NS	PB	PM	PB	PB

角度误差变化率e_c	角度误差e
角度误差变化率e_c	NB	NM	NS	ZE	PS	PM	PB
NB	NB	NB	NB	NM	NM	ZE	ZE
NM	NB	NM	NS	ZE	PS	PS	PS
NS	PS	PS	PS	ZE	ZE	ZE	ZE
ZE	ZE	ZE	ZE	ZE	ZE	ZE	ZE
PS	PS	PS	PS	ZE	PS	PS	PM
PM	NB	NB	ZE	ZE	NS	NS	NS
PB	NB	NB	ZE	ZE	NS	NS	NS
