Effect of Initial Inclination Angle of Elastic Pillars on Heat Transfer Enhancement in Microchannel

doi:10.12068/j.issn.1005-3026.2025.20230264

Abstract

Abstract:

To solve the heat dissipation problem of electronic devices， the flow and heat transfer features of elastic pillar with different initial inclinations in microchannel are numerically investigated. Furthermore， the influences of dynamic characteristics and inclination angle of the elastic pillar on fluid heat transfer performance， hydrodynamic friction factor， and overall hydrothermal efficiency are probed. The results indicate that 1.25 μm oscillation is generated when the inclination angle of the elastic pillar is 0.2π. This small amplitude is not conducive to the generation of vortices. On the other hand， an elastic pillar in a fully flapping mode can generate periodic vortices， which is more conducive to the disturbance to the boundary layer and the mixing of cold and hot fluids， thereby enhancing heat transfer. In the range of Re from 800 to 1 200， the elastic pillar has the optimal inclination angle of 0.6π. Under the optimum working condition， at the expense of high mechanical loss， the heat transfer performance of the fluid can be improved by 63.5%， and the total hydrothermal efficiency can be increased by 7.5%.

Key words: heat transfer enhancement, flexible vortex generator, microchannel, arbitrary Lagrangian-Eulerian （ALE） method, numerical simulation

CLC Number:

TK 124

Ke-fan YU, Liang ZHAO, Hui DONG, Yong-qing HE. Effect of Initial Inclination Angle of Elastic Pillars on Heat Transfer Enhancement in Microchannel[J]. Journal of Northeastern University(Natural Science), 2025, 46(2): 42-49.

Figures/Tables 18

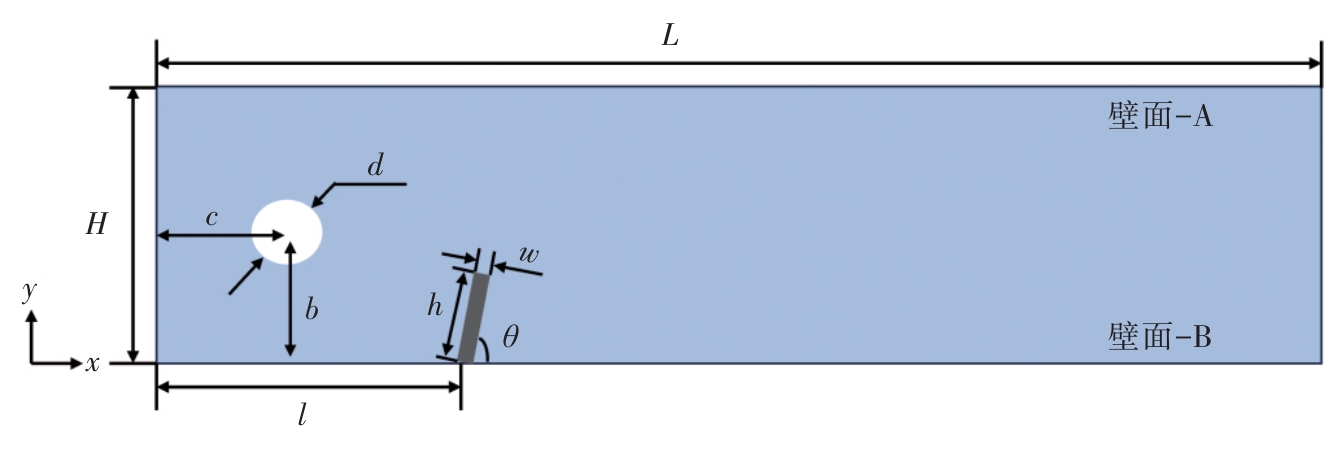

Fig.1 Geometric schematic diagram of two-dimensional microchannels

Table 1 Geometric parameters for two-dimensional microchannels

参数	数值	参数	数值
微通道宽度H/μm	35w	圆柱障碍物离壁面B的距离b/μm	17.5w
微通道长度L/μm	150w	圆柱障碍物直径d/μm	3w
柔性柱离流动入口的距离l/μm	42w	柔性柱宽度w/μm	14
圆柱障碍物离流动入口的距离c/μm	11w	柔性柱高度h/μm	13w
柔性柱倾角θ	0.2π ~ 0.8π

Table 2 Physical properties of elastic pillar material

物性参数	数值	物性参数	数值
密度/（kg·m^-3）	2 500	泊松比	0.48
弹性模量/MPa	7	导热系数/（W·m^-1·K^-1）	2.5
比热容/（J·kg^-1·K^-1）	1 200

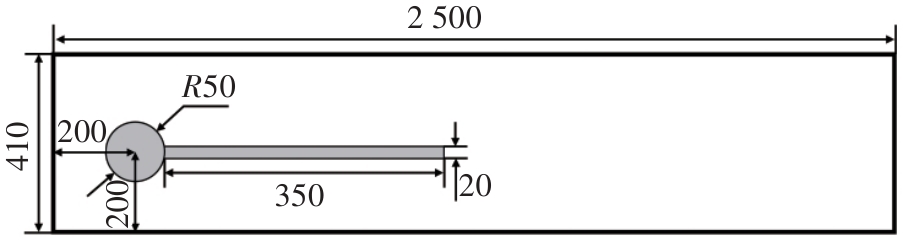

Fig.2 Physical model diagram proposed by Turek et al [25]（unit：mm）

Fig.3 Displacement of flexible pillar tip

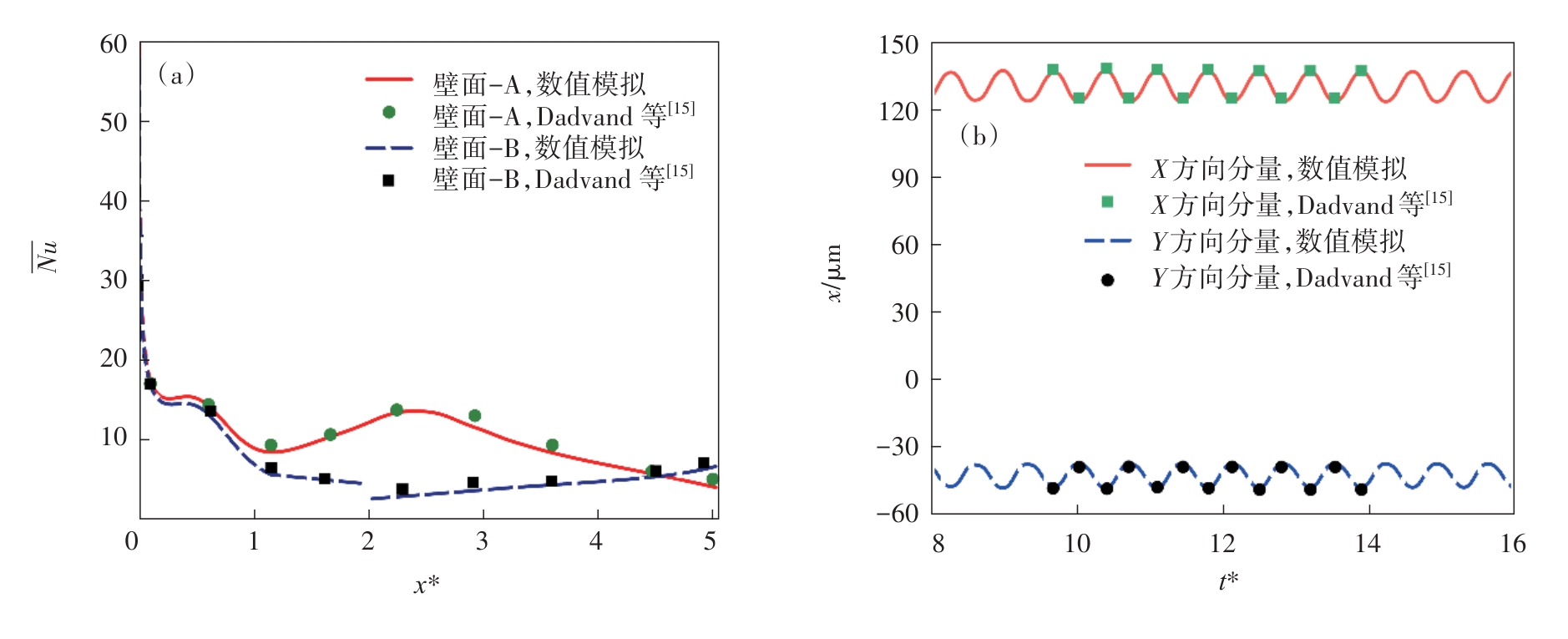

Fig.4 Comparison between present work and simulation results by Dadvand et al [15]

Fig.5 Mesh division of elastic pillar microchannels with an inclination angle of 0.5π

Table 3 Verification of grid independence for elastic pillar with an inclination angle of 0.5π

网格数	Nu_tot	误差/%	计算时间/h
579 59	33.199	12.3	8.65
103 348	33.441	11.7	22.47
128 000	37.555	0.8	34.43
148 102	37.867	0.0	48.98

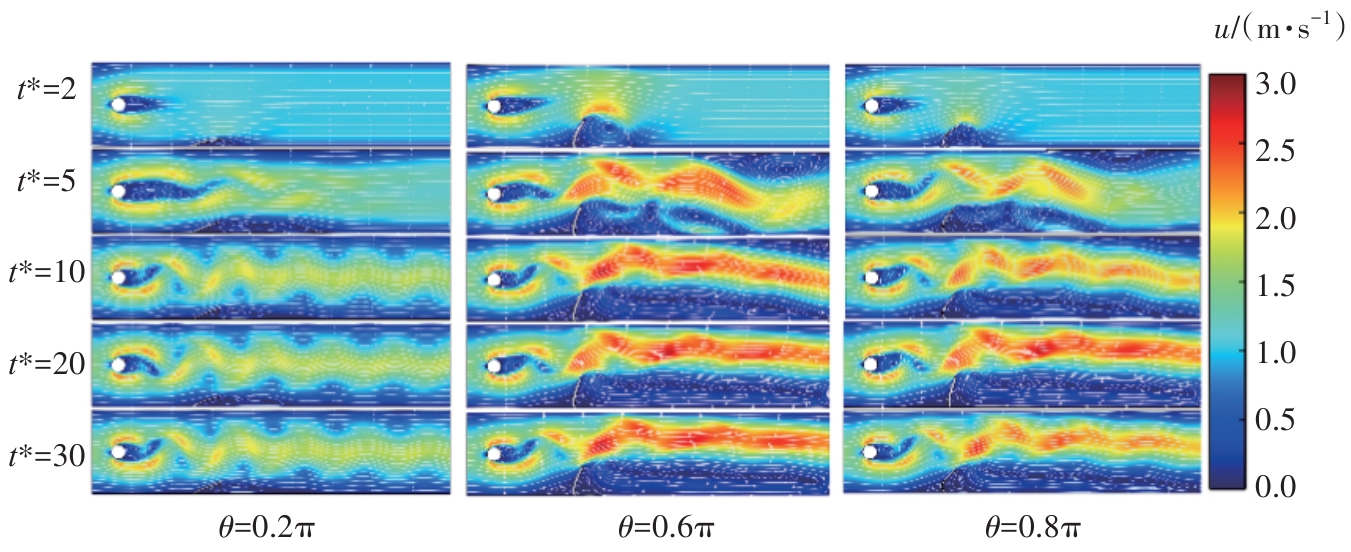

Fig.6 Transient velocity cloud and streamline diagrams of microchannels with different inclination angles of elastic pillar

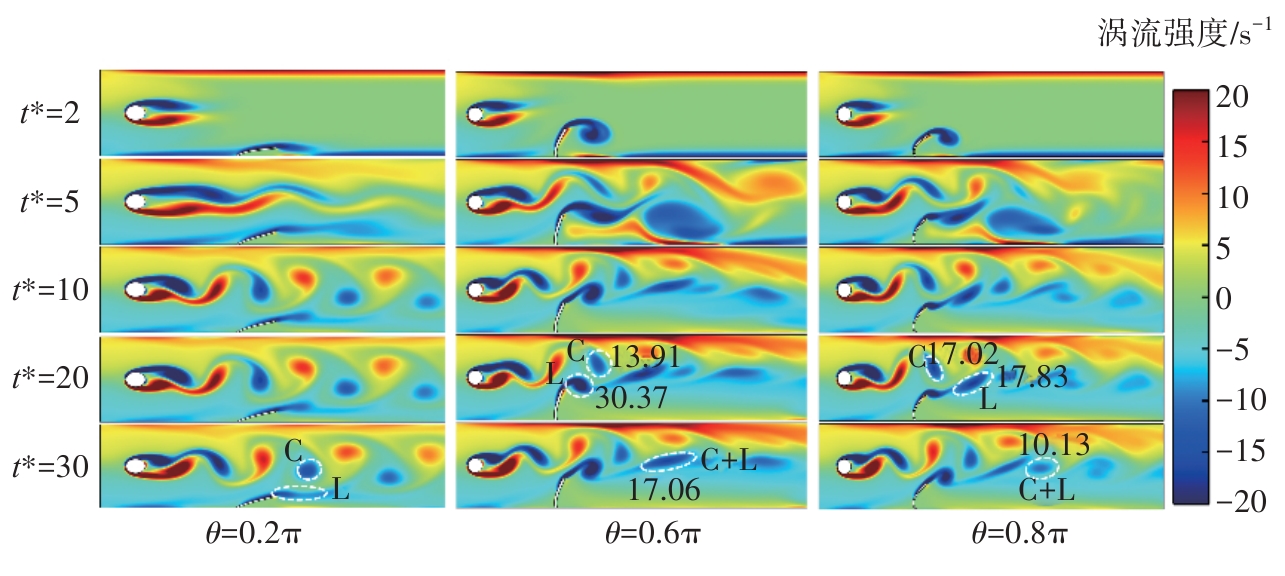

Fig.7 Transient vorticity cloud pictures of microchannels with different inclination angles of elastic pillar

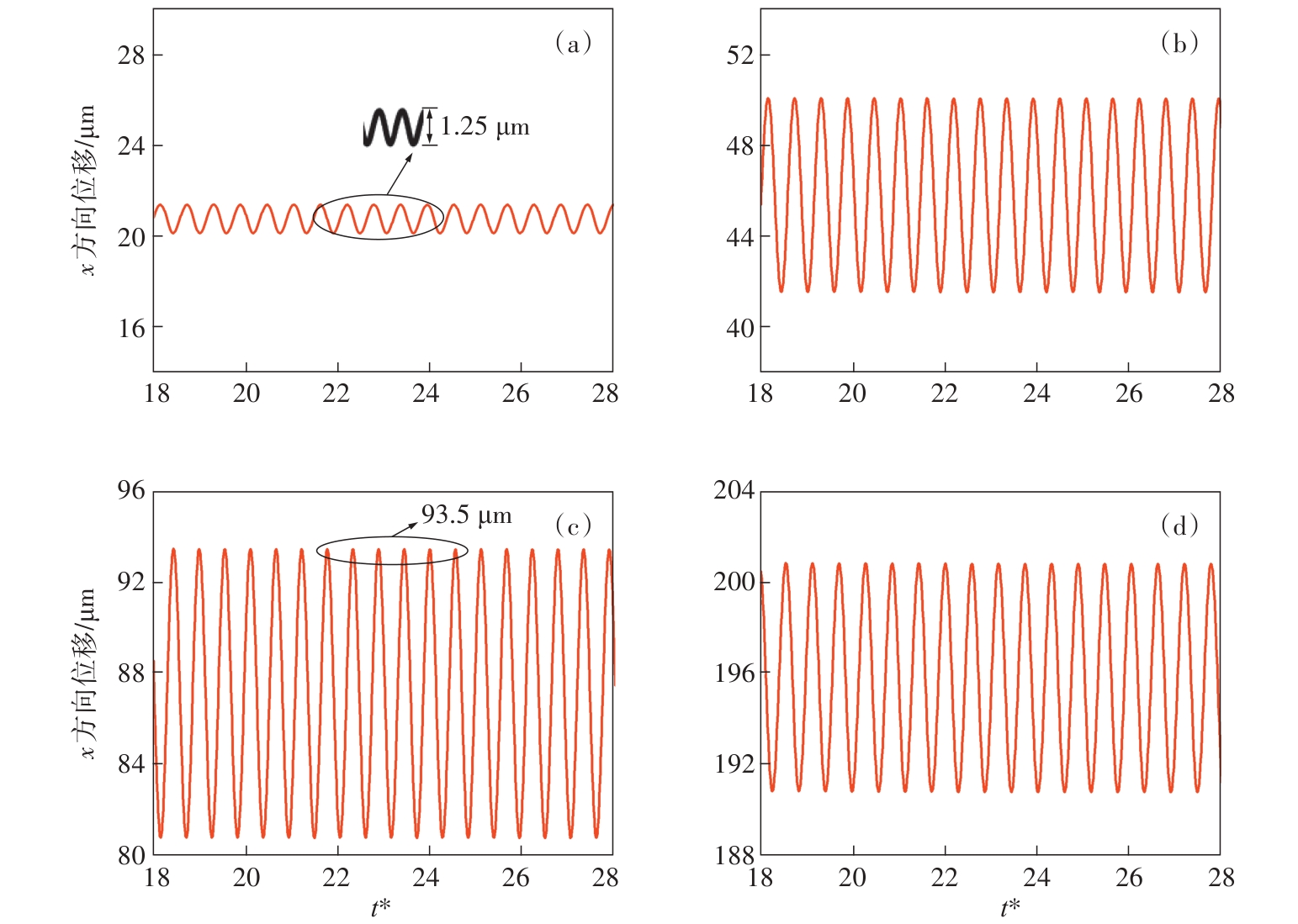

Fig.8 Tip displacement of the x-component at the end of an elastic pillar with different inclination angles

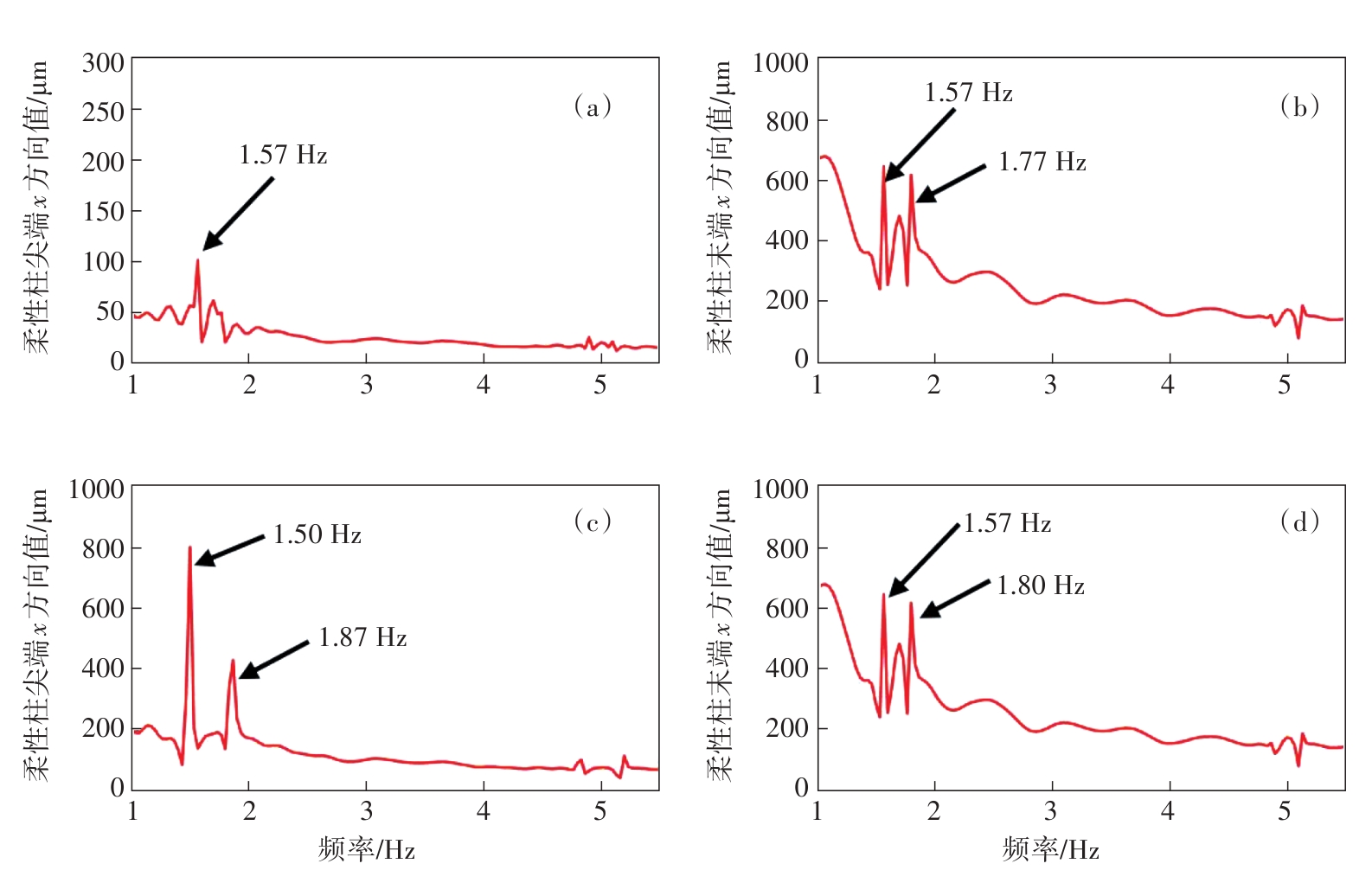

Fig.9 Frequency of the x-component at the end of an elastic pillar with different inclination angles

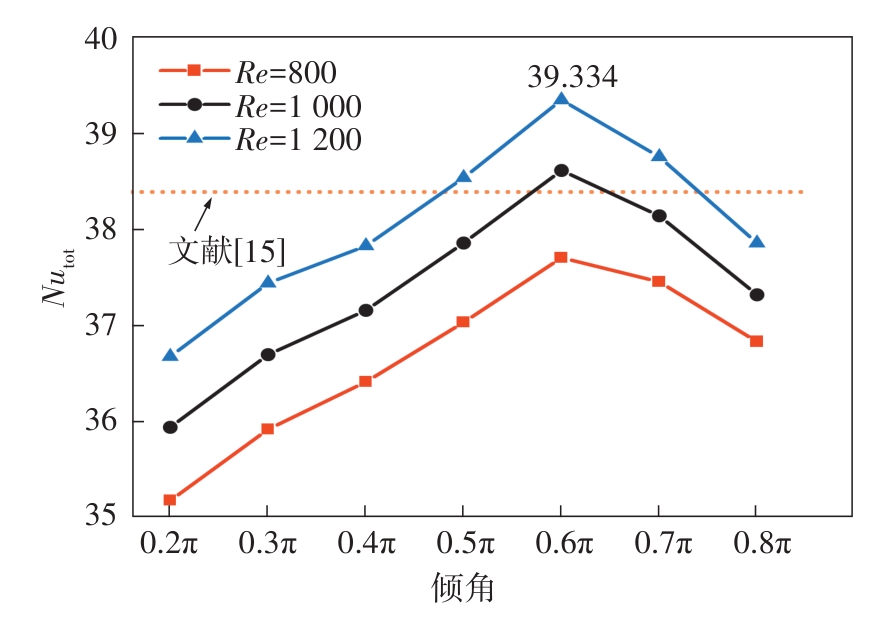

Fig.10 The total Nusselt number of the walls on both sides of microchannel under different inclination angles of elastic pillar

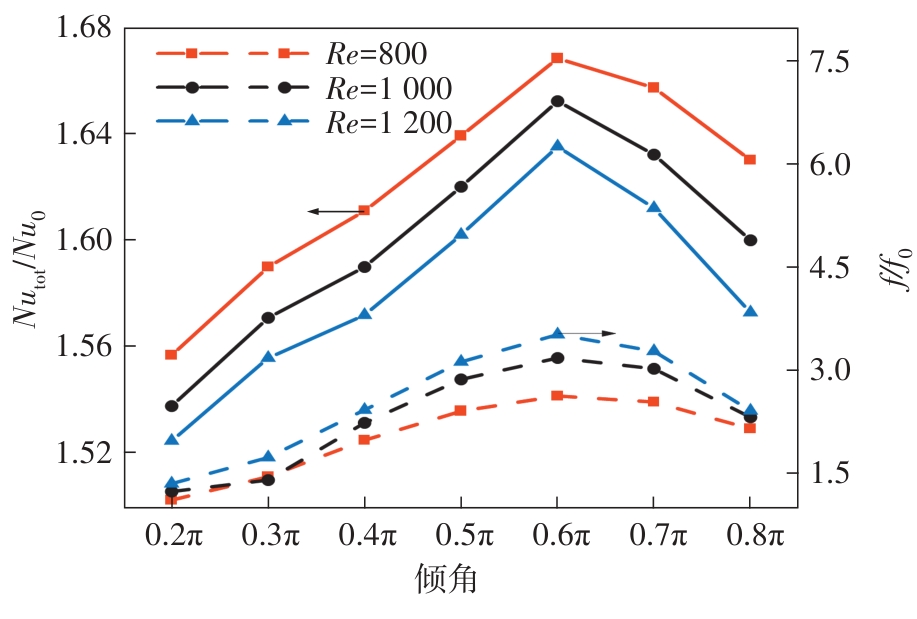

Fig.11 The total Nusselt number ratio and friction coefficient ratio of microchannels under different inclination angles of elastic pillar

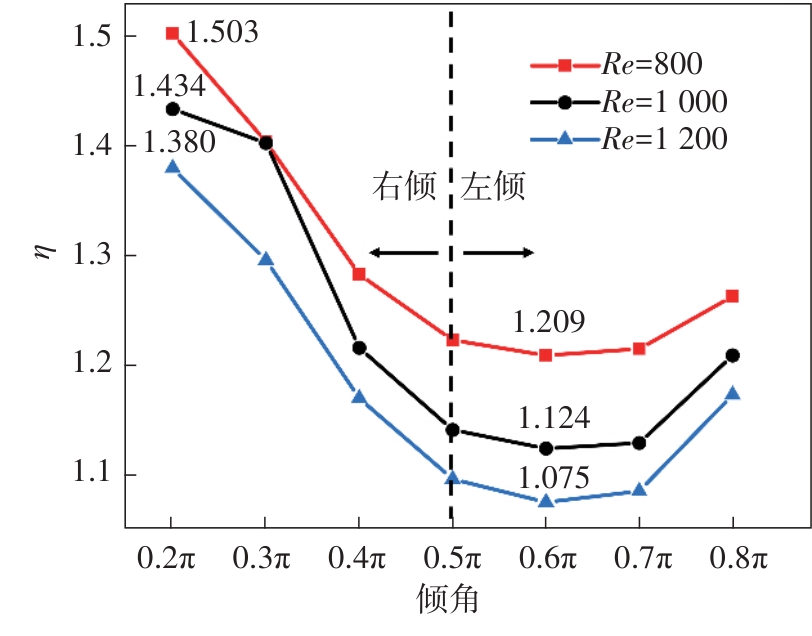

Fig.12 Comprehensive performance of microchannels under different inclination angles of elastic pillar

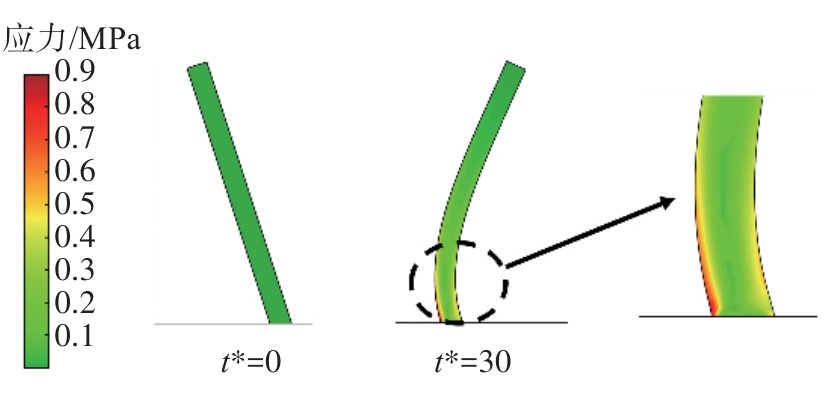

Fig.13 von Mises stress diagram of an elastic pillar with an inclination angle of 0.6π （Re=1 000）

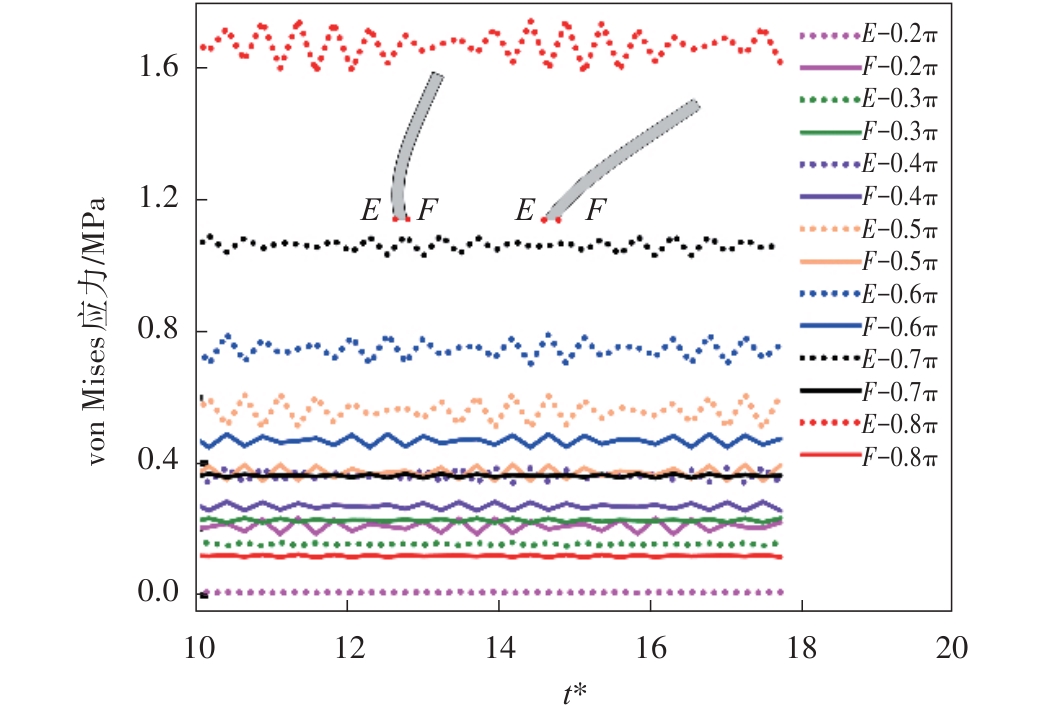

Fig.14 Maximum von Mises stress of elastic pillar with different inclination angles

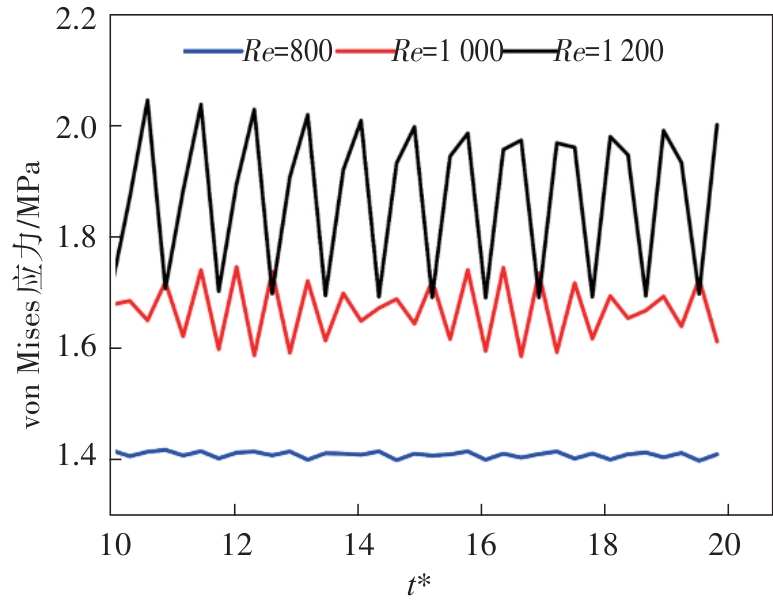

Fig.15 Maximum von Mises stress at point E of an elastic pillar with an inclination angle of 0.8 π under different Re

References 25

1	Fu C J， Wang J G， Zhao T L， et al. Experimental study on the influence factors of flow velocity structure and turbulent characteristics in open channel with biomimetic grass［J］. Advances in Civil Engineering， 2021（1）： 5512536.
2	Ali S， Habchi C， Menanteau S， et al. Heat transfer and mixing enhancement by free elastic flaps oscillation［J］. International Journal of Heat and Mass Transfer， 2015， 85： 250-264.
3	Kurzthaler C， Brandão R， Schnitzer O， et al. Shape of a tethered filament in various low-Reynolds-number flows［J］. Physical Review Fluids， 2023（8）： 014101.
4	Gallegos R K B， Sharma R N. Heat transfer performance of flag vortex generators in rectangular channels［J］. International Journal of Thermal Sciences， 2019， 137： 26-44.
5	Gallegos R K B， Sharma R N. Small flags in rectangular channels： dynamics and mean wake characteristics［J］. International Journal of Mechanical Sciences， 2019， 155： 518-535.
6	Mirzaee H， Dadvand A， Mirzaee I， et al. Heat transfer enhancement in microchannels using an elastic vortex generator［J］. Journal of Enhanced Heat Transfer， 2012， 19（3）： 199-211.
7	Ghalambaz M， Jamesahar E， Ismael M A， et al. Fluid-structure interaction study of natural convection heat transfer over a flexible oscillating fin in a square cavity［J］. International Journal of Thermal Sciences， 2017， 111： 256-273.
8	Wang J S， Wang X， Liu X L. Numerical investigation on flow behavior and heat transfer feature of flexible wings located at the bottom of a two-dimensional channel［J］. Applied Thermal Engineering， 2022， 206： 118112.
9	Lee J B， Park S G， Kim B， et al. Heat transfer enhancement by flexible flags clamped vertically in a Poiseuille channel flow［J］. International Journal of Heat and Mass Transfer， 2017， 107： 391-402.
10	Chen Y J， Yang J， Liu Y Z， et al. Heat transfer enhancement in a poiseuille channel flow by using multiple wall-mounted flexible flags［J］. International Journal of Heat and Mass Transfer， 2020， 163： 120447.
11	Ali S， Menanteau S， Habchi C， et al. Heat transfer and mixing enhancement by using multiple freely oscillating flexible vortex generators［J］. Applied Thermal Engineering， 2016， 105： 276-289.
12	Park S G. Heat transfer enhancement by a wall-mounted flexible vortex generator with an inclination angle［J］. International Journal of Heat and Mass Transfer， 2020， 148： 119053.
13	Lee J B， Park S G， Sung H J. Heat transfer enhancement by asymmetrically clamped flexible flags in a channel flow［J］. International Journal of Heat and Mass Transfer， 2018， 116： 1003-1015.
14	Kang M S， Park S G， Dinh C T. Heat transfer enhancement by a pair of asymmetric flexible vortex generators and thermal performance prediction using machine learning algorithms［J］. International Journal of Heat and Mass Transfer， 2023， 200： 123518.
15	Dadvand A， Hosseini S， Aghebatandish S， et al. Enhancement of heat and mass transfer in a microchannel via passive oscillation of a flexible vortex generator［J］. Chemical Engineering Science， 2019， 207： 556-580.
16	Hosseini S， Aghebatandish S， Dadvand A， et al. An immersed boundary-lattice Boltzmann method with multi relaxation time for solving flow-induced vibrations of an elastic vortex generator and its effect on heat transfer and mixing［J］. Chemical Engineering Journal， 2021， 405： 126652.
17	Jing D L， Zhan X K. Numerical studies on the hydraulic and mixing performances of fluid flow around a cylinder in microchannel with vertical flexible flag［J］. Chemical Engineering Journal， 2022， 430： 133009.
18	Karniadakis G， Beskok A， Aluru N R. Microflows and nanoflows： fundamentals and simulation［C］// Interdisciplinary Applied Mathematics Series. Berlin： Springer Science Business Media， 2005： 1-61.
19	Hirt C W， Amsden A A， Cook J L. An arbitrary Lagrangian-Eulerian computing method for all flow speeds［J］. Journal of Computational Physics， 1974， 14（3）： 227-253.
20	Done J， Huerta A， Rodrguez-Ferran A. Chapter 14： arbitrary Lagrangian-Eulerian methods［M］//Encyclopedia of Computational Mechanics. ［S. l.］：John Wiley & Son， 2004： 1-25.
21	Tuković Ž， Jasak H. Updated Lagrangian finite volume solver for large deformation dynamic response of elastic body［J］.Transactions of Famena， 2017， 31： 55-70.
22	Attard M M. Finite strain– isotropic hyperelasticity［J］. International Journal of Solids and Structures， 2003， 40（17）： 4353-4378.
23	Celik I B， Ghia U， Roache P J， et al. Procedure for estimation and reporting of uncertainty due to discretization in CFD applications［J］. Journal of Fluids Engineering， 2008， 130（7）： 078001.
24	Amini Y， Habibi S E. Effects of multiple flexible vortex generators on the hydrothermal characteristics of a rectangular channel［J］. International Journal of Thermal Sciences， 2022， 175： 107454.
25	Turek S， Hron J. Proposal for numerical benchmarking of fluid-structure interaction between an elastic object and laminar incompressible flow［C］// Fluid-Structure Interaction. Berlin， Heidelberg： Springer， 2006： 371-385.
