A Novel Coriolis Flow Meter Signal Processing Method Based on Quadrature Demodulation

doi:10.12068/j.issn.1005-3026.2025.20240047

Abstract

Abstract:

In order to maximize the measurement performance of Coriolis flowmeter in practical application， a quadrature demodulation algorithm based on correlation operation and Hilbert transform （CH-QD algorithm） is proposed. The proposed algorithm uses the same-frequency cosine frequency characteristic of autocorrelation and the phase-shift characteristic of Hilbert transform to generate the reference signals required by quadrature demodulation， which effectively solves the problem that the traditional quadrature demodulation algorithm needs to predict the signal frequency and is sensitive to the performance of the frequency detection algorithm， which improves the detection accuracy of the algorithm， and realizes the joint estimation of signal frequency and phase difference. Simulation results show that the proposed algorithm has high detection accuracy， noise resistance and dynamic tracking performance. Based on TMS320F28335DSP， the algorithm is implemented on Coriolis flowmeter transmitter， and the performance analysis and water flow calibration experiments are carried out. The calibration results show that the measurement error of the system is less than 0.1% and the repeatability is less than 0.05% in the range of range ratio of 20∶1.

Key words: Coriolis mass flowmeter, signal processing methods, quadrature demodulation method, Hilbert transform, DSP

CLC Number:

TP 391.8

Xi-rong BAO, Hong ZHANG, Shi ZHANG. A Novel Coriolis Flow Meter Signal Processing Method Based on Quadrature Demodulation[J]. Journal of Northeastern University(Natural Science), 2025, 46(5): 20-28.

Figures/Tables 12

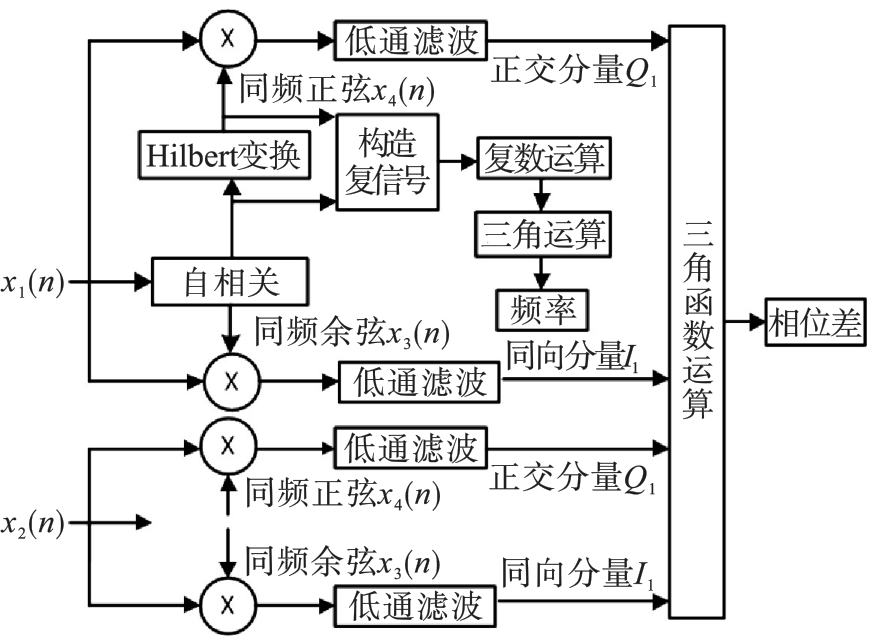

Fig.1 CH-QD block diagram

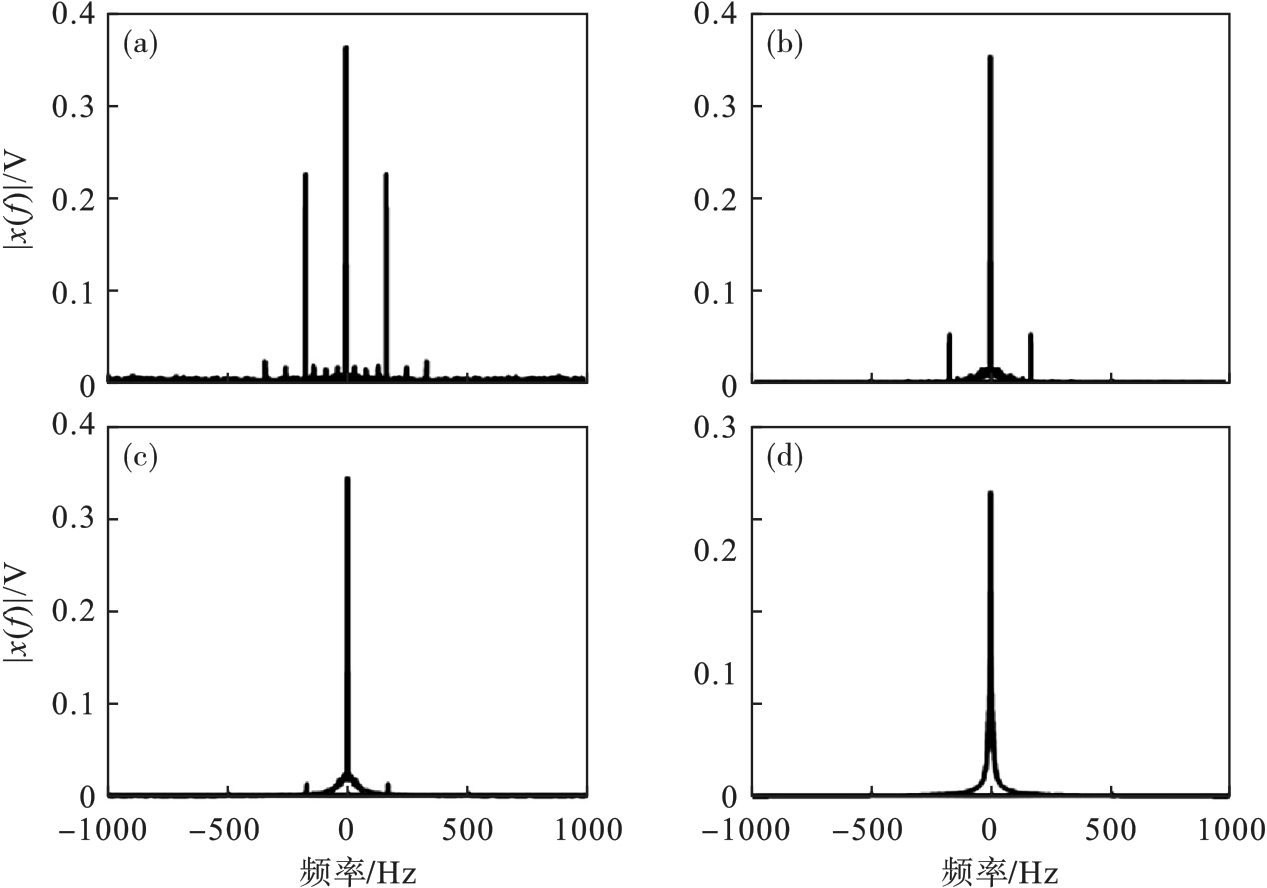

Fig.2 Spectrum of demodulation signals before and after multiple filtering

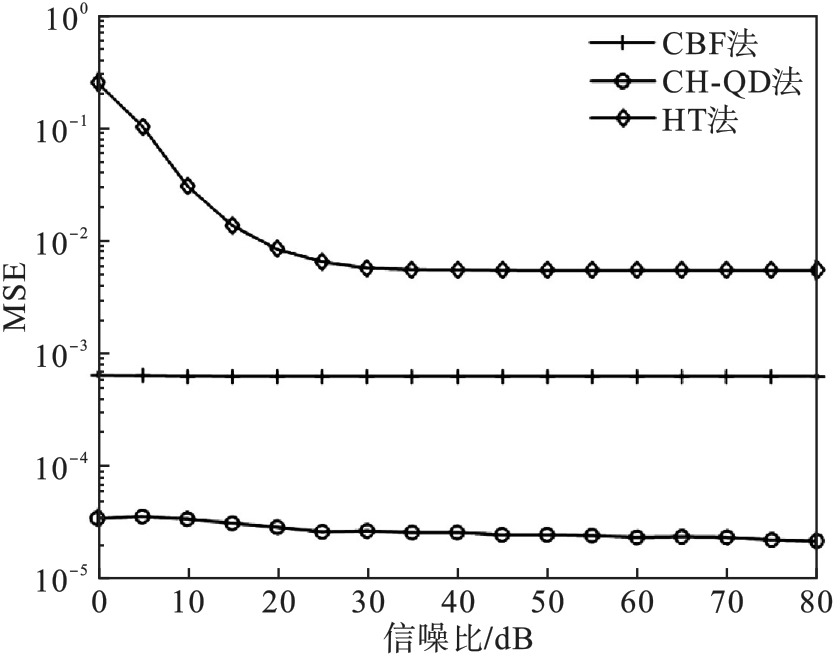

Fig.3 MSE of frequency results at different signal-to-noise ratios

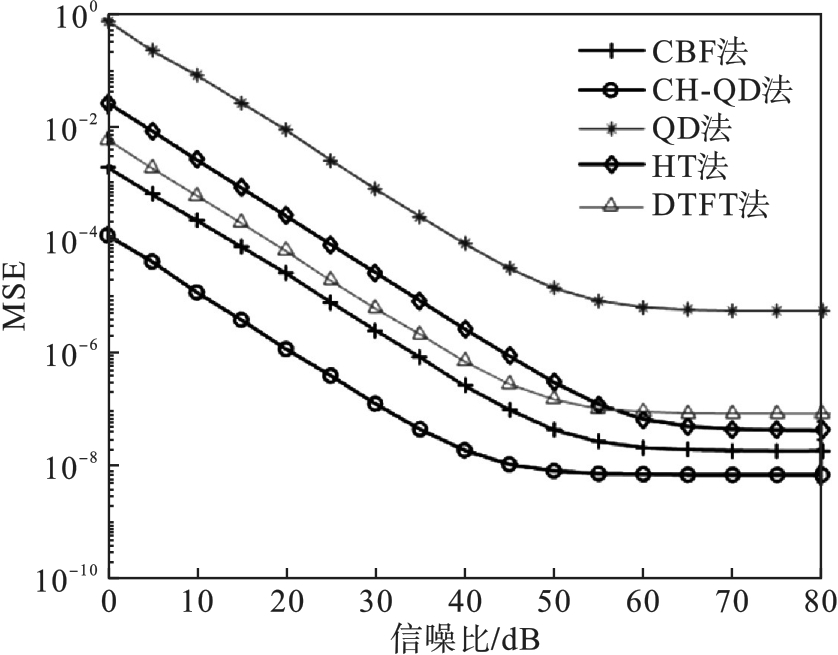

Fig.4 MSE of phase difference results under different signal-to-noise ratios

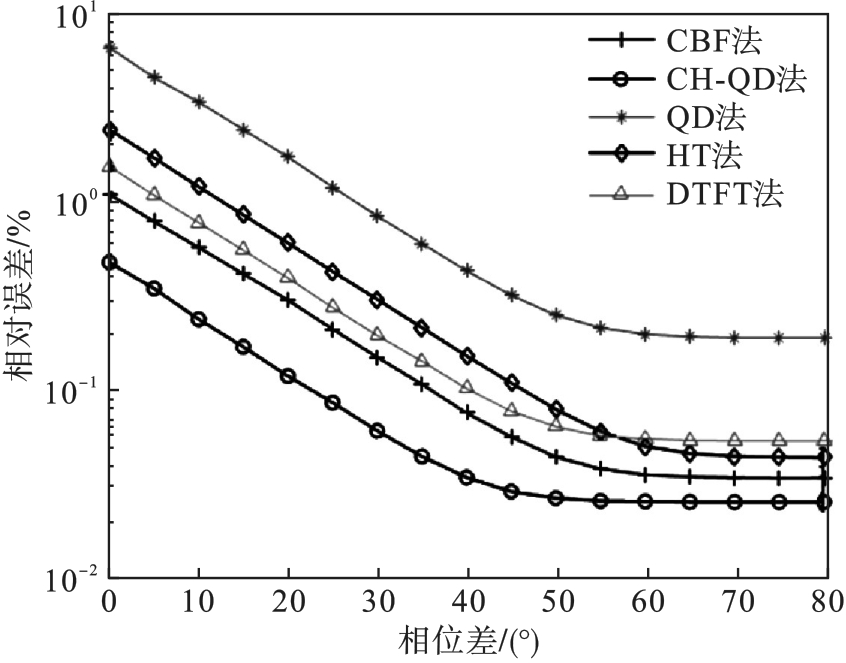

Fig.5 Relative error of the algorithm under different phase differences

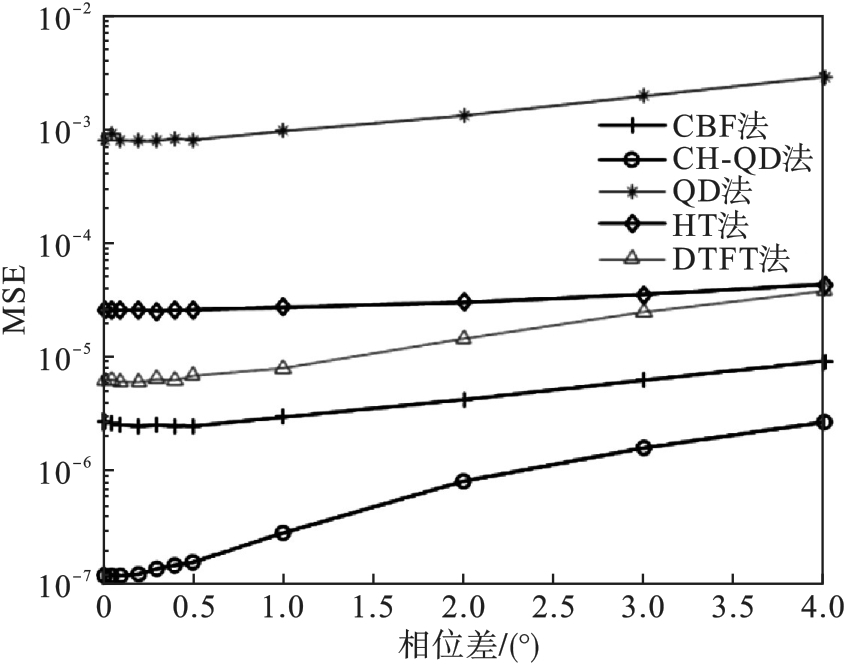

Fig.6 MSE of algorithm under different phase difference

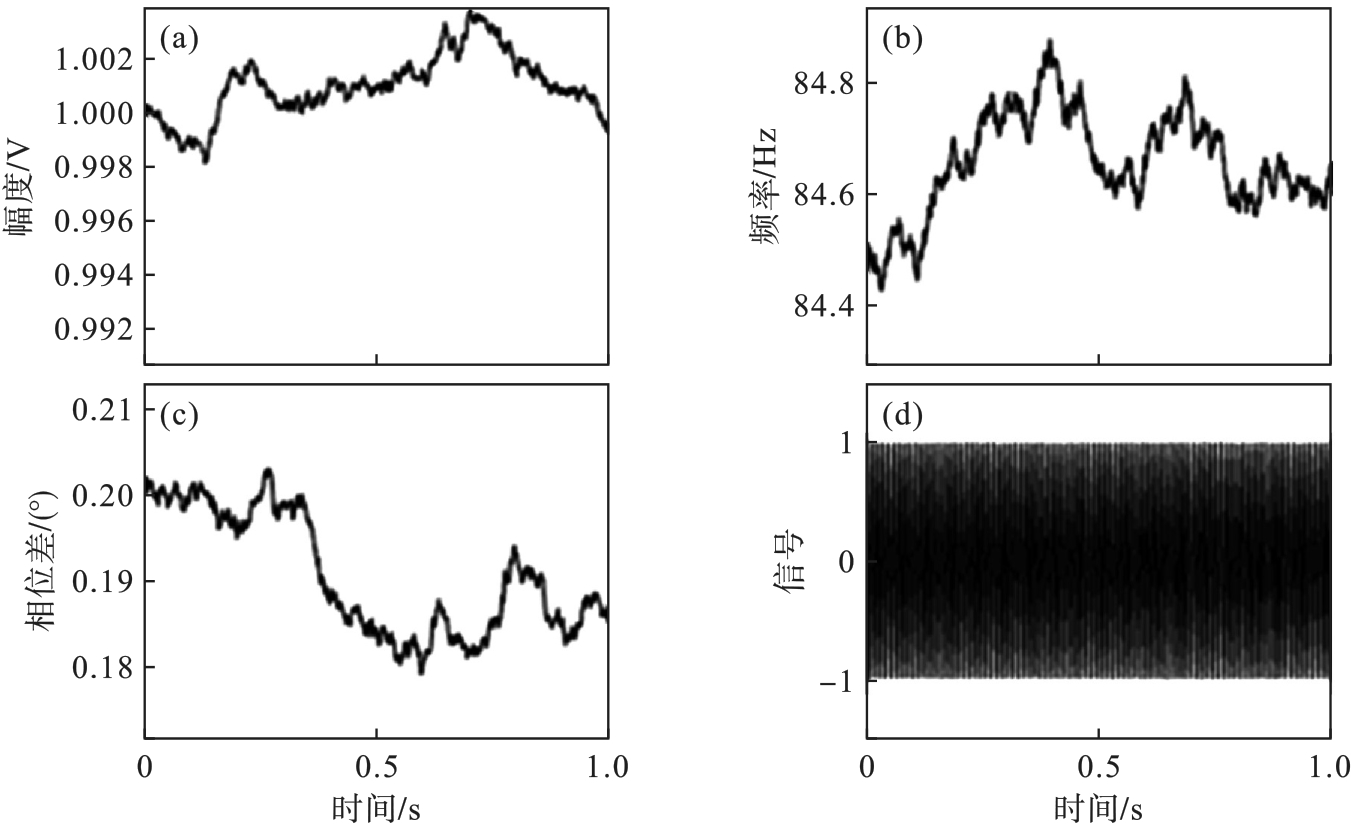

Fig.7 Signal parameters

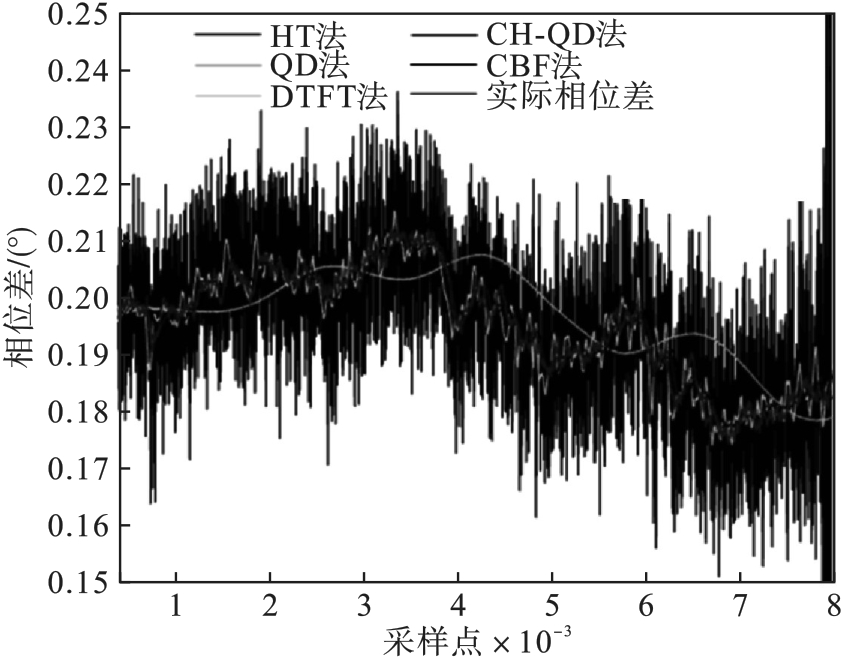

Fig.8 Phase difference results under MRWM model

Table 1 MSE under MRWM model

算法	频率MSE	相位差MSE
CH-QD法	2.58	2.73 $×$ 10^-6
CBF法	7.43	6.39 $×$ 10^-6
QD法	—	4.28 $×$ 10^-5
HT法	68.67	4.53 $×$ 10^-4
DTFT法	—	8.80 $×$ 10^-6

Table 1 MSE under MRWM model

算法	频率MSE	相位差MSE
CH-QD法	2.58	2.73 $×$ 10^-6
CBF法	7.43	6.39 $×$ 10^-6
QD法	—	4.28 $×$ 10^-5
HT法	68.67	4.53 $×$ 10^-4
DTFT法	—	8.80 $×$ 10^-6

Table 2 Algorithm processing time

算法	运算时间
CH-QD法	22.509 425
CBF法	18.628 330
QD法	64.442 105
HT法	8.734 995
DTFT法	70.460 935

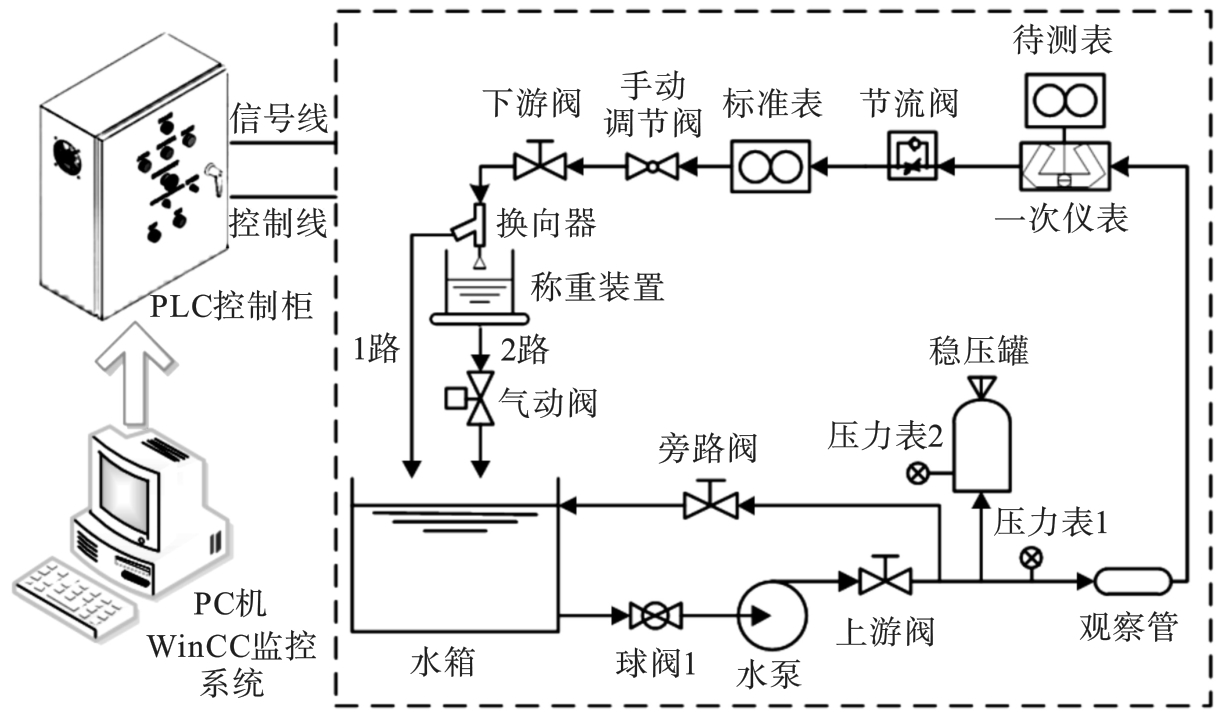

Fig.9 Water flow calibration device

Table 3 Calibration results of the system

瞬时流量/(kg·min^-1)	标准值/kg	测量值/kg	误差/%	平均误差/%	重复性/%
37.13	20.447	20.455 6	0.004 3	0.013 5	0.032 5
	20.480	20.483 6	0.016 6
	20.501	20.496 9	-0.020 4
18.51	20.207	20.206 5	-0.001 2	0.003 1	0.034 9
	20.427	20.434 7	0.039 9
	20.389	20.383 1	-0.029 5
9.30	20.030	20.026 2	-0.017 8	-0.003 4	0.013 9
	19.990	19.989 6	-0.002 3
	19.888	19.890 0	0.009 9
1.83	19.694	19.695 7	0.007 5	-0.035 4	0.044 3
	19.642	19.635 7	-0.032 9
	19.791	19.774 6	-0.080 9
37.41	20.462	20.468 0	0.028 4	0.002 3	0.024 4
	20.490	20.485 9	-0.020 0
	20.471	20.470 9	-0.001 6
