Surface Quality and Forming Accuracy of Monocrystalline Silicon Microstructures by Electrical Discharge Machining

doi:10.12068/j.issn.1005-3026.2025.20230253

Abstract

Abstract:

Taking the electrical discharge machining （EDM） of P-type monocrystalline silicon as the experimental subject， the surface morphology features and microscopic discharge pit characteristics of the monocrystalline silicon were investigated. It was revealed that the material removal mechanism of the monocrystalline silicon is dominated by stress erosion， which is more significant than melting and vaporization erosion. An experimental research on EDM of monocrystalline silicon microstructures， including micro-grooves and micro-holes， was done to explore the forming accuracy， size deviations， fluctuation height of the cross-sectional profiles， and surface quality of the EDM-processed microstructures， revealing the influence of the main processing parameters on the material removal rate， surface morphology， and surface roughness of the EDM-processed monocrystalline silicon.

Key words: monocrystalline silicon, electrical discharge machining, micro-groove, micro-hole, surface morphology, forming accuracy

CLC Number:

TG 661

Yao SUN, Jun-yi DONG, Ben-jia TANG, Si-hui LI. Surface Quality and Forming Accuracy of Monocrystalline Silicon Microstructures by Electrical Discharge Machining[J]. Journal of Northeastern University(Natural Science), 2025, 46(2): 96-103.

Figures/Tables 11

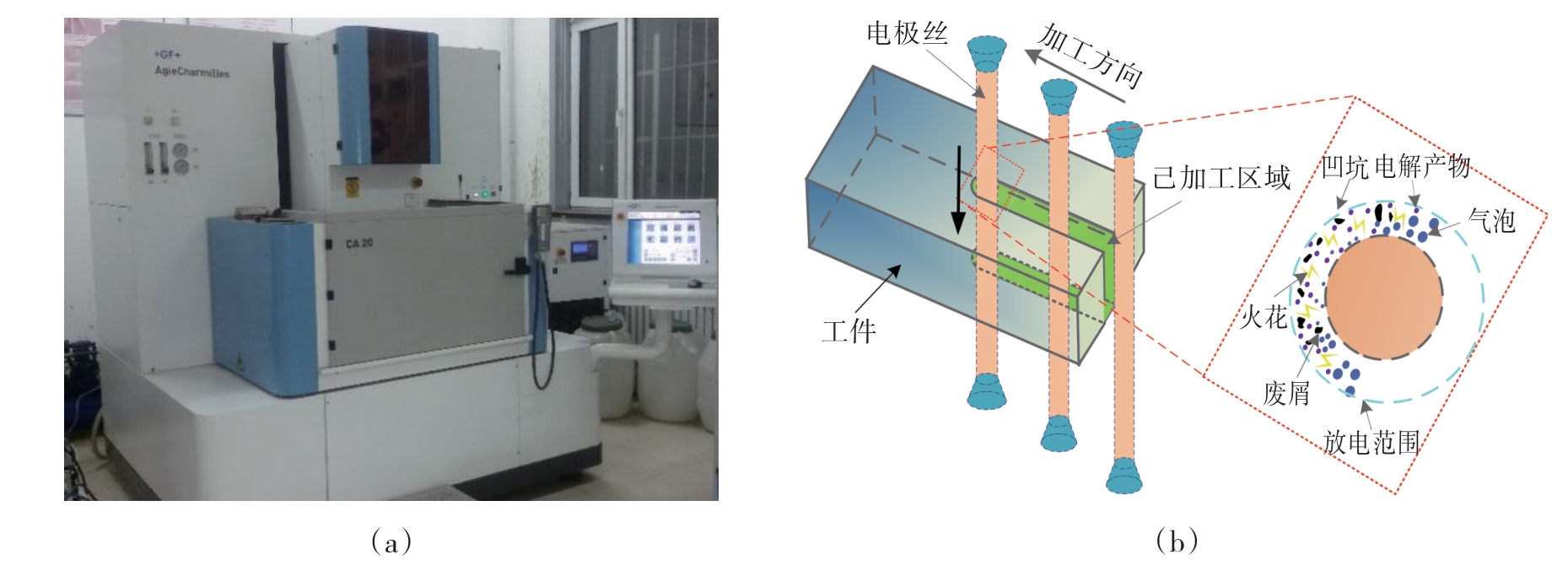

Fig. 1 Experimental equipment and schematic diagram

Table 1 Factors and levels for micro-groove of the monocrystalline silicon

因素	水平
因素	1	2	3	4
I_p/A	40	110	230	320
T_on/μs	4	6	13	15
F_w/N	9	12	15	16

Fig. 2 2D / 3D morphology of the micro-spiral tool

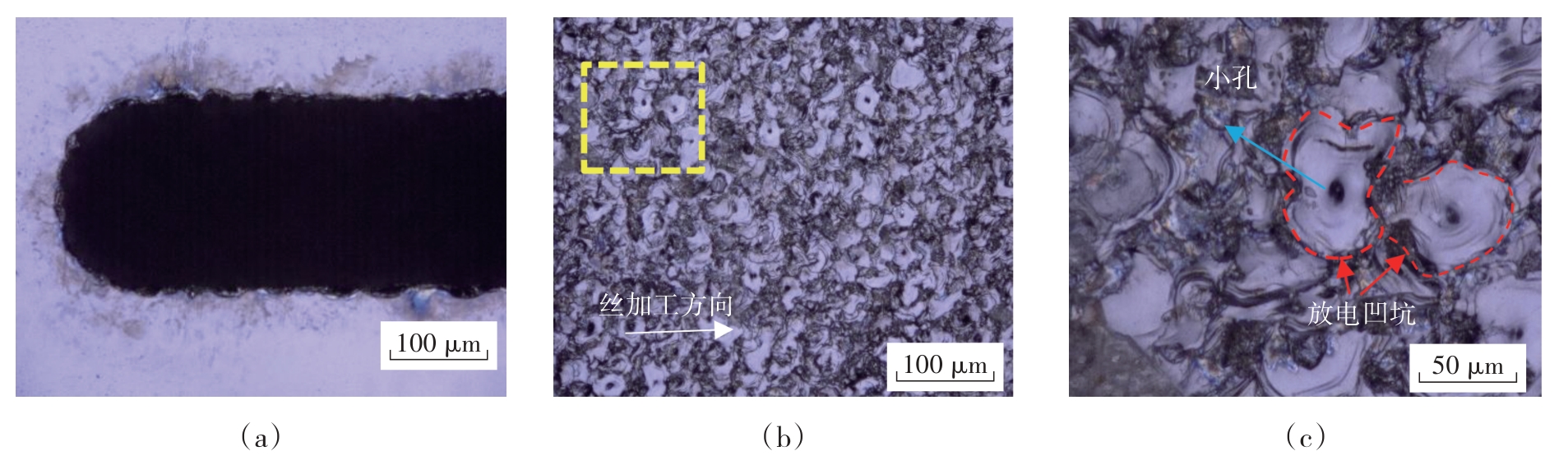

Fig. 3 Surface morphology of the monocrystalline silicon machined by EDM

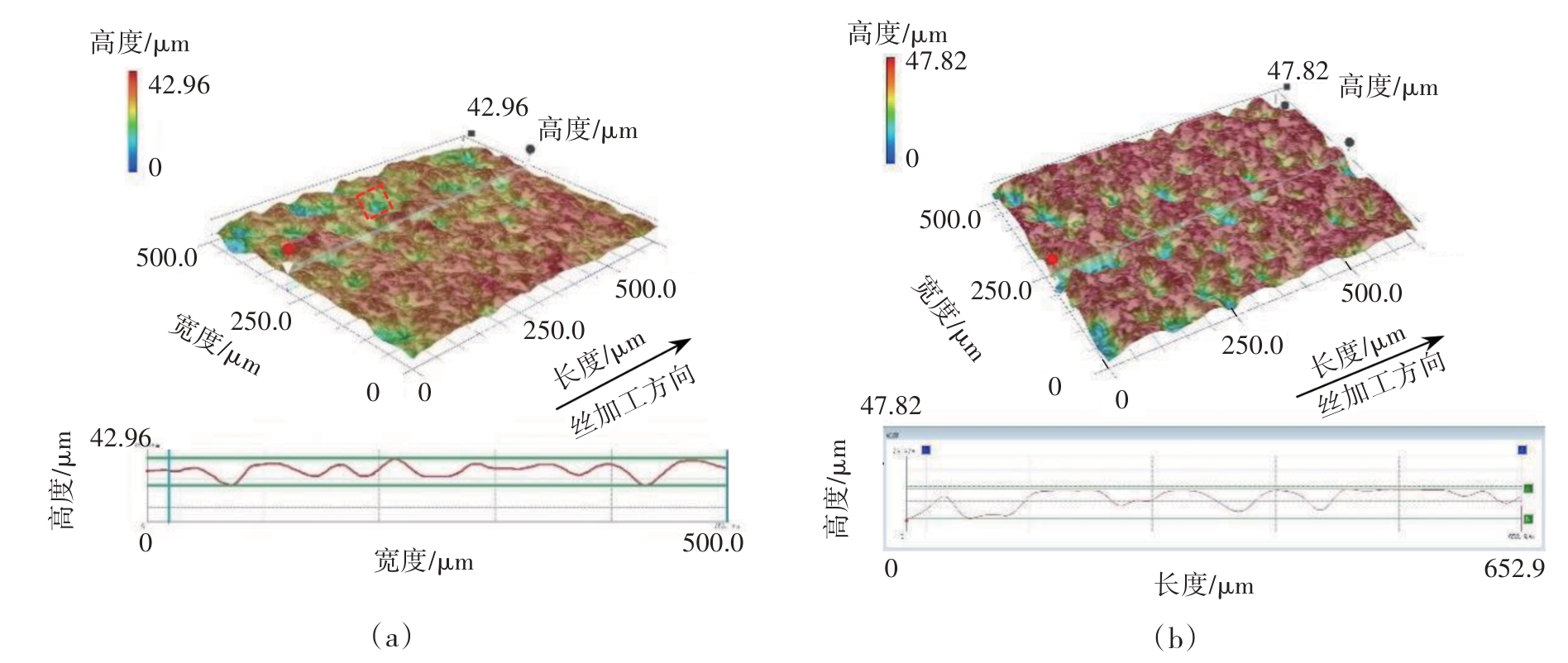

Fig. 4 Surface morphology of the monocrystalline silicon machined by low-speed wire EDM with various Ip

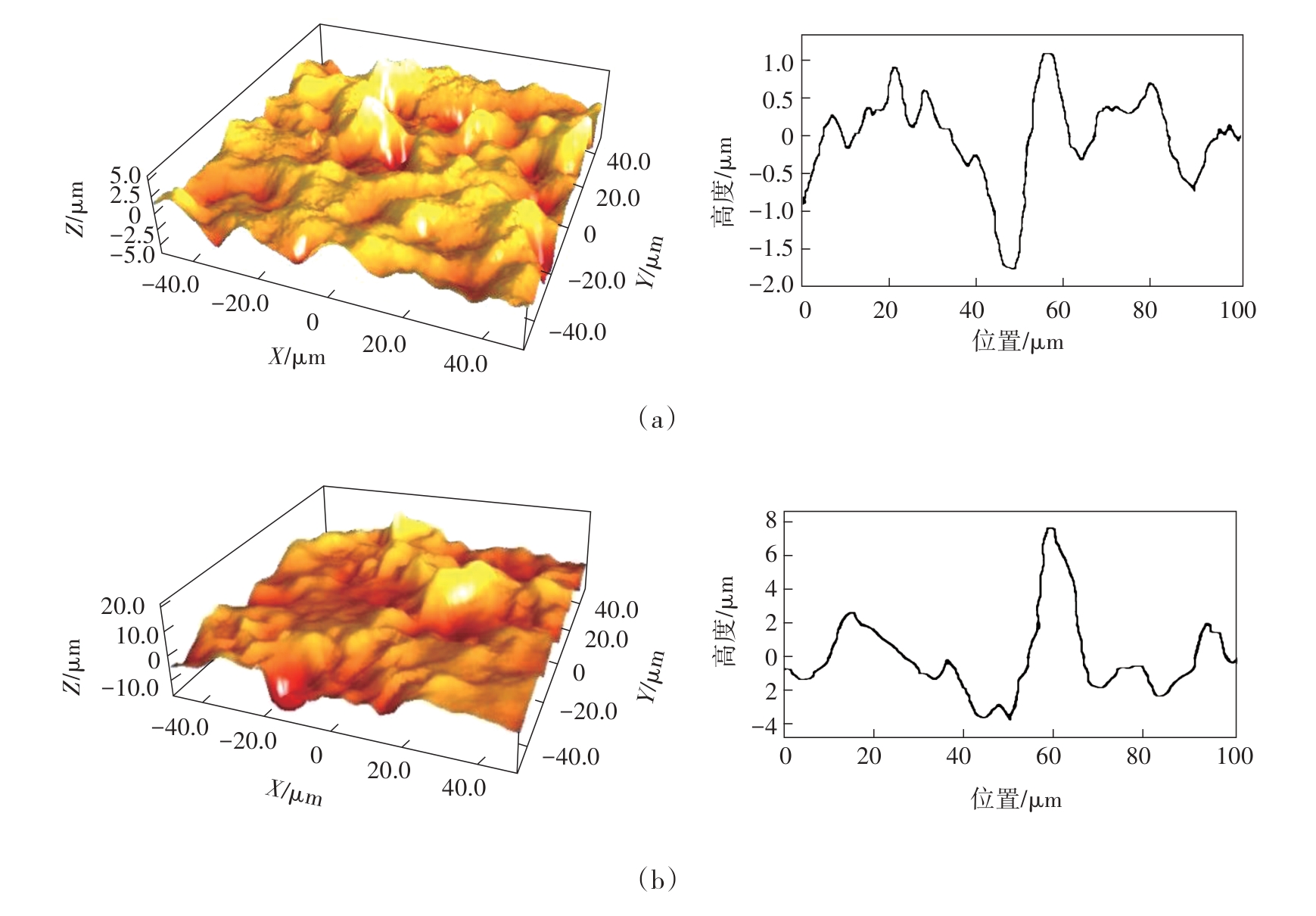

Fig. 5 Surface roughness of the monocrystalline silicon machined by LS-WEDM with various Ip

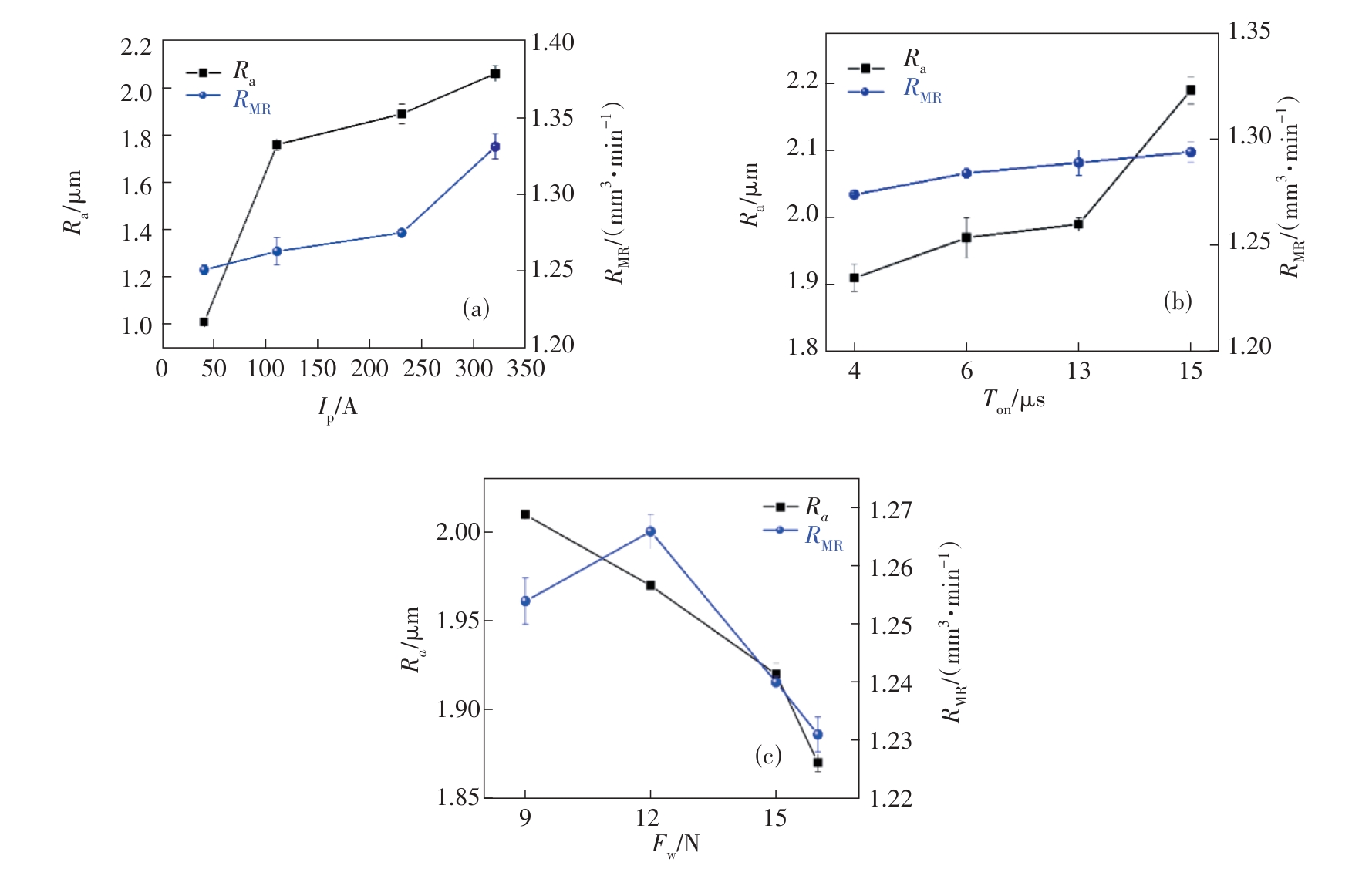

Fig. 6 Ra and RMR of the monocrystalline silicon machined by LS-WEDM

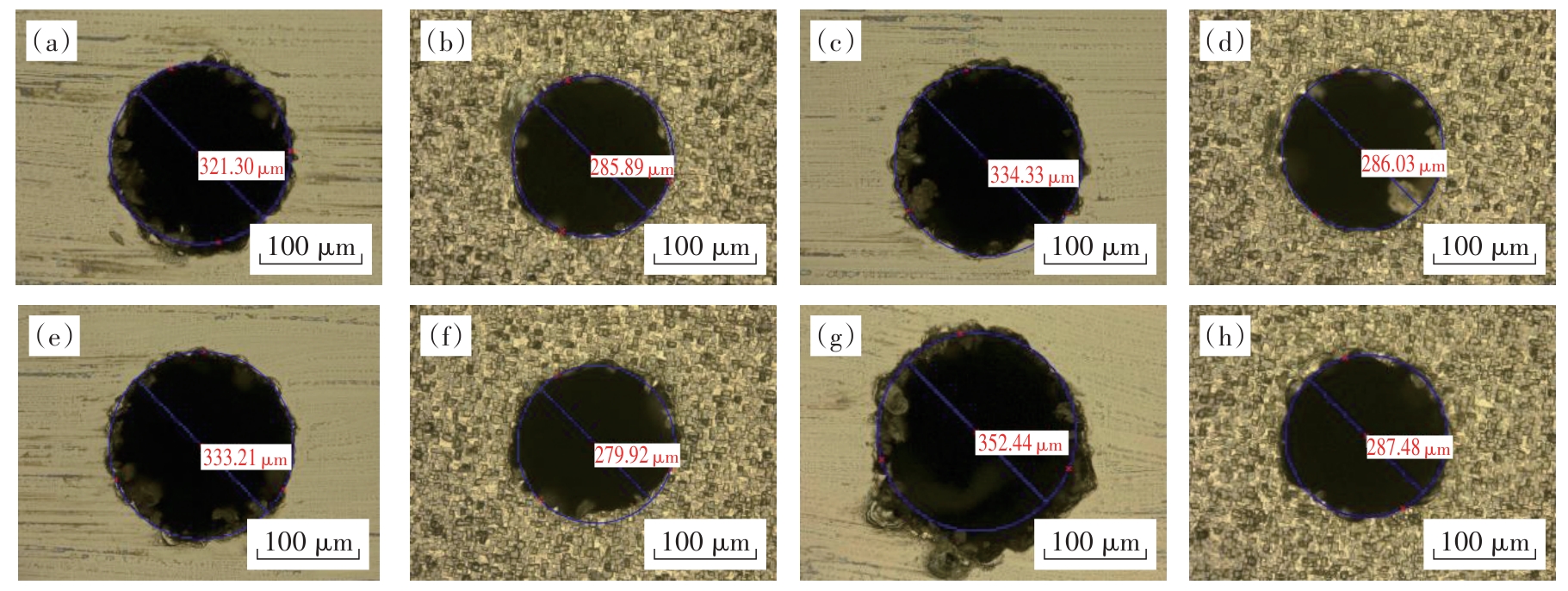

Fig. 7 Inlet and outlet morphology of the monocrystalline silicon micro-hole machined by EDM

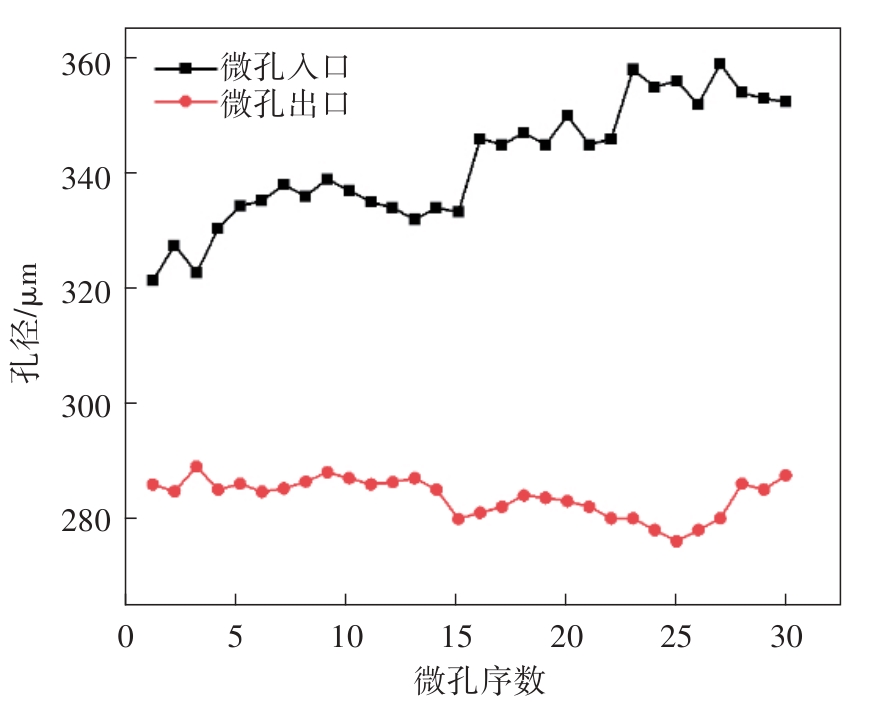

Fig. 8 Changed trend of the inlet and outlet diameters of the micro-holes

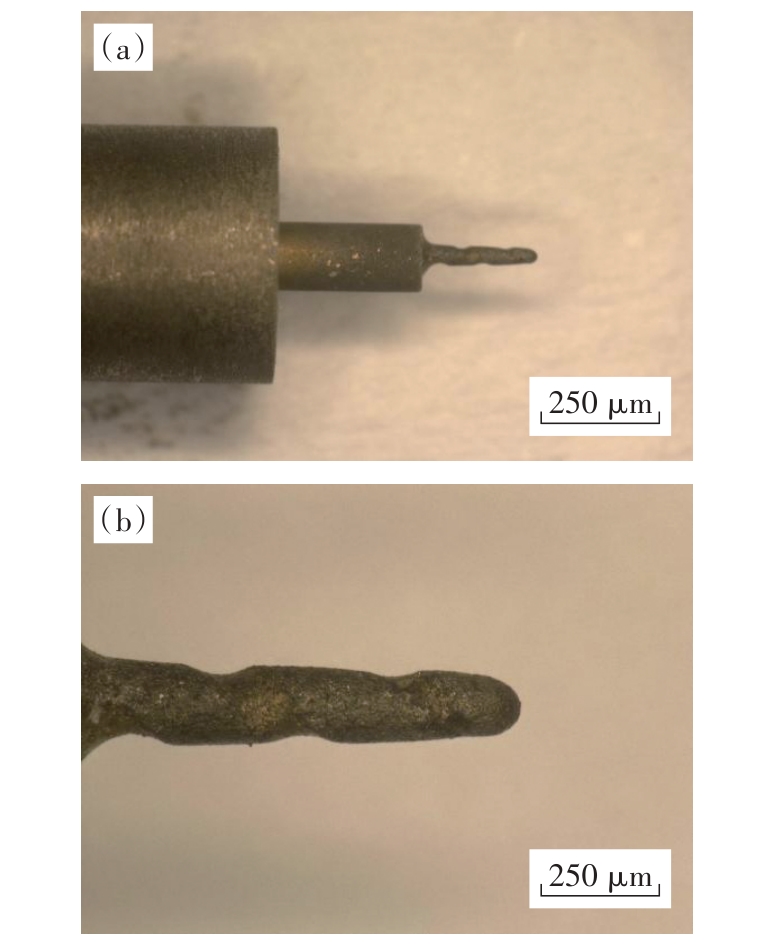

Fig. 9 Spiral microelectrode after fabricating the monocrystalline silicon micro-holes

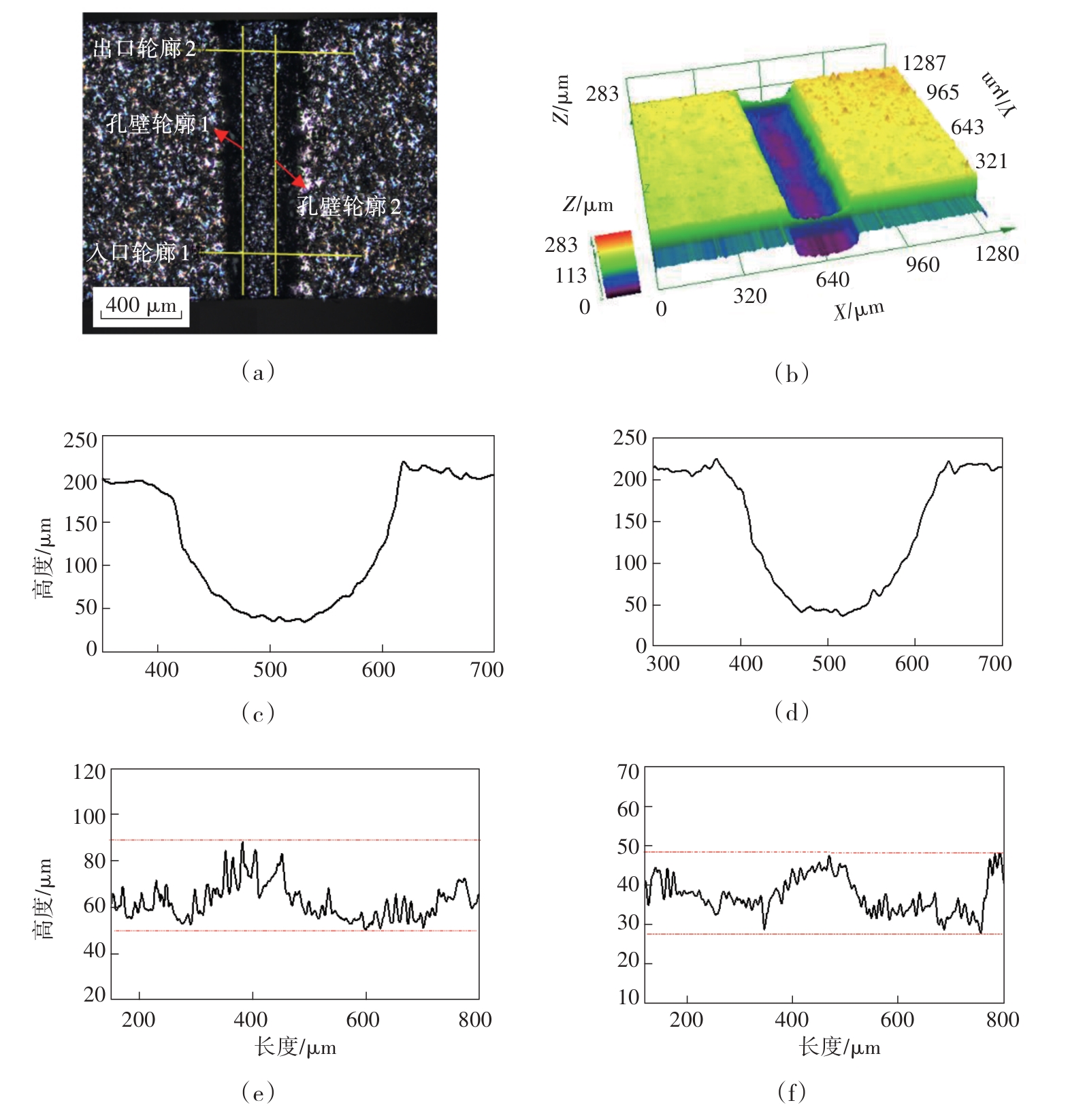

Fig. 10 Cross-sectional profiles and three-dimensional surface of the micro-holes on the monocrystalline silicon machined by EDM

References 19

1	Wang X Z， Yi S， Easton M， et al. Active gap capacitance electrical discharge machining of polycrystalline diamond［J］. Journal of Materials Processing Technology， 2020， 280： 116598.
2	Sun Y， Gong Y D， Wen X L， et al. Micro milling characteristics of LS-WEDM fabricated helical and corrugated micro end mill［J］. International Journal of Mechanical Sciences， 2020， 167： 105277.
3	Coelho F， Koshy P. Vibration damping capability of electrical discharge machined surfaces： characteristics， mechanism and application［J］. International Journal of Machine Tools and Manufacture， 2022， 177： 103888.
4	Bangash M K， Casalegno V， Kumar D A， et al. Surface machining of Ti₆Al₄V by means of micro-electrical discharging to improve adhesive joining［J］. Journal of Materials Processing Technology， 2020， 286： 116813.
5	Kuriachen B， Varghese A， Somashekhar K P， et al. Three-dimensional numerical simulation of microelectric discharge machining of Ti-6Al-4V［J］. The International Journal of Advanced Manufacturing Technology， 2015， 79： 147-160.
6	Li G D， Natsu W， Yu Z Y. Elucidation of the mechanism of the deteriorating interelectrode environment in micro EDM drilling［J］. International Journal of Machine Tools and Manufacture， 2021， 167： 103747.
7	Hosseini E， Rehman S， Alimoradi A. Surface integrity of fatigue strength of nickel based super alloy in turning by wire electrical discharge process［J］. Proceedings of the Institution of Mechanical Engineers， Part B： Journal of Engineering Manufacture， 2022， 236（3）： 135-145.
8	高连，刘志东，邱明波，等. 电火花线切割单晶硅的损伤层［J］. 硅酸盐学报， 2011，39（5）： 874-879.
	Gao Lian， Liu Zhi-dong， Qiu Ming-bo， et al. Damaged layer of monocrystalline silicon cut by wire electrical discharge machining［J］. Journal of the Chinese Ceramic Society， 2011， 39（5）： 874-879.
9	Xu B， Feng T， Wu X Y， et al. Micro-EDM of micro-stepped hole based on the wear of micro-bit［J］. Materials and Manufacturing Processes， 2022， 37（3）： 349-358.
10	Barman S， Hanumaiah N， Puri A B. Investigation on shape， size， surface quality and elemental characterization of high-aspect-ratio blind micro holes in die sinking micro EDM［J］. The International Journal of Advanced Manufacturing Technology， 2015， 76： 115-126.
11	Liu Q Y， Zhang Q H， Zhang M， et al. Effects of surface layer of AISI 304 on micro EDM performance［J］. Precision Engineering， 2019， 57： 195-202.
12	Bellotti M， Qian J， Reynaerts D. Enhancement of the micro-EDM process for drilling through-holes［J］. Procedia CIRP， 2018， 68： 610-615.
13	Tiwary A P， Pradhan B B， Bhattacharyya B. Investigation on the effect of dielectrics during micro-electro-discharge machining of Ti-6Al-4V［J］. The International Journal of Advanced Manufacturing Technology， 2018， 95： 861-874.
14	Tamang S K， Natarajan N， Chandrasekaran M. Optimization of EDM process in machining micro holes for improvement of hole quality［J］. Journal of the Brazilian Society of Mechanical Sciences and Engineering， 2017， 39（4）： 1277-1287.
15	Kuriakose S， Patowari P K， Bhatt J. Effect of micro-EDM machining parameters on the accuracy of micro hole drilling in Zr-based metallic glass［J］. Engineering Research Express， 2020， 2（1）： 015001.
16	路雄，李淑娟，辛彬，等. 单晶硅的电火花线切割过程建模与控制［J］. 机械工程学报， 2018，54（17）： 149-156.
	Lu Xiong， Li Shu-juan， Xin Bin， et al. Modeling and control of WEDM process of silicon single crystal［J］. Journal of Mechanical Engineering， 2018， 54（17）： 149-156.
17	葛培琪，陈自彬，王沛志. 单晶硅切片加工技术研究进展［J］. 金刚石与磨料磨具工程， 2020，40（4）： 12-18.
	Ge Pei-qi， Chen Zi-bin， Wang Pei-zhi. Review of monocrystalline silicon slicing technology［J］. Diamond & Abrasives Engineering， 2020， 40（4）： 12-18.
18	周云光，巩亚东，高奇，等. 单晶硅微尺度侧磨表面质量影响因素试验研究［J］. 东北大学学报（自然科学版）， 2017， 38（7）： 983-988.
	Zhou Yun-guang， Gong Ya-dong， Gao Qi， et al. Experimental study on influencing factor of surface quality in micro side grinding of single crystal silicon［J］. Journal of Northeastern University （Natural Science）， 2017， 38（7）： 983-988.
19	Sun Z W， To S， Yu K M. Feasibility investigation on ductile machining of single-crystal silicon for deep micro-structures by ultra-precision fly cutting［J］. Journal of Manufacturing Processes， 2019， 45： 176-187.
