Journal of Northeastern University(Natural Science) ›› 2025, Vol. 46 ›› Issue (5): 87-94.DOI: 10.12068/j.issn.1005-3026.2025.20230320
• Mechanical Engineering • Previous Articles Next Articles
Xian-zhen HUANG1,2(), Ming-fei MA1, Zhi-yuan JIANG1, Kai-hui QIU3
Received:
2023-11-30
Online:
2025-05-15
Published:
2025-08-07
Contact:
Xian-zhen HUANG
CLC Number:
Xian-zhen HUANG, Ming-fei MA, Zhi-yuan JIANG, Kai-hui QIU. Reliability Optimization of CNC Machine Tool Rotary Tables[J]. Journal of Northeastern University(Natural Science), 2025, 46(5): 87-94.

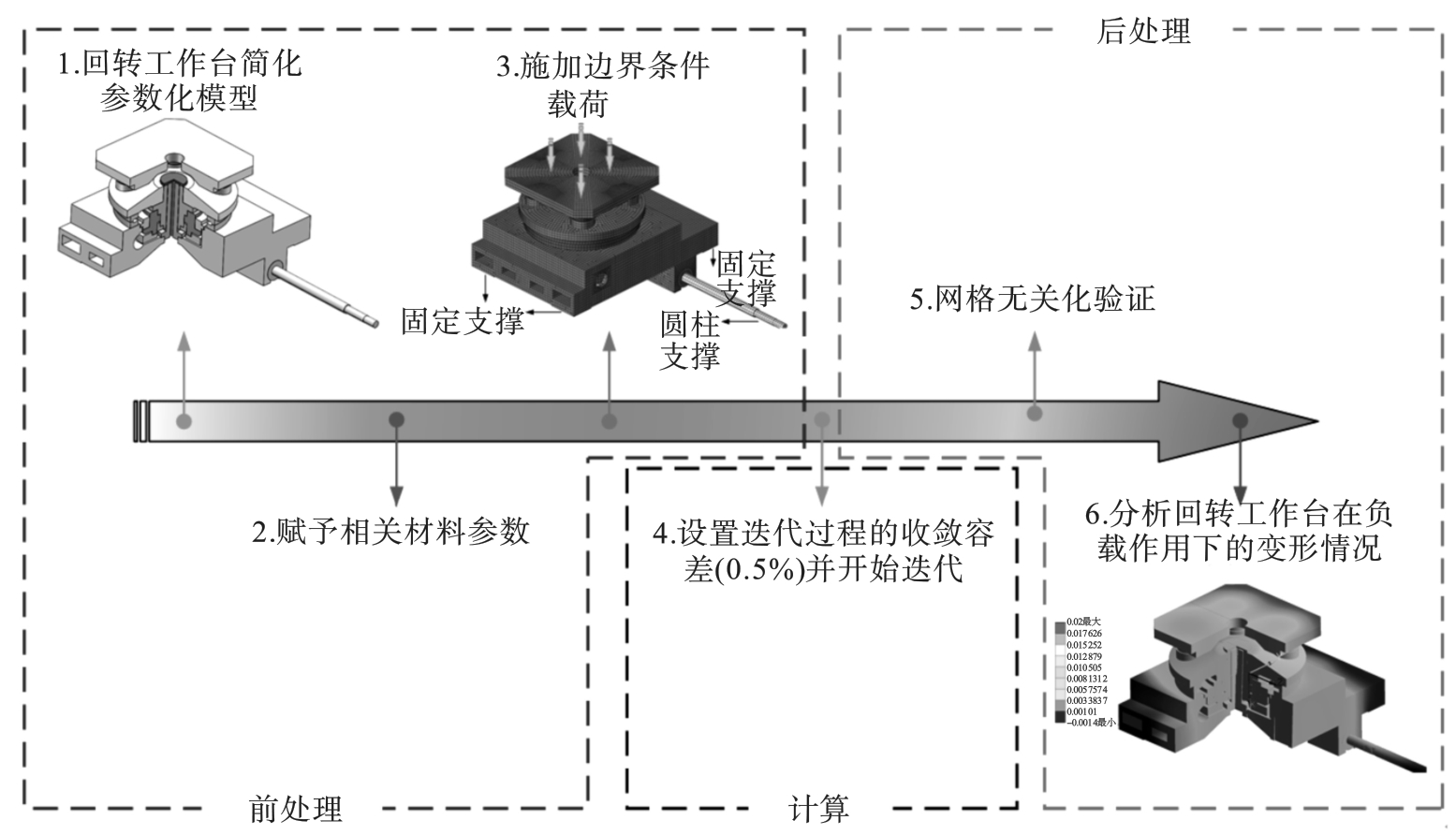

零件 | 材料 | 质量/kg |
---|---|---|
工作台板 | HT300 | 188 |
回转座 | HT300 | 150 |
滑座 | HT300 | 580 |
鼠牙盘 | 38CrMoAlA | 20×2 |
分油轴 | 45钢 | 13.7 |
活塞 | 45钢 | 39 |
油缸体 | 45钢 | 62 |
油缸端盖 | 45钢 | 5.6 |
蜗轮 | ZQSn10-1 | 29.6 |
蜗杆 | 38CrMoAlA | 9.2 |
转台轴承 | GCR15SiMn | 25 |
Table 1 Main structure and material properties of the rotary table

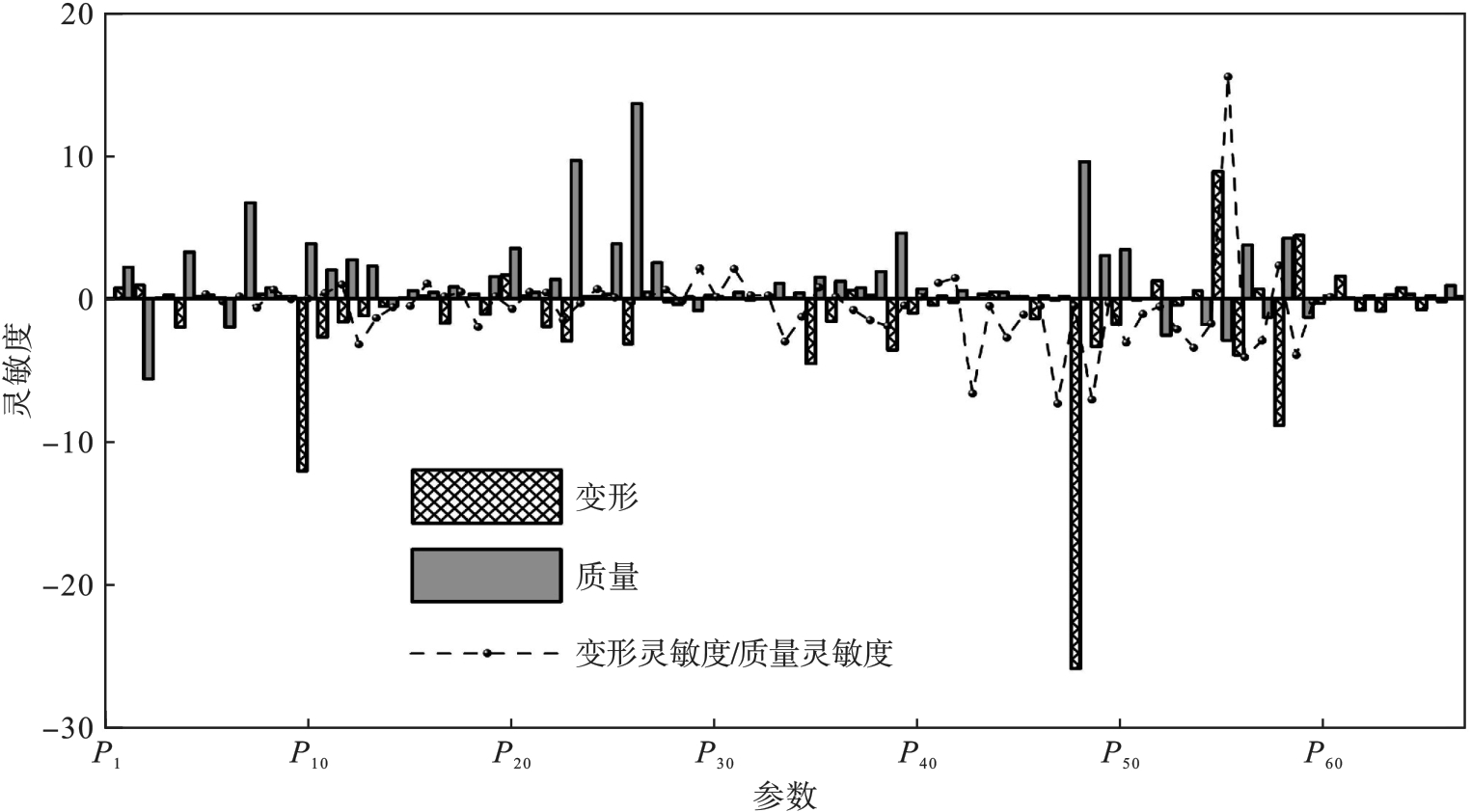

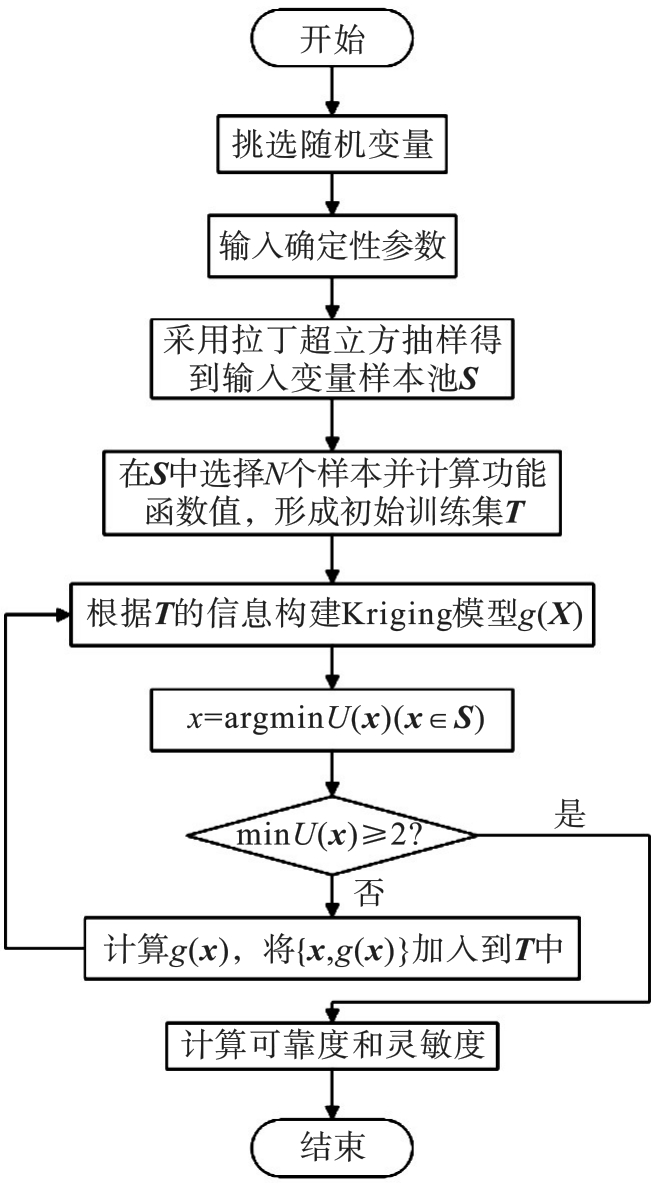

零件 | 材料 | 质量/kg |
---|---|---|
工作台板 | HT300 | 188 |
回转座 | HT300 | 150 |
滑座 | HT300 | 580 |
鼠牙盘 | 38CrMoAlA | 20×2 |
分油轴 | 45钢 | 13.7 |
活塞 | 45钢 | 39 |
油缸体 | 45钢 | 62 |
油缸端盖 | 45钢 | 5.6 |
蜗轮 | ZQSn10-1 | 29.6 |
蜗杆 | 38CrMoAlA | 9.2 |
转台轴承 | GCR15SiMn | 25 |
参数 | 分布类型 | 初始值/mm | 变异系数 |
---|---|---|---|
A1 | 正态分布 | 490 | 0.02 |
A2 | 正态分布 | 20 | 0.02 |
B1 | 正态分布 | 130 | 0.02 |
C1 | 正态分布 | 22.5 | 0.02 |
C2 | 正态分布 | 14 | 0.02 |
C3 | 正态分布 | 36 | 0.02 |
D1 | 正态分布 | 103 | 0.02 |
D2 | 正态分布 | 25 | 0.02 |
D3 | 正态分布 | 35.5 | 0.02 |
D4 | 正态分布 | 128 | 0.02 |
D5 | 正态分布 | 70 | 0.02 |
D6 | 正态分布 | 30 | 0.02 |
D7 | 正态分布 | 45 | 0.02 |
D8 | 正态分布 | 30 | 0.02 |
D9 | 正态分布 | 125 | 0.02 |

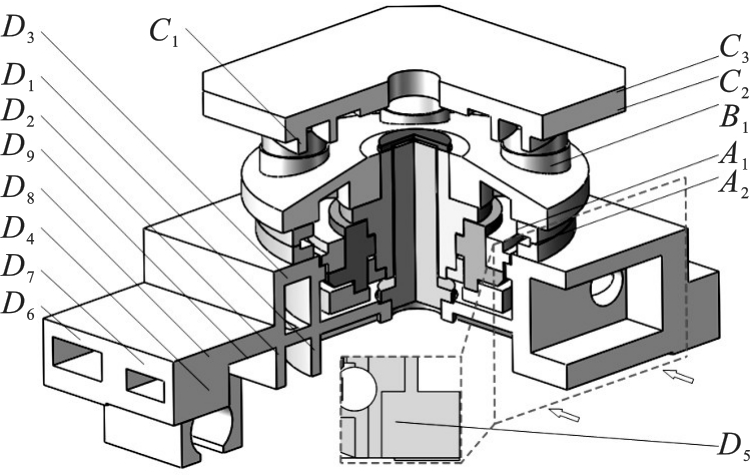

Table 2 Initial values and distribution details of the design variables

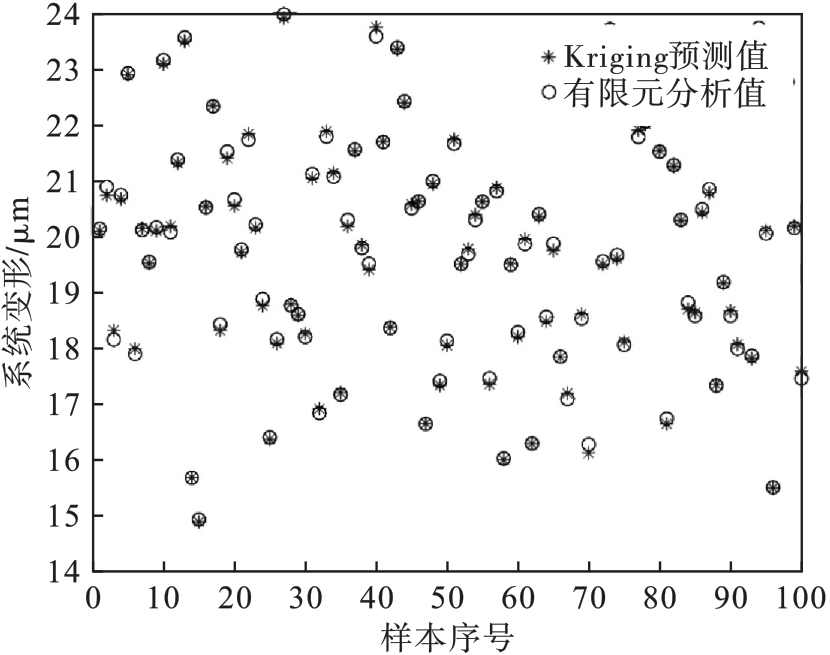

参数 | 分布类型 | 初始值/mm | 变异系数 |
---|---|---|---|
A1 | 正态分布 | 490 | 0.02 |
A2 | 正态分布 | 20 | 0.02 |
B1 | 正态分布 | 130 | 0.02 |
C1 | 正态分布 | 22.5 | 0.02 |
C2 | 正态分布 | 14 | 0.02 |
C3 | 正态分布 | 36 | 0.02 |
D1 | 正态分布 | 103 | 0.02 |
D2 | 正态分布 | 25 | 0.02 |
D3 | 正态分布 | 35.5 | 0.02 |
D4 | 正态分布 | 128 | 0.02 |
D5 | 正态分布 | 70 | 0.02 |
D6 | 正态分布 | 30 | 0.02 |
D7 | 正态分布 | 45 | 0.02 |
D8 | 正态分布 | 30 | 0.02 |
D9 | 正态分布 | 125 | 0.02 |
参数 | 区间/mm | 参数 | 区间/mm |
---|---|---|---|
A1 | 460~570 | D3 | 20~50 |
A2 | 5~30 | D4 | 115~145 |
B1 | 70~150 | D5 | 60~80 |
C1 | 10~80 | D6 | 20~40 |
C2 | 5~32 | D7 | 35~55 |
C3 | 5~50 | D8 | 15~45 |
D1 | 80~115 | D9 | 80~130 |
D2 | 20~40 |
Table 3 Optimization intervals of design variables

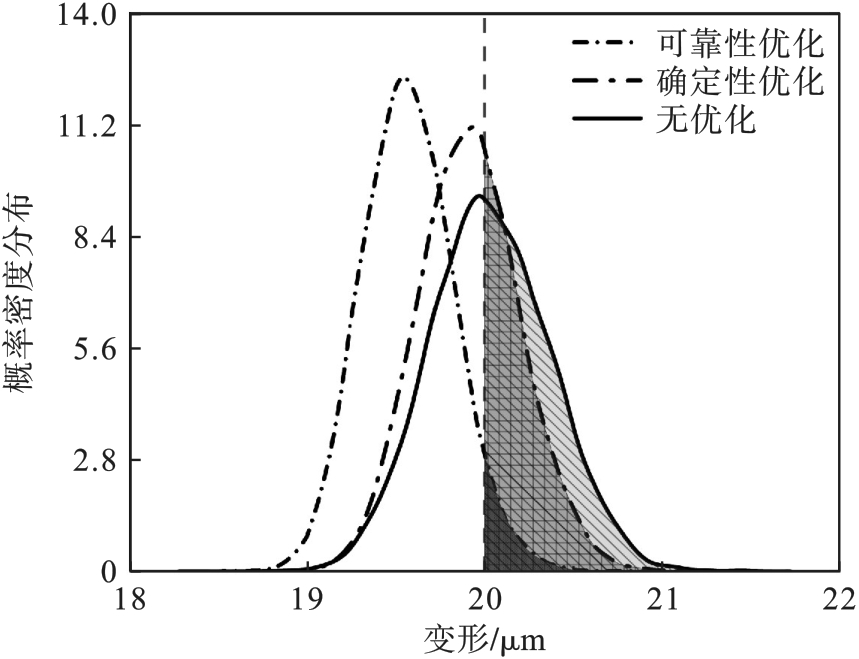

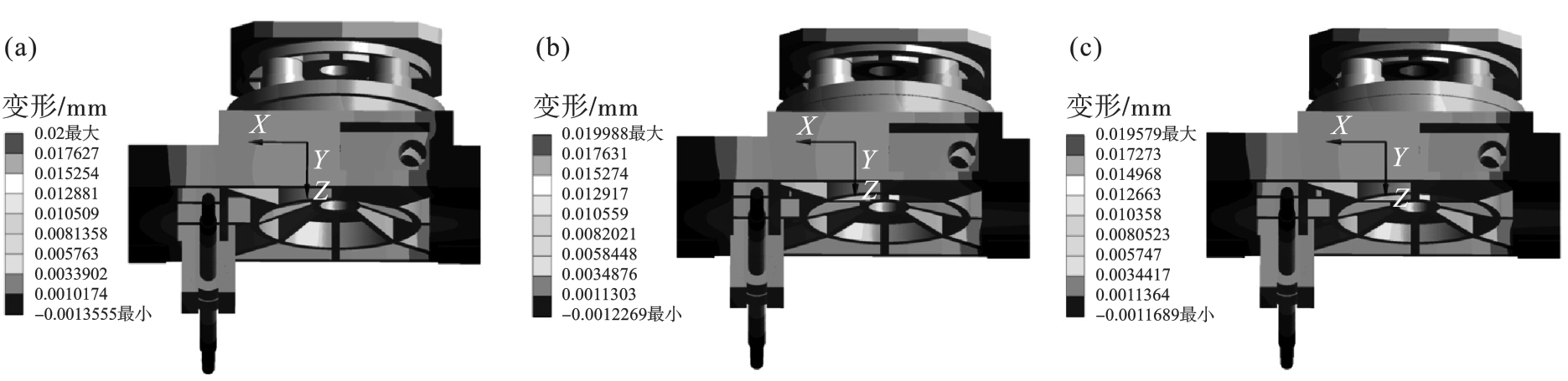

参数 | 区间/mm | 参数 | 区间/mm |
---|---|---|---|
A1 | 460~570 | D3 | 20~50 |
A2 | 5~30 | D4 | 115~145 |
B1 | 70~150 | D5 | 60~80 |
C1 | 10~80 | D6 | 20~40 |
C2 | 5~32 | D7 | 35~55 |
C3 | 5~50 | D8 | 15~45 |
D1 | 80~115 | D9 | 80~130 |
D2 | 20~40 |
变量 | 无优化 | 确定性优化 | 可靠性优化 |
---|---|---|---|
A1/mm | 490 | 537.922 | 538.236 |
A2/mm | 20 | 18.000 | 18.191 |
B1/mm | 130 | 138.480 | 140.000 |
C1/mm | 22.5 | 48.275 | 68.082 |
C2/mm | 14 | 24.961 | 25.000 |
C3/mm | 36 | 15.968 | 15.636 |
D1/mm | 103 | 80.000 | 80.000 |
D2/mm | 25 | 37.538 | 27.536 |
D3/mm | 35.5 | 20.000 | 21.276 |
D4/mm | 128 | 130.932 | 148.201 |
D5/mm | 70 | 60.750 | 60.152 |
D6/mm | 30 | 20.143 | 20.001 |
D7/mm | 45 | 35.486 | 35.995 |
D8/mm | 30 | 24.068 | 18.437 |
D9/mm | 125 | 103.489 | 123.492 |
变形/mm | 0.020 | 0.020 | 0.020 |
质量/t | 0.960 | 0.878 | 0.881 |

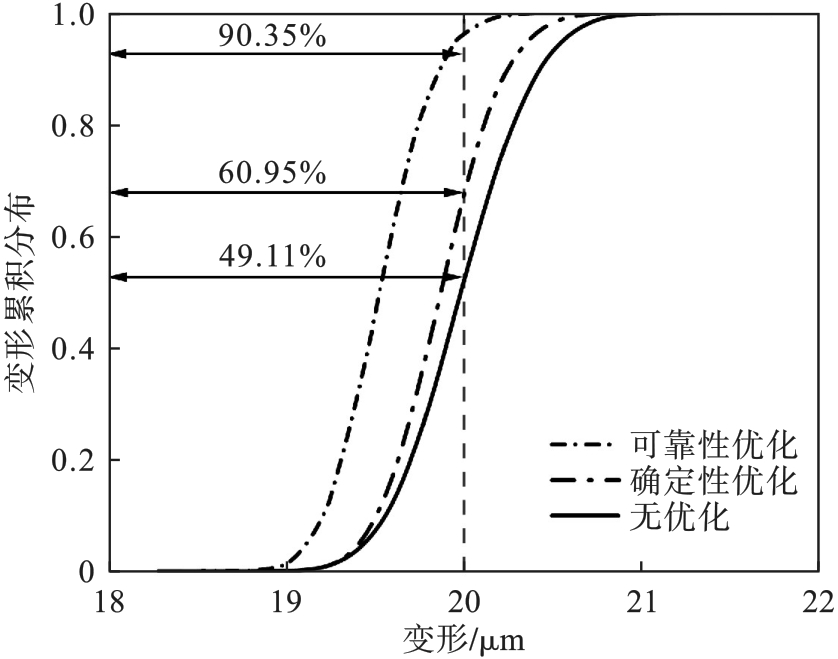

可靠性/% | 49.11 | 60.95 | 90.35 |
Table 4 Comparison of the optimization results
变量 | 无优化 | 确定性优化 | 可靠性优化 |
---|---|---|---|
A1/mm | 490 | 537.922 | 538.236 |
A2/mm | 20 | 18.000 | 18.191 |
B1/mm | 130 | 138.480 | 140.000 |
C1/mm | 22.5 | 48.275 | 68.082 |
C2/mm | 14 | 24.961 | 25.000 |
C3/mm | 36 | 15.968 | 15.636 |
D1/mm | 103 | 80.000 | 80.000 |
D2/mm | 25 | 37.538 | 27.536 |
D3/mm | 35.5 | 20.000 | 21.276 |
D4/mm | 128 | 130.932 | 148.201 |
D5/mm | 70 | 60.750 | 60.152 |
D6/mm | 30 | 20.143 | 20.001 |
D7/mm | 45 | 35.486 | 35.995 |
D8/mm | 30 | 24.068 | 18.437 |
D9/mm | 125 | 103.489 | 123.492 |
变形/mm | 0.020 | 0.020 | 0.020 |
质量/t | 0.960 | 0.878 | 0.881 |
可靠性/% | 49.11 | 60.95 | 90.35 |
