Damage Evolution Characteristics of Saturated Sandstone in Freeze-Thaw Cycles

doi:10.12068/j.issn.1005-3026.2025.20240070

Abstract

Abstract:

To reveal the deformation and damage mechanism of rock in cold region rock engineering under freeze-thaw cycles， the porosity changes and macroscopic strength mechanical properties of saturated sandstone were analyzed through laboratory freeze-thaw cycle tests， low-field nuclear magnetic resonance experiments， and acoustic emission （AE） monitoring. A coupled temperature， permeability， stress， and damage model for saturated rock under freeze-thaw cycles was developed and validated. Numerical simulations were carried out to investigate the porosity variation and damage evolution in saturated sandstone subjected to different freeze-thaw cycles. The results indicate that as freeze-thaw cycles increase， the porosity growth rate of sandstone increases， while the uniaxial compressive strength decreases， and the rate of strength reduction gradually accelerates. The changes in pore size and quantity lead to deterioration in the strength of sandstone. Freeze-thaw-induced damage in sandstone arises from the combined effects of freeze-thaw cycles and loading， with the damage variable eventually approaching 1 as strain increases. The findings offer theoretical insights and experimental data for understanding the mechanical characteristics of rocks in cold regions.

Key words: freeze-thaw cycle, nuclear magnetic resonance, porosity, damage evolution, coupled model

CLC Number:

TD 853

Tao XU, Jing-chang QIU, Yang YUAN, Bin XU. Damage Evolution Characteristics of Saturated Sandstone in Freeze-Thaw Cycles[J]. Journal of Northeastern University(Natural Science), 2025, 46(10): 132-142.

Figures/Tables 15

Table 1 Mineral composition and content in

石英	方英石	斜长石	钾长石	黏土矿物
21.1	22.4	29.4	22.4	4.7

Table 2 Initial average physical parameters of

烘干

质量/g

s

^-1

Table 2 Initial average physical parameters of

烘干

质量/g

干密度

饱和密度

饱和含水率%

纵波波速

g·cm^-3

m·

s

^-1

64.3

2.04

2.2

7.1

2 841

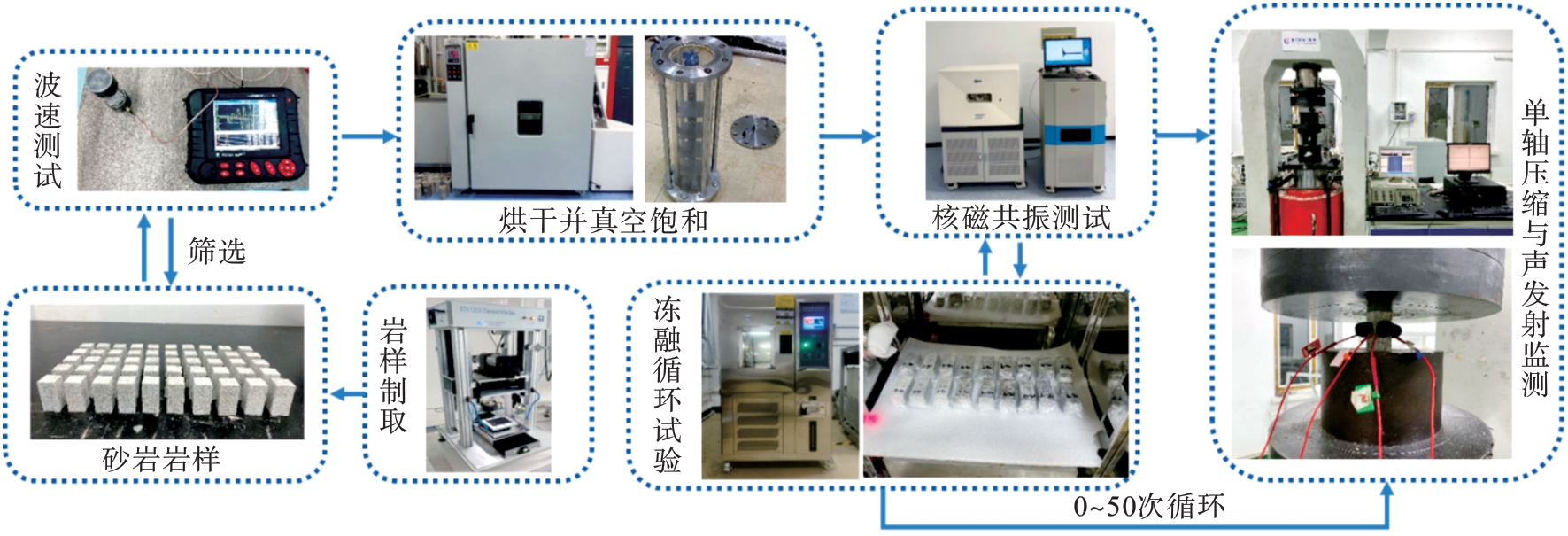

Fig.1 Freeze-thaw experimental setups and procedure

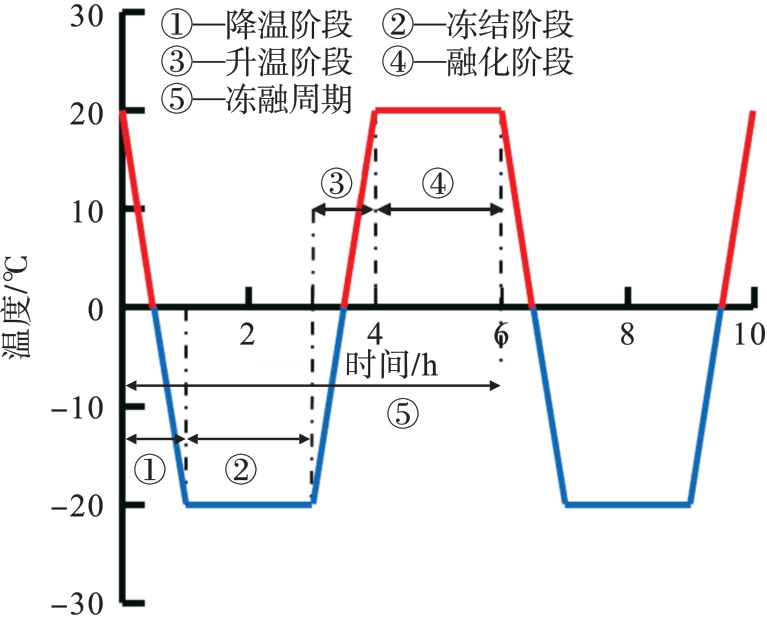

Fig.2 Freeze-thaw cycles for sandstone

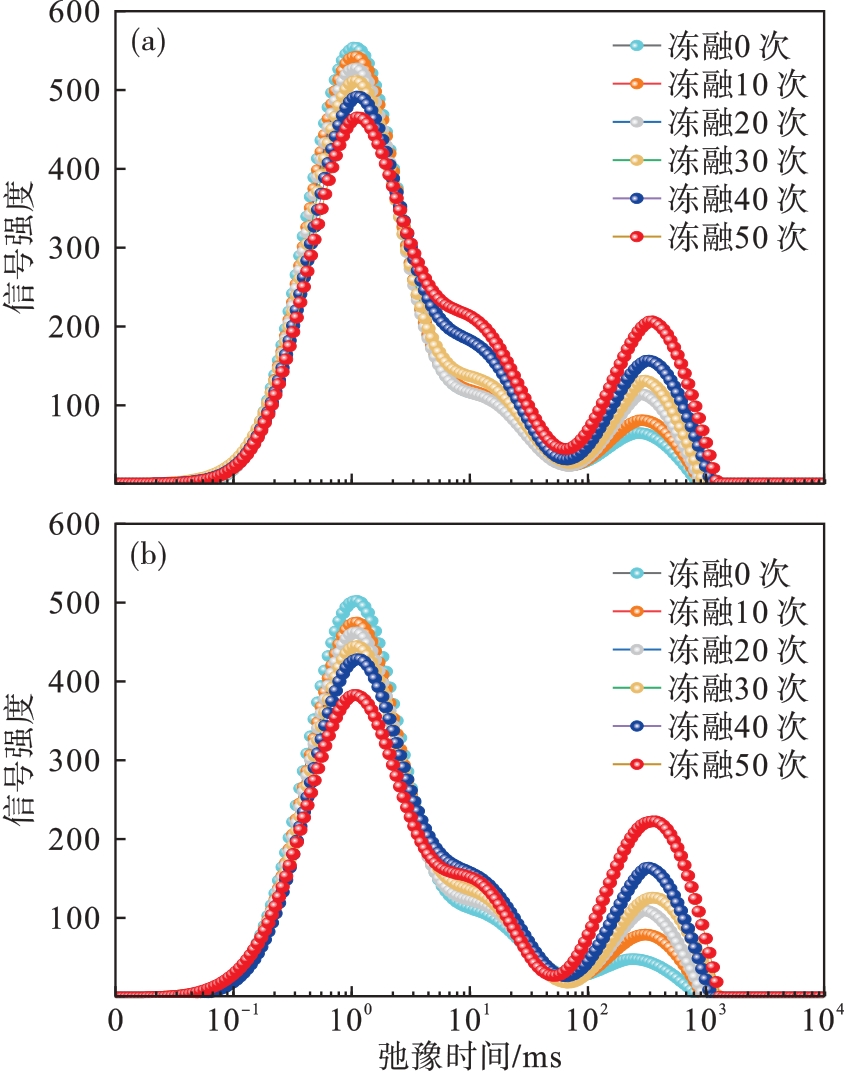

Fig.3 T2 distribution curves of sandstone under different freeze-thaw cycles

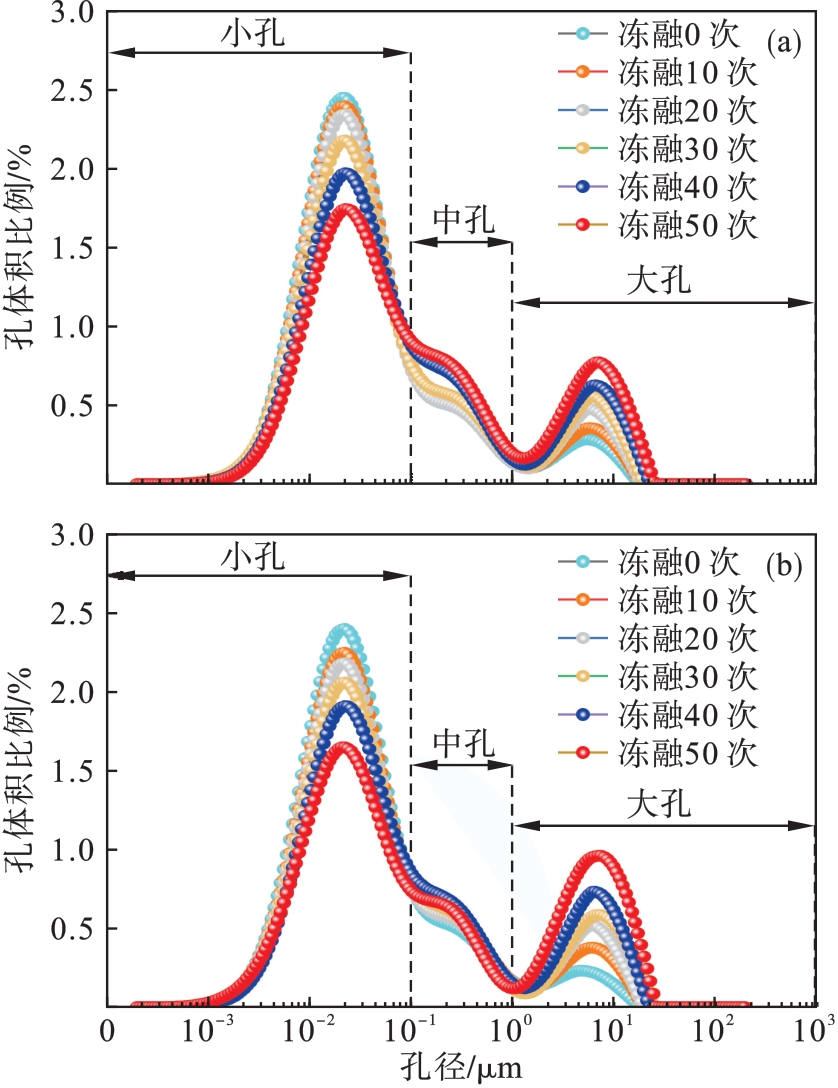

Fig.4 Pore size distribution curves of sandstone under different freeze-thaw cycles

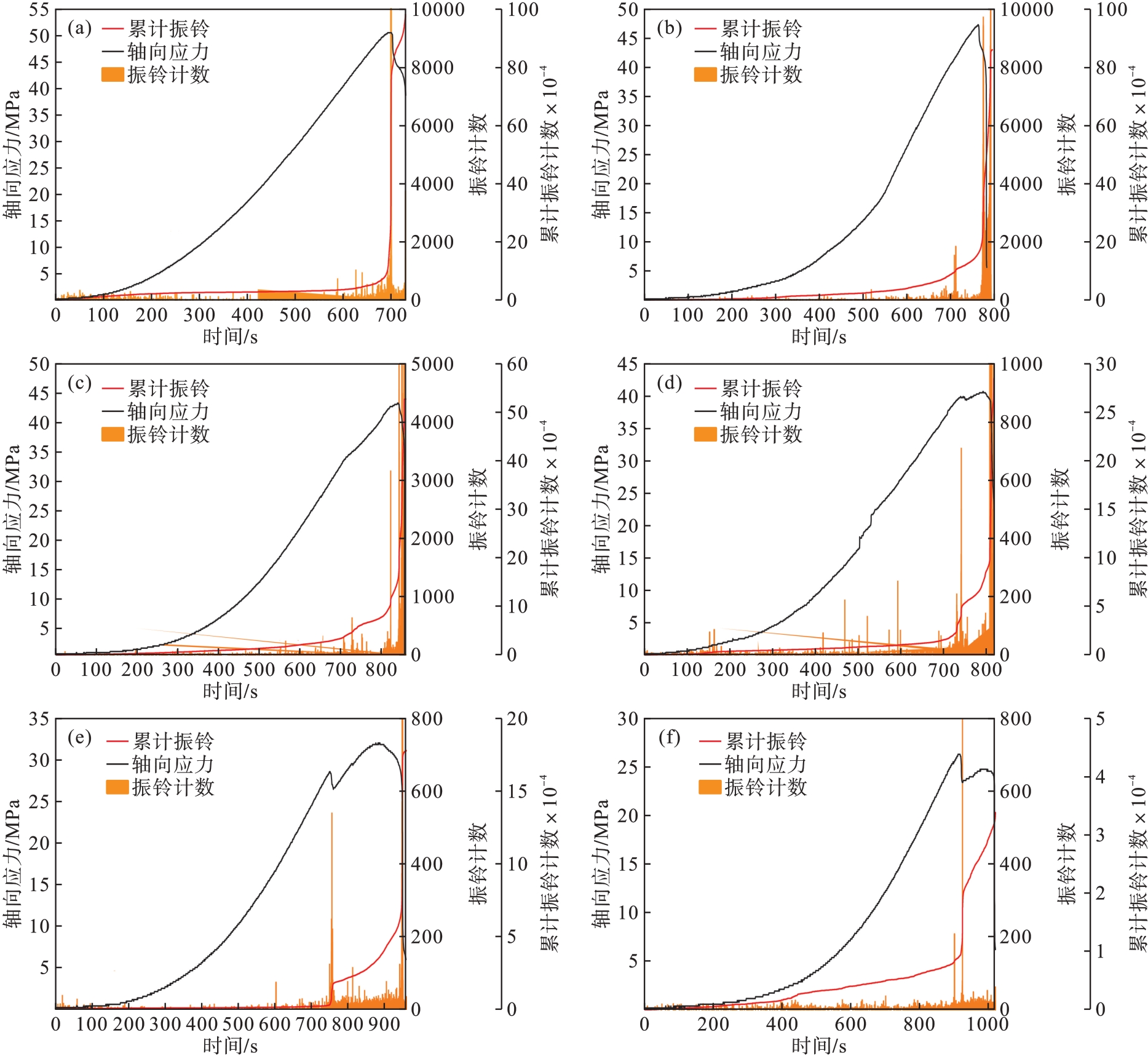

Fig.5 Axial stress-AE curves of sandstone under different freeze-thaw cycles

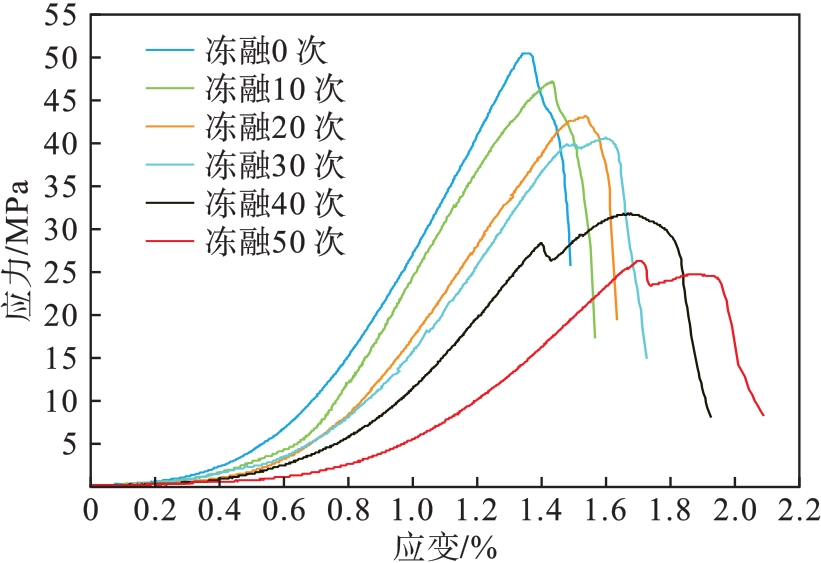

Fig.6 Stress-strain curves of sandstone under different freeze-thaw cycles

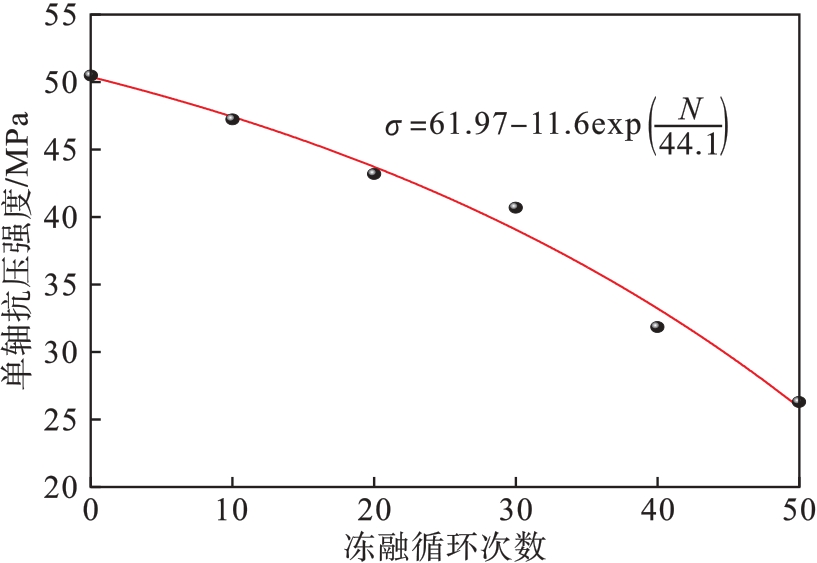

Fig.7 Uniaxial compressive strength of sandstone under different freeze-thaw cycles

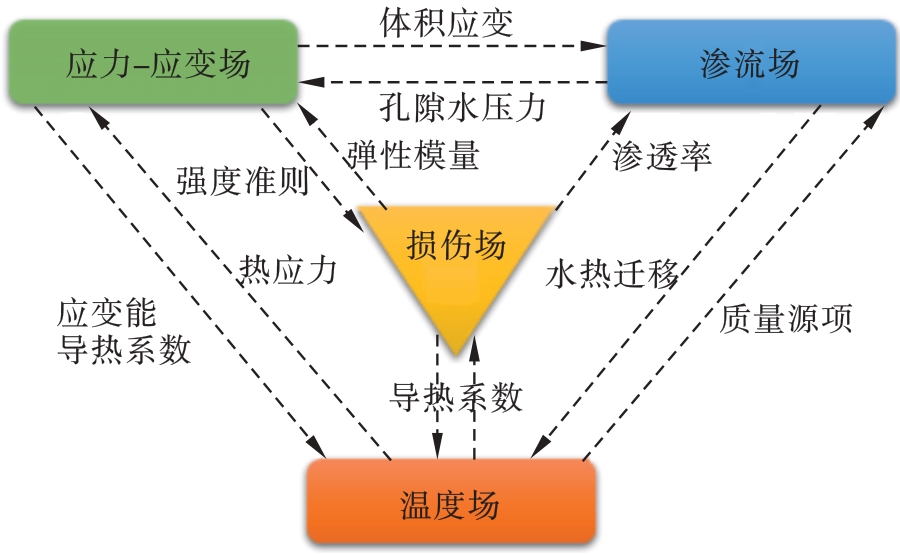

Fig.8 Multi-field coupling relationship

Table 3 Mechanical indicators of sandstone

基本属性	参数值
均质度 $m$	5
弹性模量 $E 0$ /GPa	4.5
抗压强度均值/MPa	50
孔隙度/%	16.15
泊松比	0.3
内摩擦角/(°)	40°
岩石导热系数/(W·m^-1·K^-1)	1.3
水导热系数/(W·m^-1·K^-1)	0.55
冰导热系数/(W·m^-1·K^-1)	2.2

Table 3 Mechanical indicators of sandstone

基本属性	参数值
均质度 $m$	5
弹性模量 $E 0$ /GPa	4.5
抗压强度均值/MPa	50
孔隙度/%	16.15
泊松比	0.3
内摩擦角/(°)	40°
岩石导热系数/(W·m^-1·K^-1)	1.3
水导热系数/(W·m^-1·K^-1)	0.55
冰导热系数/(W·m^-1·K^-1)	2.2

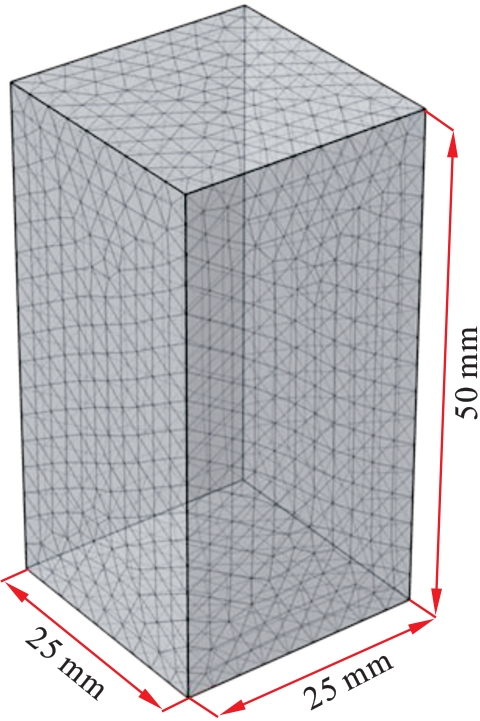

Fig.9 Numerical model for sandstone

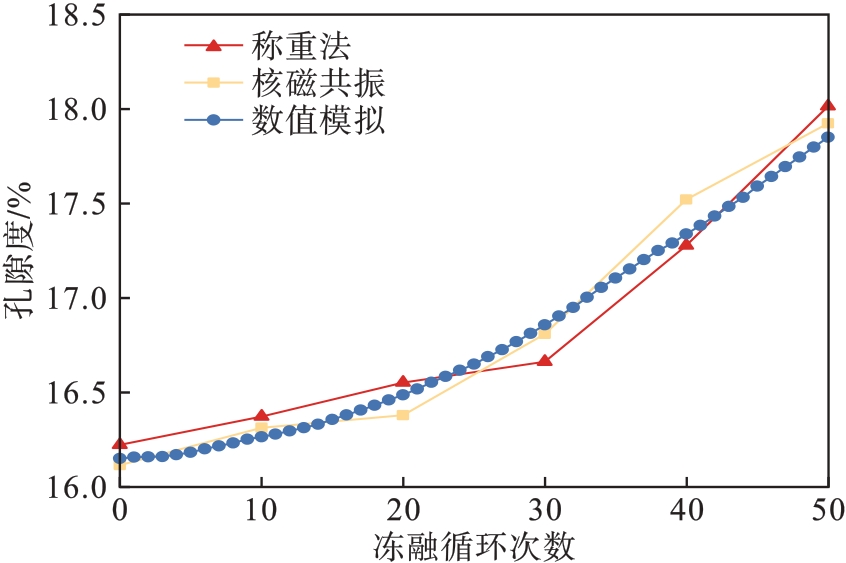

Fig.10 Porosity changes of sandstone during freeze-thaw cycles

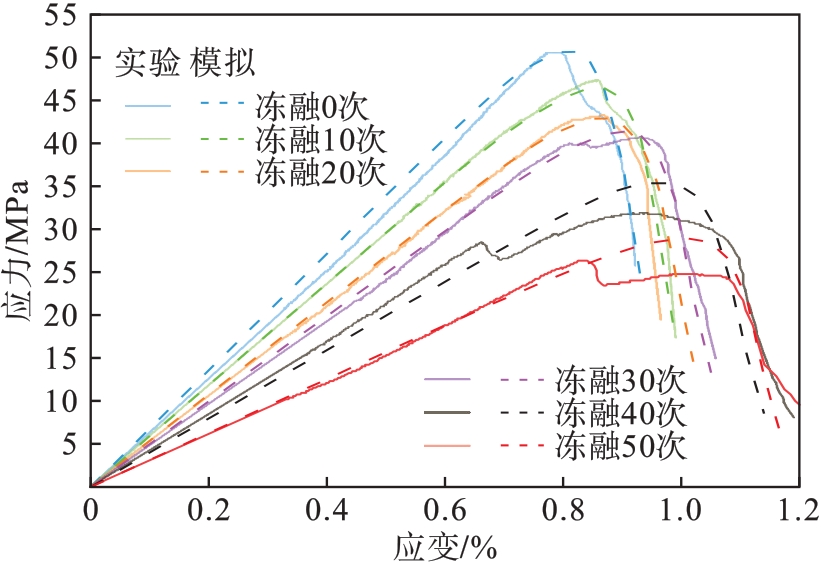

Fig.11 Experimental and simulated stress-strain curves of sandstone under different freeze-thaw cycles

Fig.12 Load-induced damage evolution curves of sandstone under different freeze-thaw cycles
