Research on Heavy Vehicle Rollover Stability Based on Fast Model Predictive Control

doi:10.12068/j.issn.1005-3026.2025.20240092

Abstract

Abstract:

In order to solve the problem that heavy vehicles are prone to rollover， an active safety control method based on fast model prediction was proposed. Firstly， a nonlinear dynamic model of the heavy vehicle was established， and the nonlinear system was transformed into a linear system by the T-S fuzzy method. A hierarchical control strategy was adopted， where the upper layer was designed to obtain the optimal yaw moment by the model predictive control （MPC） anti-rollover controller， and the lower layer utilized the unilateral wheel control method for the allocation of the braking force. Then， in order to reduce the computational burden of the controller， the Laguerre function was introduced to reconstruct the control input sequence， and the constraints were handled by the primal-dual interior point method to solve the quadratic programming function efficiently in real time. Finally， the co-simulation of MATLAB/Simulink and TruckSim was carried out under typical working conditions， and the results show that compared with the traditional MPC controller， the proposed fast MPC controller can effectively improve the computational efficiency while guaranteeing the performance and can avoid the vehicle rollover instability.

Key words: heavy vehicle, model predictive control, Laguerre function, primal-dual interior-point method, rollover stability

CLC Number:

U 463.6

Hong-wei WANG, Qing-qing ZHANG, Xun WANG. Research on Heavy Vehicle Rollover Stability Based on Fast Model Predictive Control[J]. Journal of Northeastern University(Natural Science), 2025, 46(11): 12-18.

Figures/Tables 10

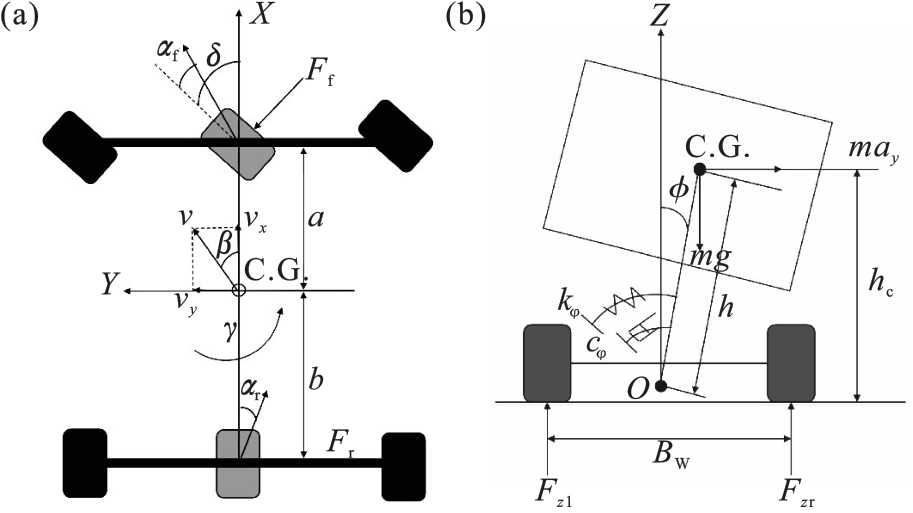

Fig.1 Vehicle dynamics model

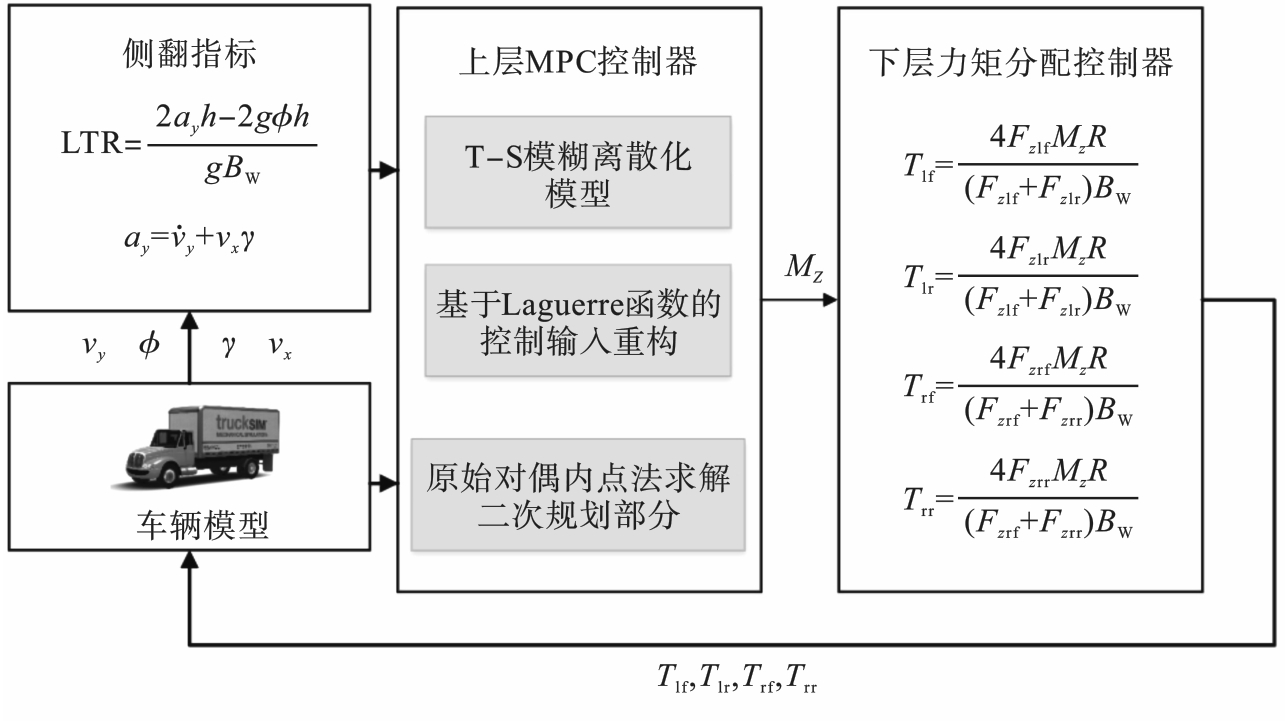

Fig.2 Rollover stability control block diagram

Table 1 Vehicle parameters

车辆参数	数值
$m / k g$	18 300
$m s / k g$	16 800
$h / m$	0.8
$a / m$	3.4
$b / m$	1.6
$I x /$ （kg·m²）	7 695.6
$I z /$ （kg·m²）	30 782.4
$B / m$	2.1
$c φ /$ （N·m·s·rad^-1）	487 050
$k φ /$ （kN·m·rad^-1）	4 000
$k f /$ （kN·rad^-1）	150
$k r /$ （kN·rad^-1）	350

Table 1 Vehicle parameters

车辆参数	数值
$m / k g$	18 300
$m s / k g$	16 800
$h / m$	0.8
$a / m$	3.4
$b / m$	1.6
$I x /$ （kg·m²）	7 695.6
$I z /$ （kg·m²）	30 782.4
$B / m$	2.1
$c φ /$ （N·m·s·rad^-1）	487 050
$k φ /$ （kN·m·rad^-1）	4 000
$k f /$ （kN·rad^-1）	150
$k r /$ （kN·rad^-1）	350

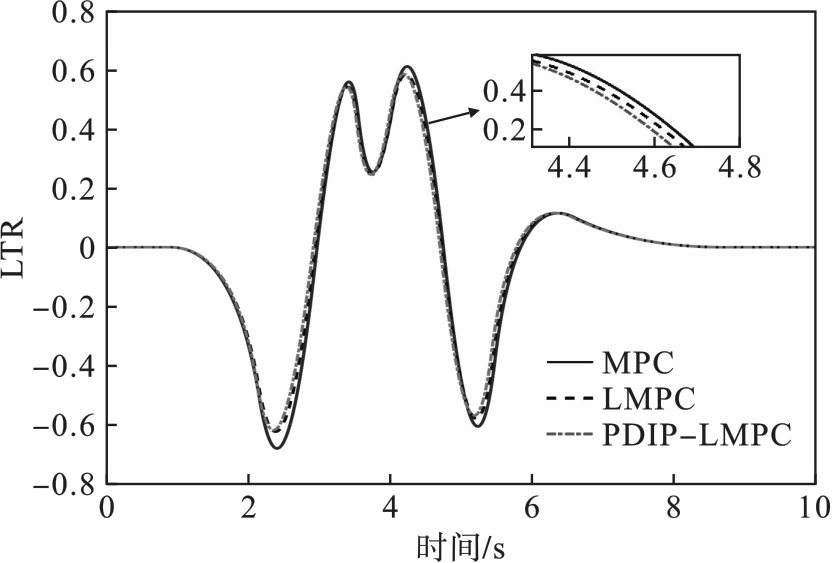

Fig.3 LTR index

Fig.4 Yaw velocity

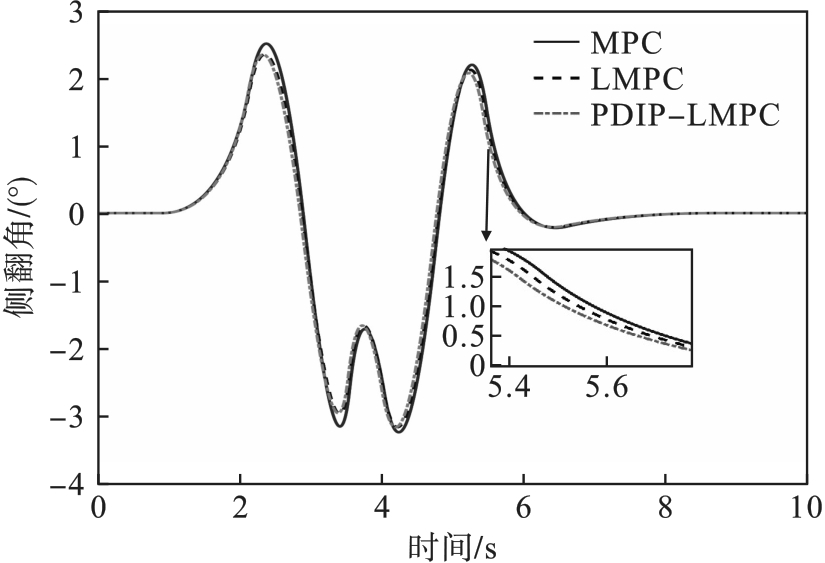

Fig.5 Rollover angle

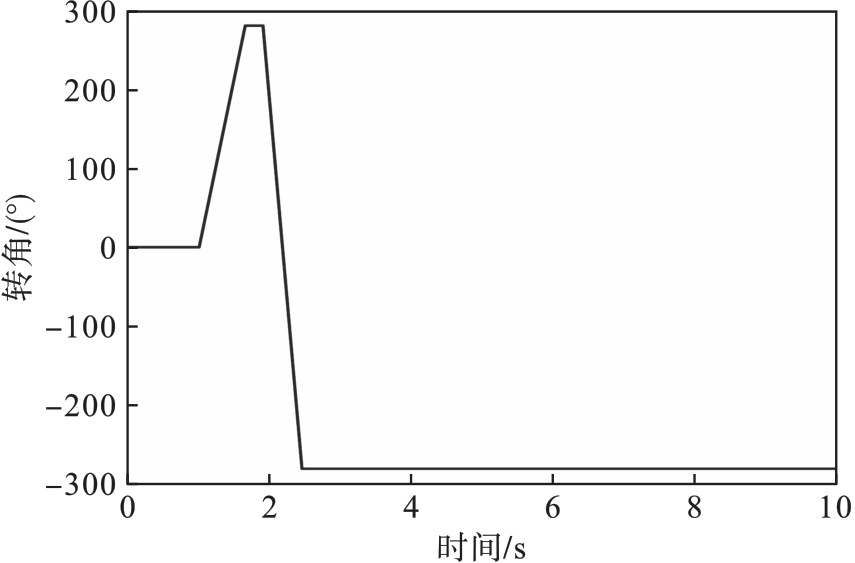

Fig.6 Steering input

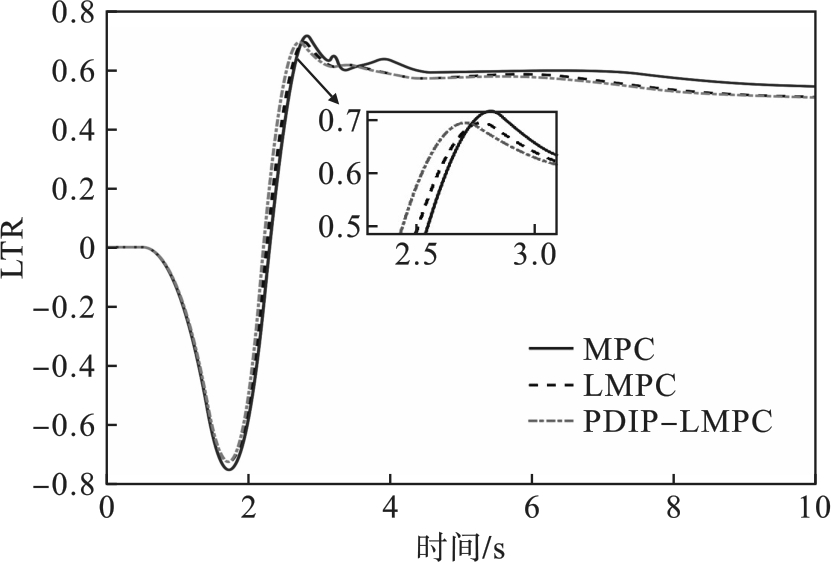

Fig.7 LTR index（fishhook condition）

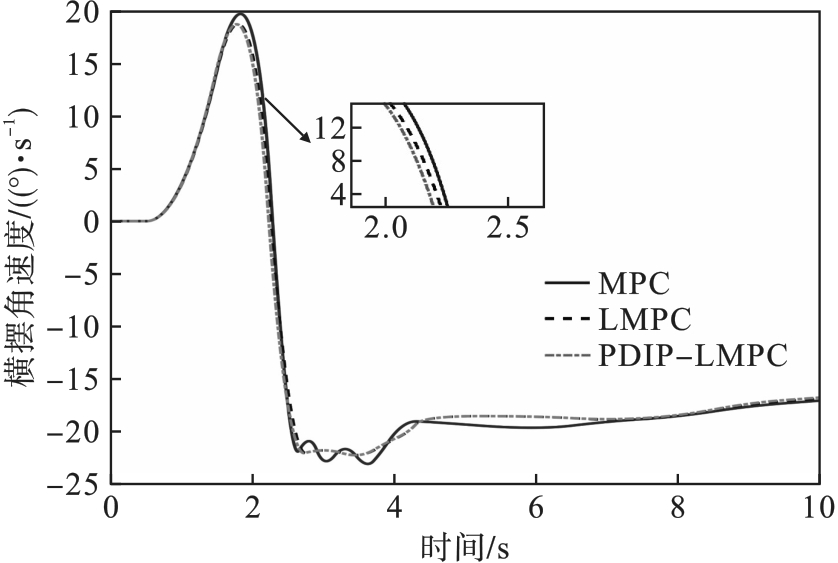

Fig.8 Yaw velocity（fishhook condition）

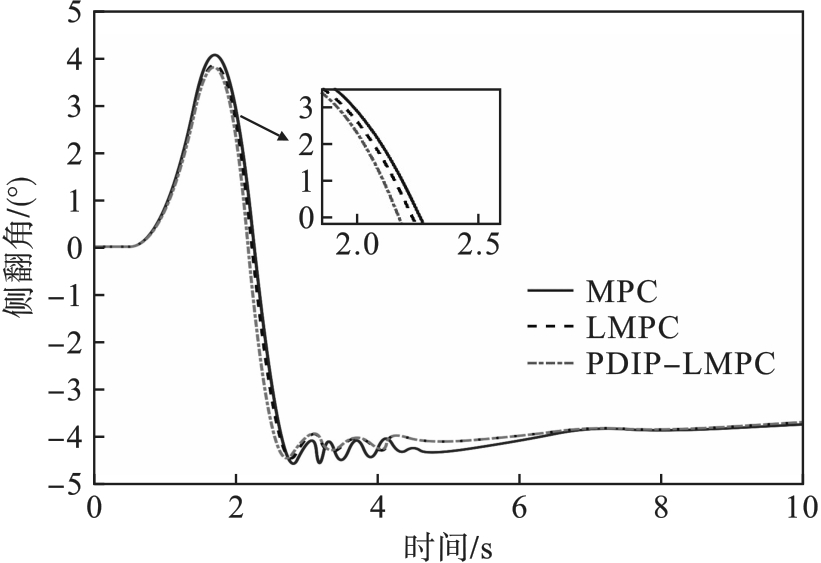

Fig.9 Rollover angle（fishhook condition）

References 14

[1]	Yang X W， Wu C Z， He Y， et al. A dynamic rollover prediction index of heavy-duty vehicles with a real-time parameter estimation algorithm using NLMS method［J］. IEEE Transactions on Vehicular Technology， 2022， 71（3）： 2734-2748.
[2]	Jin Z L， Zhang L， Zhang J L， et al. Stability and optimised H_∞ control of tripped and untripped vehicle rollover［J］. Vehicle System Dynamics， 2016，54（10）： 1405-1427.
[3]	Song Z S， Wang L L， Liu Y M， et al. Actively steering a wheeled tractor against potential rollover using a sliding-mode control algorithm： scaled physical test［J］. Biosystems Engineering， 2022， 213： 13-29.
[4]	Hu C， Wang Z F， Qin Y C， et al. Lane keeping control of autonomous vehicles with prescribed performance considering the rollover prevention and input saturation［J］. IEEE Transactions on Intelligent Transportation Systems， 2020， 21（7）： 3091-3103.
[5]	Zhang Y， Lu J W， Xia G， et al. Enhancing roll stability of counterbalance forklift trucks with a novel rollover index and hierarchical adaptive model predictive control［J］. IEEE Transactions on Vehicular Technology， 2024， 73（6）： 7925-7938.
[6]	Wang L P. Discrete model predictive controller design using Laguerre functions［J］. Journal of Process Control， 2004， 14（2）： 131-142.
[7]	Wang W R， Yan J H， Wang H， et al. Adaptive MPC trajectory tracking for AUV based on Laguerre function［J］. Ocean Engineering， 2022， 261： 111870.
[8]	Jeong D， Choi S B. Tracking control based on model predictive control using laguerre functions with pole optimization［J］. IEEE Transactions on Intelligent Transportation Systems， 2022， 23（11）： 20652-20663.
[9]	Panahi S， Kashani A， Danielson C. Primal-dual interior-point algorithm for symmetric model predictive control［J］. Automatica， 2023， 155： 111157.
[10]	Hu W J， Zhou Y H， Zhang Z L， et al. Model predictive control for hybrid levitation systems of maglev trains with state constraints［J］. IEEE Transactions on Vehicular Technology， 2021， 70（10）：9972-9985.
[11]	Chu D F， Li Z L， Wang J M， et al. Rollover speed prediction on curves for heavy vehicles using mobile smartphone［J］. Measurement， 2018， 130：404-411.
[12]	Larish C， Piyabongkarn D， Tsourapas V， et al. A new predictive lateral load transfer ratio for rollover prevention systems［J］. IEEE Transactions on Vehicular Technology， 2013， 62（7）：2928-2936.
[13]	李寿涛，魏玉博，李秋媛，等.考虑车辆侧偏刚度变化的MPC稳定性控制方法［J］.东北大学学报（自然科学版）， 2023， 44（2）： 162-167.
	Li Shou-tao， Wei Yu-bo， Li Qiu-yuan， et al. MPC stability control method considering the variation of vehicle’s cornering stiffness［J］. Journal of Northeastern University （Natural Science）， 2023， 44（2）： 162-167.
[14]	朱天军，麻威，王振峰，等.基于AdaBoost算法的重型车辆侧翻预警研究［J］.重庆交通大学学报（自然科学版）， 2021， 40（8）： 25-33.
	Zhu Tian-jun， Ma Wei， Wang Zhen-feng， et al. Rollover warning study of heavy vehicle based on AdaBoost algorithm［J］. Journal of Chongqing Jiaotong University （Natural Science）， 2021， 40（8）： 25-33.
