Application of Mean Teacher Method in Semi-supervised Medical Image Segmentation

doi:10.12068/j.issn.1005-3026.2026.20250103

Abstract

Abstract:

Medical image segmentation is an important technical basis for clinical diagnosis and treatment. Accurate medical image segmentation contributes to improving the accuracy and efficiency of disease diagnosis. Deep learning methods have made significant progress in this field. However， these methods are heavily dependent on manually labeled data， and the high cost of obtaining high-quality segmentation labels limits their practical application. Semi-supervised learning effectively alleviates the label scarcity problem by combining a small amount of labeled data with a large amount of unlabeled data. Mean teacher （MT） is a mainstream semi-supervised learning method. It leverages an exponential moving average to extract information from unlabeled data， enhancing model accuracy and generalization performance. Currently， MT has been widely adopted in medical image segmentation. In this paper， MT was comprehensively reviewed， focusing on its application and improvement in the medical image segmentation field from aspects such as consistency regularization， uncertainty， attention mechanism， multi-task learning， auxiliary correction， and model variants. Furthermore， trends in the application and enhancement of MT were briefly analyzed， and commonly used comparative experimental methods， datasets， backbone networks of MT， and evaluation metrics in medical image segmentation were summarized. Finally， existing challenges and potential future research directions in applying MT to medical image segmentation were discussed.

Key words: mean teacher, medical image segmentation, deep learning, semi-supervised learning, consistency regularization

CLC Number:

TP 751

Jin-zhu YANG, Mei WEI, Qi YU, Song SUN. Application of Mean Teacher Method in Semi-supervised Medical Image Segmentation[J]. Journal of Northeastern University(Natural Science), 2026, 47(1): 20-30.

Figures/Tables 7

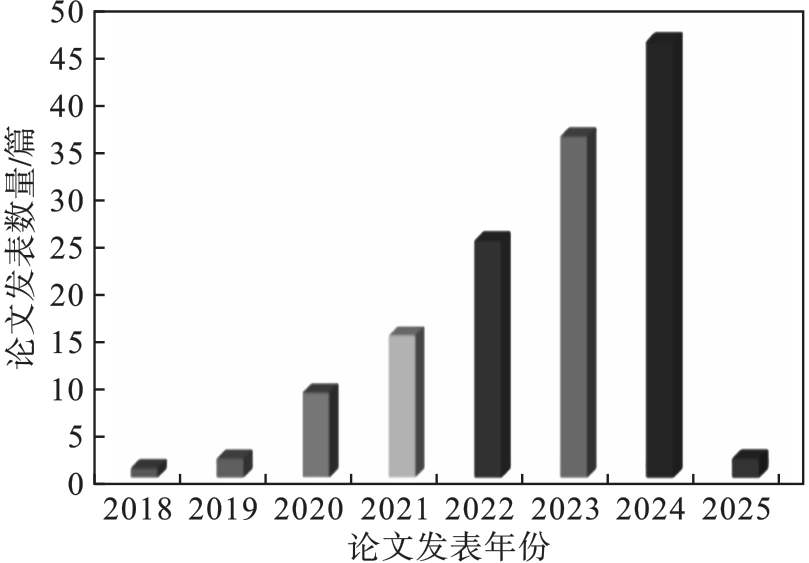

Fig.1 Annual publication trend of papers related to MT improvements from 2018 to February 2025

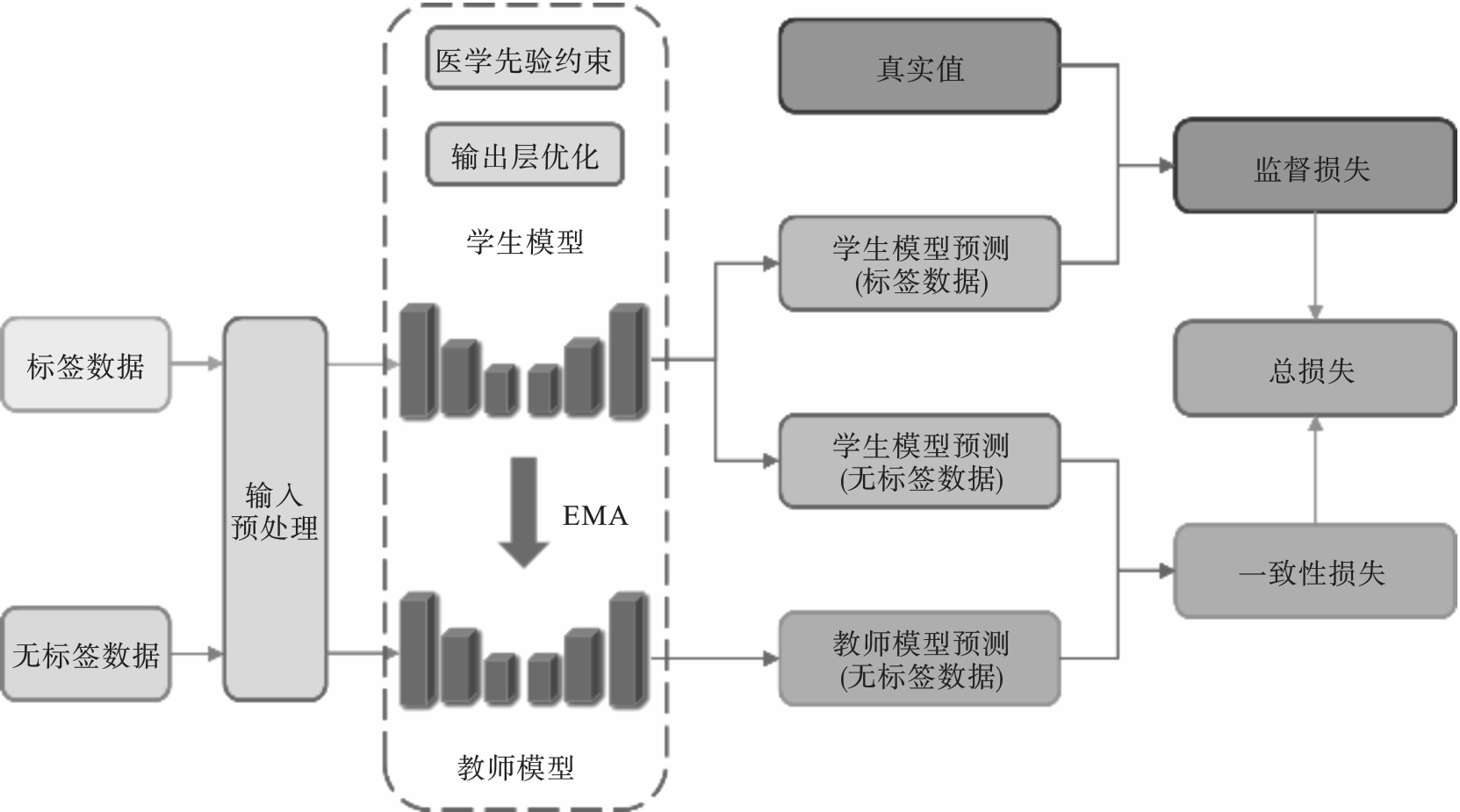

Fig.2 Flowchart of MT method

Table 1 Commonly used comparative experimental methods used in medical image segmentation papers based

方法名称	主要内容及优势
UA-MT^[24]	通过不确定性感知机制提高分割性能的3D磁共振左心房分割方法
DTC^[50]	基于双任务一致性的分割框架，引入任务级正则化和几何约束，通过联合预测像素级分割图和基于几何的水平集表示来降低计算成本
SASSNet^[51]	基于形状感知的3D语义分割方法，设计同时预测语义分割图和符号距离图的多任务深度网络，充分利用像素级信息，结合几何形状约束，提升网络捕捉复杂形状的能力
URPC ^[52]	用于鼻咽癌实体肿瘤靶区的分割框架，通过多尺度金字塔预测网络和不确定性校正模块，充分利用无标签数据中的丰富信息，降低对标签数据的需求
CPS^[53]	交叉伪标签监督的语义分割方法，在2个具有相同结构但不同初始化的分割网络之间施加一致性约束，利用伪标签相互监督，提高模型对无标签数据的利用效率
ICT^[7]	插值一致性算法，通过在无标签数据的插值上施加一致性约束，推动决策边界向低密度区域移动，减少过拟合并提高泛化能力
MC-Net ^[54]	相互一致性左心房分割框架，通过强调无标签数据中的小分支或模糊边缘等挑战性区域，结合不确定性估计和循环伪标签方案实现相互一致性训练
CCT^[55]	交叉一致性训练语义分割方法.通过在编码器的输出上施加不同扰动，并强制主解码器与辅助解码器之间的预测一致性，增强模型对无标签数据的学习能力
DAN^[56]	设计分割网络和评估网络形成对抗训练机制，设置超参数优化模型权重，加快收敛速度
SS-Net^[57]	结合像素级平滑和类别间分离，提升模型对抗扰动输出一致性和模糊区域特征提取能力
BCP^[58]	通过双向复制粘贴操作混合标签和无标签图像来增强模型对无标签数据的分割能力

Table 1 Commonly used comparative experimental methods used in medical image segmentation papers based

方法名称	主要内容及优势
UA-MT^[24]	通过不确定性感知机制提高分割性能的3D磁共振左心房分割方法
DTC^[50]	基于双任务一致性的分割框架，引入任务级正则化和几何约束，通过联合预测像素级分割图和基于几何的水平集表示来降低计算成本
SASSNet^[51]	基于形状感知的3D语义分割方法，设计同时预测语义分割图和符号距离图的多任务深度网络，充分利用像素级信息，结合几何形状约束，提升网络捕捉复杂形状的能力
URPC ^[52]	用于鼻咽癌实体肿瘤靶区的分割框架，通过多尺度金字塔预测网络和不确定性校正模块，充分利用无标签数据中的丰富信息，降低对标签数据的需求
CPS^[53]	交叉伪标签监督的语义分割方法，在2个具有相同结构但不同初始化的分割网络之间施加一致性约束，利用伪标签相互监督，提高模型对无标签数据的利用效率
ICT^[7]	插值一致性算法，通过在无标签数据的插值上施加一致性约束，推动决策边界向低密度区域移动，减少过拟合并提高泛化能力
MC-Net ^[54]	相互一致性左心房分割框架，通过强调无标签数据中的小分支或模糊边缘等挑战性区域，结合不确定性估计和循环伪标签方案实现相互一致性训练
CCT^[55]	交叉一致性训练语义分割方法.通过在编码器的输出上施加不同扰动，并强制主解码器与辅助解码器之间的预测一致性，增强模型对无标签数据的学习能力
DAN^[56]	设计分割网络和评估网络形成对抗训练机制，设置超参数优化模型权重，加快收敛速度
SS-Net^[57]	结合像素级平滑和类别间分离，提升模型对抗扰动输出一致性和模糊区域特征提取能力
BCP^[58]	通过双向复制粘贴操作混合标签和无标签图像来增强模型对无标签数据的分割能力

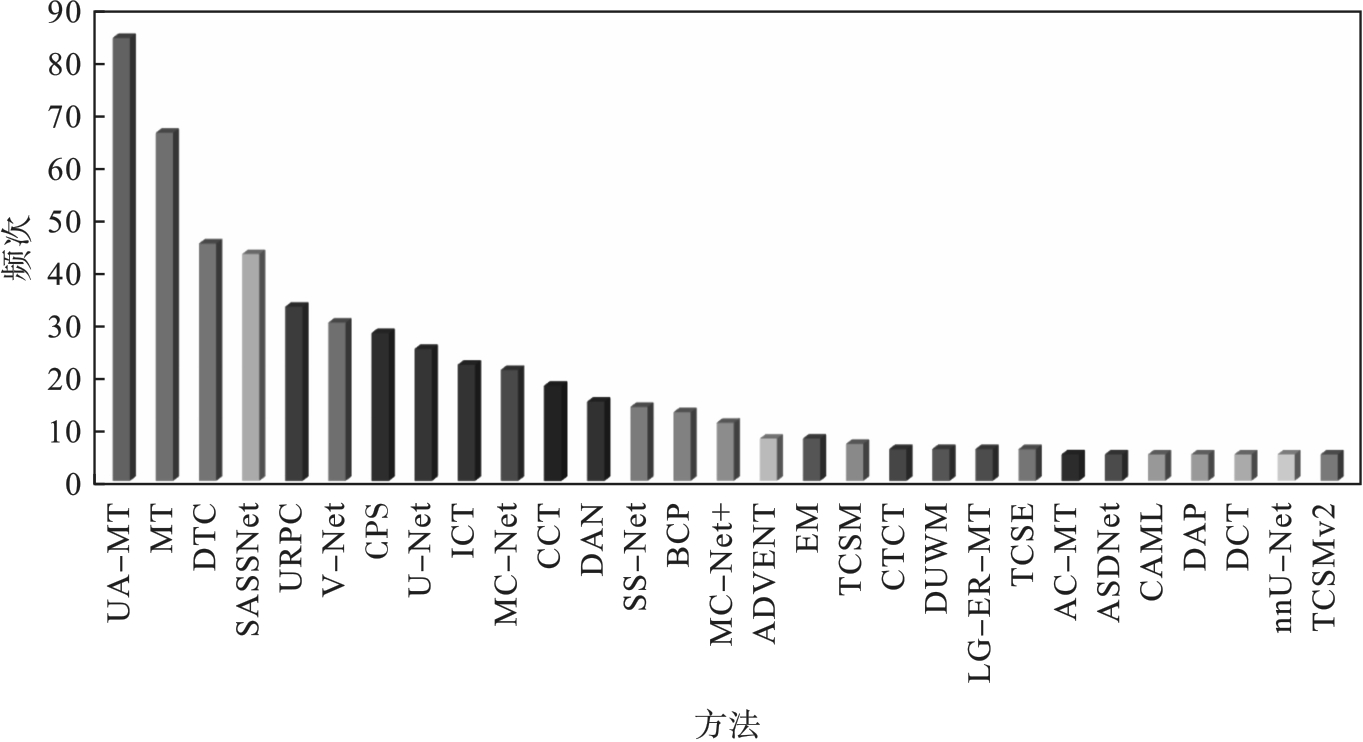

Fig.3 Common comparison methods and their frequencies

Table 2 Performance evaluation of common semi-supervised methods on 2018 Left Atrium Segmentation

方法名称	评价指标				标签数据数量
方法名称	Dice/%	Jaccard/%	ASD	95HD	labeled	unlabeled
MT^[5]	88.23	79.29	2.73	10.64	16	64
UA-MT^[24]	88.88	80.21	2.26	7.32	16	64
UA-MT^[24]	87.79	78.39	2.12	8.68	8	72
DTC^[50]	89.42	80.98	2.10	7.32	16	64
DTC^[50]	87.51	78.17	2.36	8.23	8	72
SASSNet^[51]	89.27	80.82	3.13	8.83	16	64
SASSNet^[51]	87.54	78.05	2.59	9.84	8	72
URPC^[52]	86.92	77.03	2.28	11.13	8	72
MC-Net^[54]	90.34	82.48	1.77	6.00	16	64
MC-Net^[54]	87.62	78.25	1.82	10.03	8	72
CCT^[55]	88.83	80.06	2.49	8.44	16	64
DAN^[56]	87.52	78.29	2.42	9.01	16	64
SS-Net^[57]	88.55	79.62	1.90	7.49	8	72
BCP^[58]	89.62	81.31	1.76	6.81	8	72

Table 3 Lists of common medical image segmentation datasets

数据集名称	器官	模态	规模/张	数据集描述
Spinal Cord Grey Matter Segmentation Challenge	脊髓	MRI	80	脊髓T2加权MRI，用于脊柱椎体分割 http://cmictig.cs.ucl.ac.uk/niftyweb/
2018 Left Atrium Segmentation Challenge	心脏	MRI	154	3D LGE-MRI完整心房扫描图像 https://www.cardiacatlas.org/atriaseg2018-challenge/ atria-seg-data/
Automatic Cardiac Diagnosis Challenge (ACDC)		MRI	150	心脏图像及左、右心室和心肌的标签 http://acdc.creatis.insa-lyon.fr/
MM-WHS 2017		MRI，CT	120	用于多模态全心分割 https://zmiclab.github.io/zxh/0/mmwhs/
CAMELYON16	细胞	WSI	400	用于乳腺癌淋巴结转移检测和病理分析 https://camelyon16.grand-challenge.org/
MoNuSeg			44	用于细胞核分割和病理图像分析 https://monuseg.grand-challenge.org/
CRAG			213	用于结直肠腺癌腺体和息肉分割 https://kddcup24.github.io/
DSB2018			1 039	用于细胞核分割 https://www.kaggle.com/c/data-science-bowl-2018/data

Table 4 Lists of common performance metrics for medical image segmentation

性能评价指标	定义	计算公式	取值范围	取值含义
Dice	预测结果与真实值间的相似度	$D i c e = 2 × X ⋂ Y X + Y$	[0,1]	数值越大表明分割效果越好
Jaccard	预测结果与真实值间的交并比	$J a c c a r d = X ⋂ Y X ⋃ Y$
准确率（Accuracy）	分割结果预测正确的像素比例	$A c c u r a c y = T P + T N T P + T N + F P + F N$
召回率（Recall）	正类真实值样本正确预测比例	$R e c a l l = T P T P + F N$
特异性（Specificity）	负类真实值样本正确预测比例	$S p e c i f i c i t y = T N T N + F P$
体积相似度 (VS)	分割结果与真实值体积相似度	$V S = 1 - X - Y X + Y$
Hausdorff距离	预测结果与真实值边界匹配程度	$H D A, B = m a x s u p α ∈ A a, B, s u p b ∈ B b, A$	[0, $∞)$	数值越小表明分割效果越好
ASD	预测结果与真实值平均表面距离	$A S D = 1 X + Y ∑ x ∈ X m i n y ∈ Y d x, y + ∑ y ∈ Y m i n x ∈ X d x, y$	[0, $∞)$	数值越小表明分割效果越好

Table 4 Lists of common performance metrics for medical image segmentation

性能评价指标	定义	计算公式	取值范围	取值含义
Dice	预测结果与真实值间的相似度	$D i c e = 2 × X ⋂ Y X + Y$	[0,1]	数值越大表明分割效果越好
Jaccard	预测结果与真实值间的交并比	$J a c c a r d = X ⋂ Y X ⋃ Y$
准确率（Accuracy）	分割结果预测正确的像素比例	$A c c u r a c y = T P + T N T P + T N + F P + F N$
召回率（Recall）	正类真实值样本正确预测比例	$R e c a l l = T P T P + F N$
特异性（Specificity）	负类真实值样本正确预测比例	$S p e c i f i c i t y = T N T N + F P$
体积相似度 (VS)	分割结果与真实值体积相似度	$V S = 1 - X - Y X + Y$
Hausdorff距离	预测结果与真实值边界匹配程度	$H D A, B = m a x s u p α ∈ A a, B, s u p b ∈ B b, A$	[0, $∞)$	数值越小表明分割效果越好
ASD	预测结果与真实值平均表面距离	$A S D = 1 X + Y ∑ x ∈ X m i n y ∈ Y d x, y + ∑ y ∈ Y m i n x ∈ X d x, y$	[0, $∞)$	数值越小表明分割效果越好
