Simulation and Experimental Verification of Grinding Forces in Profile Grinding of 18CrNiMo7-6 Steel

doi:10.12068/j.issn.1005-3026.2025.20249038

Abstract

Abstract:

In order to investigate the influence of process parameters on the grinding force in V-notch forming during cylindrical grinding of 18CrNiMo7-6 carburized steel， a cubic boron nitride （CBN） grinding wheel abrasive particle model composed of random polyhedra generated by cutting regular hexahedra with spatial random planes was constructed based on the machining process of fatigue specimens. A three-dimensional simulation model of V-notch forming during cylindrical grinding was established by using ABAQUS finite element simulation software. With the grinding wheel speed n_s， workpiece speed n_w， and radial feed speed v_r as independent variables， single-factor experiments were conducted to study the variation patterns of normal grinding force F_n and tangential grinding force F_t. The validity of the V-notch forming simulation model during plunge grinding was verified through forming grinding force experiments. The results indicate that the normal grinding force is consistently greater than the tangential grinding force， and compared with the workpiece speed and the radial feed speed， the influence of grinding wheel speed on grinding force is more significant. The simulation results agree well with experimental data， where the average errors for normal grinding force predicted by simulations of n_s， n_w， and v_r are 11.06%， 9.21%， and 10.77%， respectively， and those for tangential grinding force are 9.89%， 13.89%， and 15.55%， respectively.

Key words: 18CrNiMo7-6 steel, V-notch, forming grinding, finite element simulation, grinding force

CLC Number:

TG 580.1

Yin-xia ZHANG, Lan-fu LIANG, Zuo-peng SONG, Meng-qi LI. Simulation and Experimental Verification of Grinding Forces in Profile Grinding of 18CrNiMo7-6 Steel[J]. Journal of Northeastern University(Natural Science), 2025, 46(12): 85-93.

Figures/Tables 18

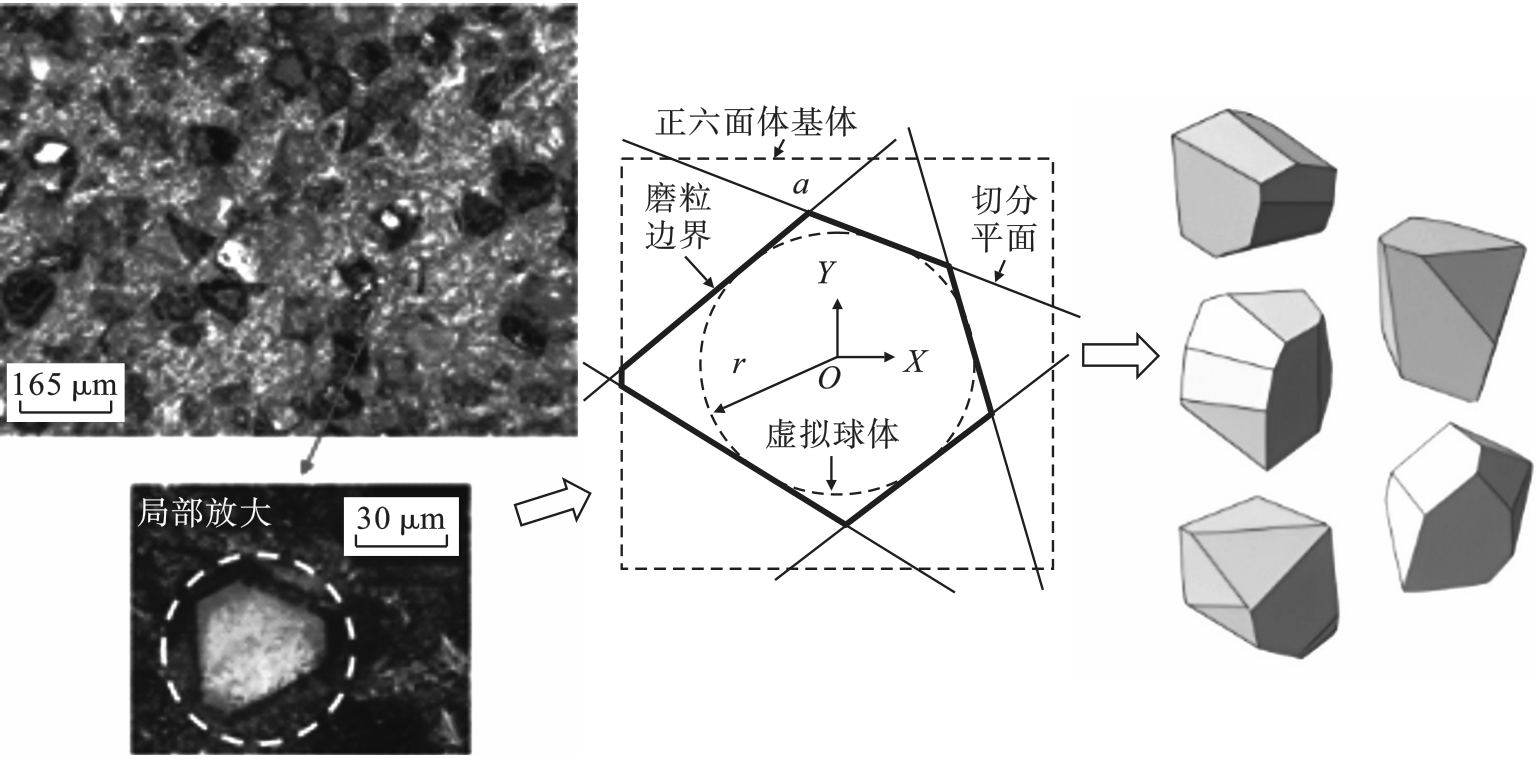

Fig.1 CBN abrasive particle model

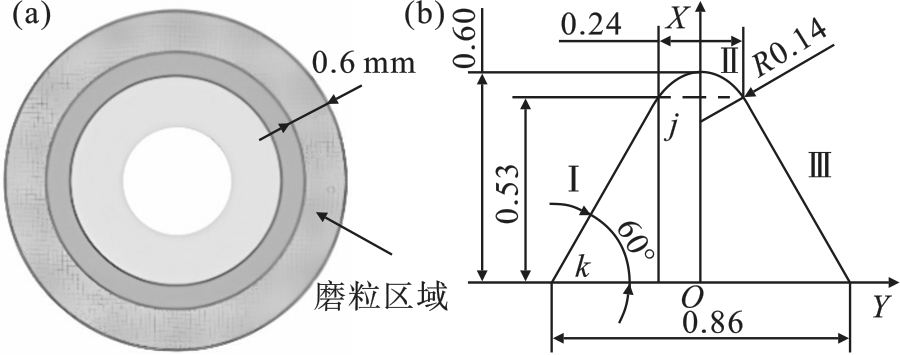

Fig.2 Geometric diagram of grinding wheel model (unit:mm)

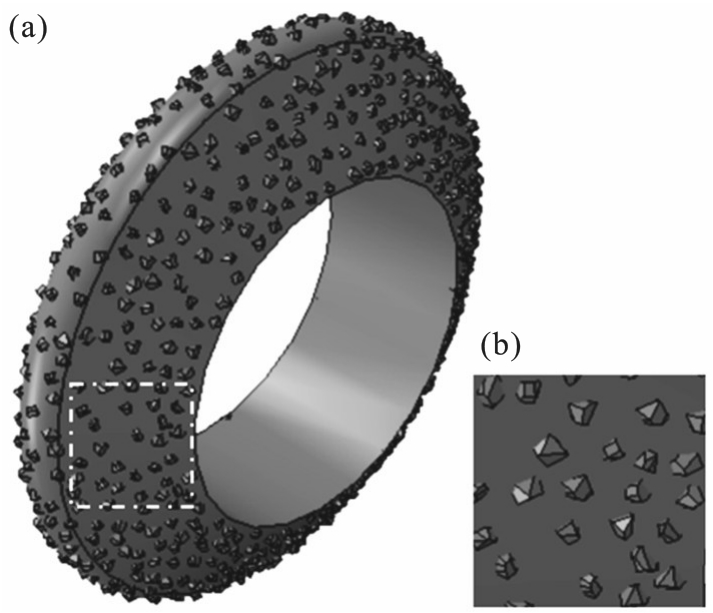

Fig.3 Simulated grinding wheel model

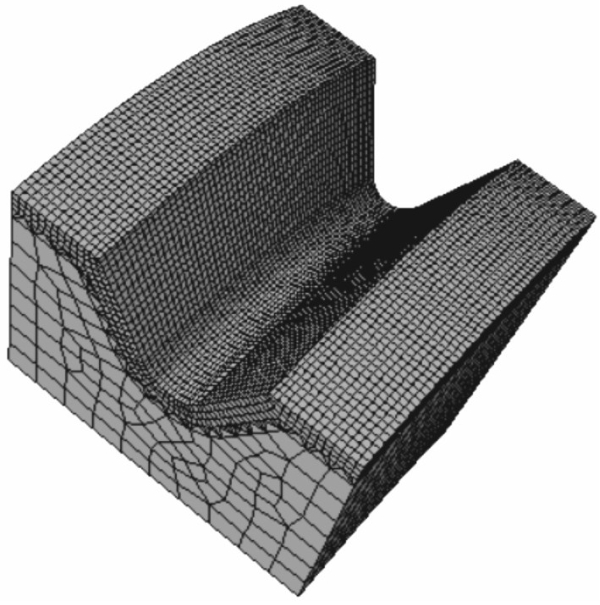

Fig.4 Mesh division of workpiece

Table 1 Chemical composition of 18CrNiMo7-6 steel (mass fraction)

C	Si	Mn	S	P	Cr	Ni	Mo	Fe
0.15~0.21	0.4	0.50~0.90	≤0.035	≤0.035	1.50~1.80	1.40~1.70	0.25~0.35	余量

Table 2 Basic physical parameters of CBN grinding wheel and workpiece materials

材料	弹性模量/GPa	泊松比	密度/(kg·m^-3)	硬度
CBN	706	0.15	3 450	8 000(HV)
18CrNiMo7-6	210	0.30	7 800	60(HRC)

Table 3 Parameter values of constitutive model for

参数	数值	参数	数值
$σ 0$ /MPa	263	D₁	0.05
B_m/MPa	624	D₂	0.80
C_m	0.017	D₃	-1.54
m	1.3	D₄	0.01
n	0.26	D₅	1

Table 3 Parameter values of constitutive model for

参数	数值	参数	数值
$σ 0$ /MPa	263	D₁	0.05
B_m/MPa	624	D₂	0.80
C_m	0.017	D₃	-1.54
m	1.3	D₄	0.01
n	0.26	D₅	1

Fig.5 Schematic diagram of friction contact zone between abrasive particles and workpiece

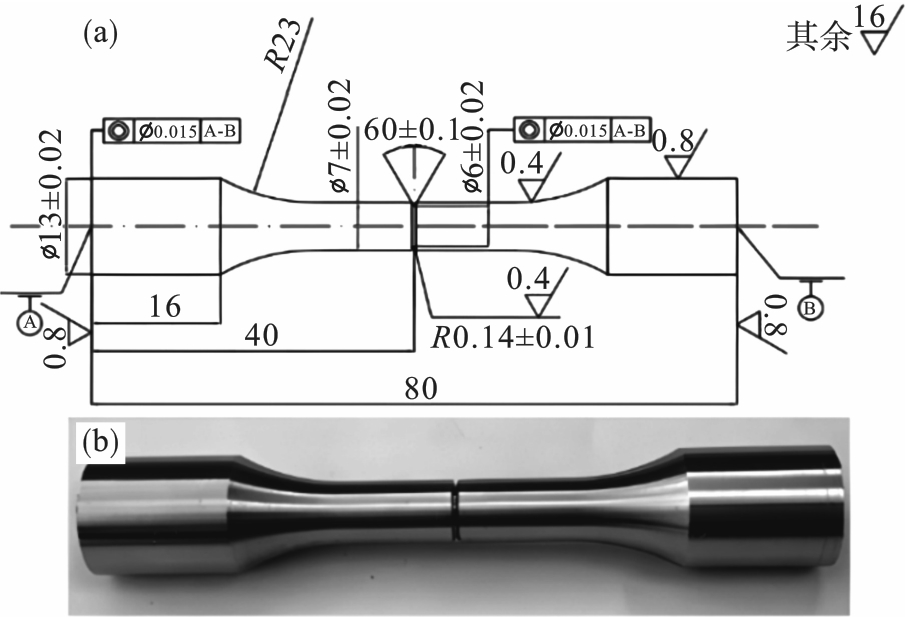

Fig.6 V-notch specimen

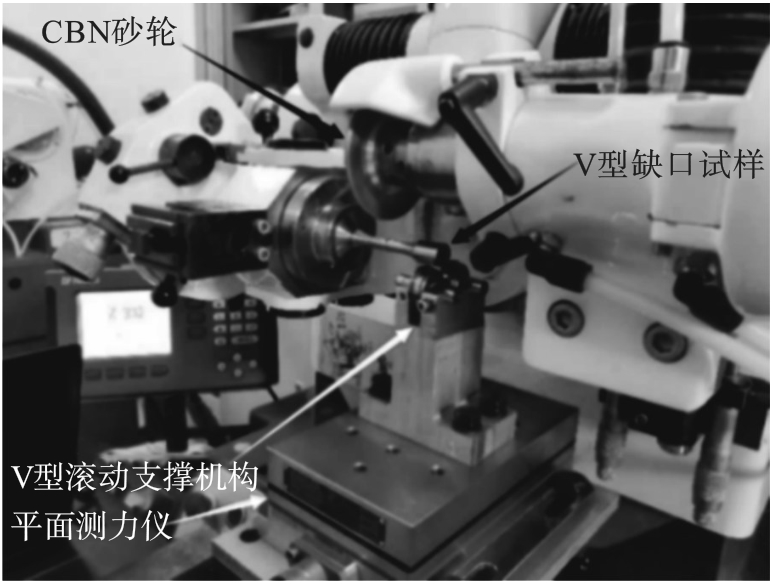

Fig.7 Measuring device for forming plunge grinding

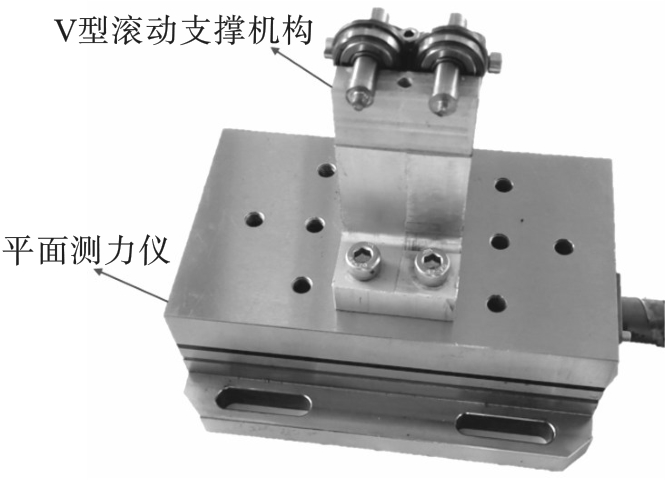

Fig.8 Installation of force measuring instruments

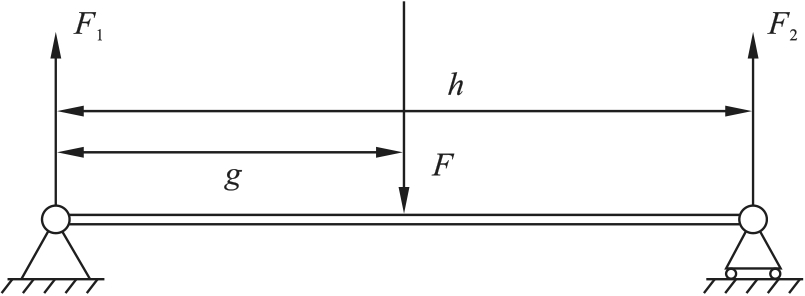

Fig.9 Schematic diagram of force analysis

Table 4 Process parameters of single-factor experiment

序号	砂轮转速n_s/(r·min^-1)	工件转速n_w/(r·min^-1)	砂轮径向进给速度v_r/(mm·min^-1)
1	4 000,5 000,6 000,7 000,8 000	700	0.15
2	6 000	500,600,700,800,900	0.15
3	6 000	700	0.1,0.125,0.15,0.175,0.2

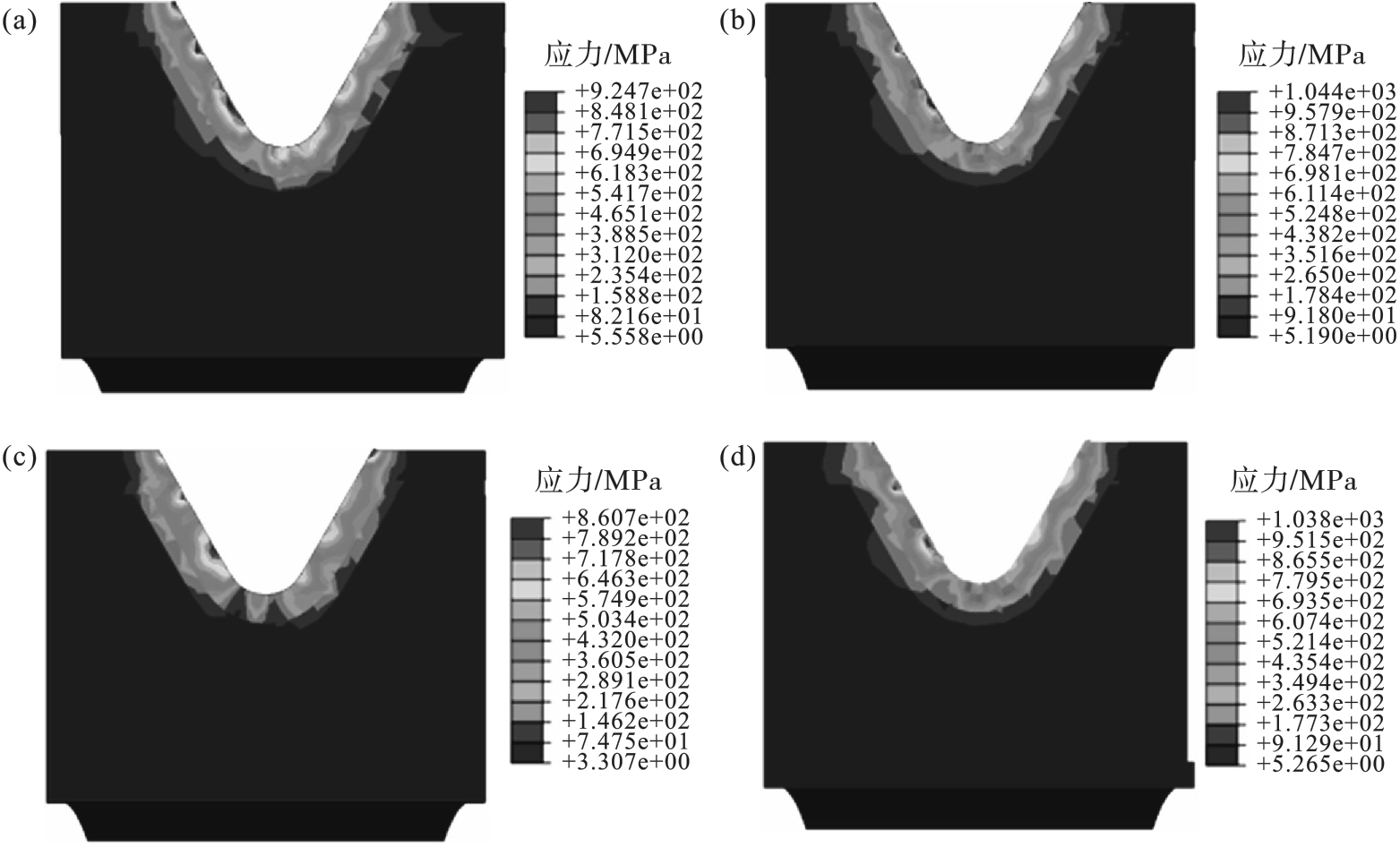

Fig.10 Stress distribution on workpiece obtained by V-notch’s cylindrical grinding simulation

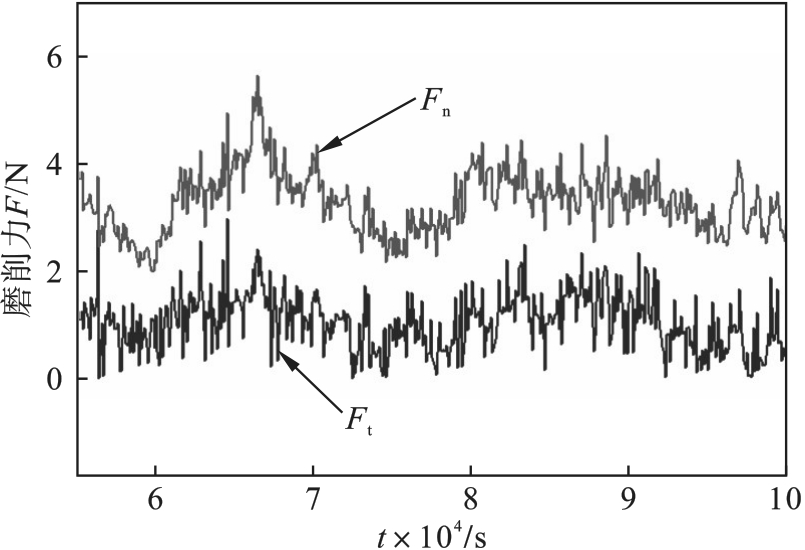

Fig.11 Grinding force curves obtained from notch grinding simulation

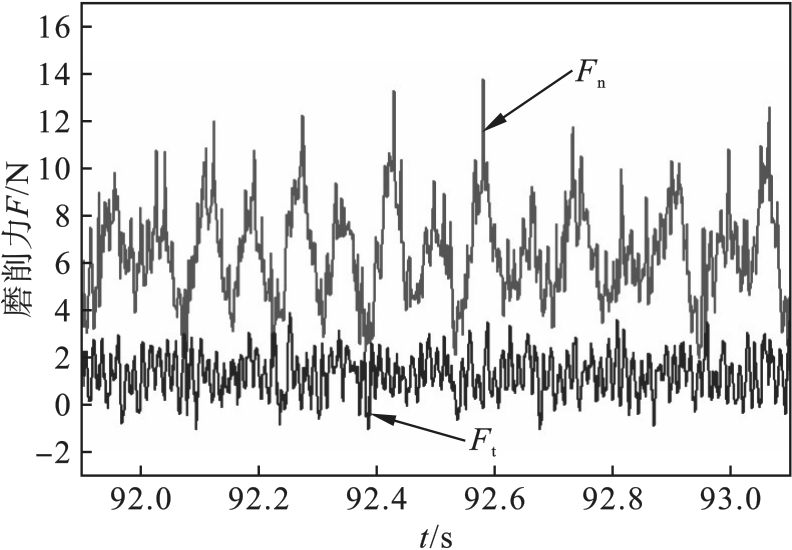

Fig.12 Grinding force curves obtained from notch grinding experiments

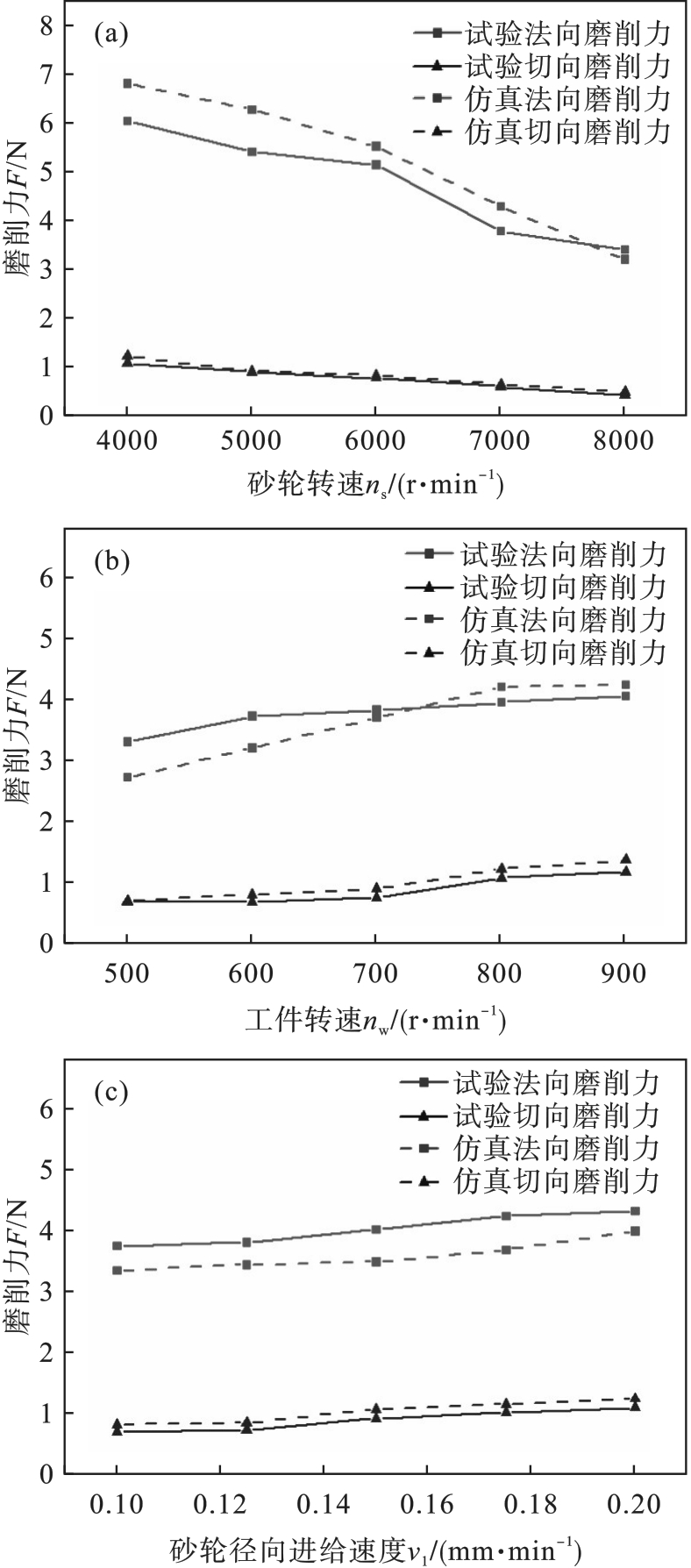

Fig.13 Influence of different process parameters on grinding force

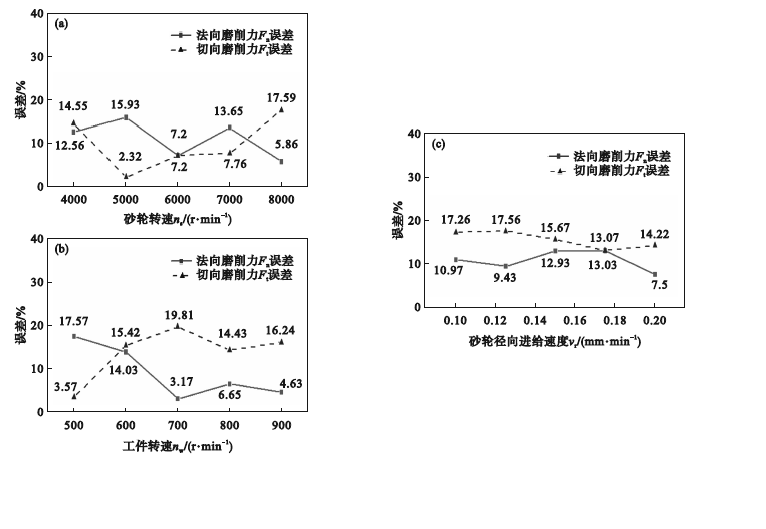

Fig.14 Comparison of simulated and experimental results of grinding force under different process parameters

References 25
