Joint Optimization Approach for Medical Image Compression and Vision Tasks

doi:10.12068/j.issn.1005-3026.2026.20259020

Abstract

Abstract:

In medical image processing， the reliance on independent encoding components makes it impossible to achieve joint optimization of data compression and machine vision tasks. To address this issue， an end-to-end machine vision task-driven medical image compression network （MVMICNet） was proposed， achieving harmonious unification of data compression and medical image analysis in an end-to-end manner. To maintain the performance of machine vision tasks before and after medical image compression， a task-aware improved code rate-accuracy loss function was designed. By introducing task-related loss terms， it dynamically balanced the relationship among code rate， reconstructed image distortion， and machine vision task accuracy during the optimization process. Furthermore， the MVMICNet model adopted a stage-wise training approach， specifically optimizing for the different characteristics of machine vision tasks to ensure that the model can accurately capture the feature information crucial for diagnosis. This has achieved a simultaneous improvement in compression efficiency and task performance， thus demonstrating superior robustness in complex medical application scenarios. Finally， the effectiveness of the framework was verified in semantic segmentation and object detection tasks.

Key words: medical image compression, semantic segmentation, object detection, convolutional neural network （CNN）, task-driven optimization

CLC Number:

TP 391

Chao YAO, Zi-xuan GAO, Jun-ru CHEN, Yi-peng LU. Joint Optimization Approach for Medical Image Compression and Vision Tasks[J]. Journal of Northeastern University(Natural Science), 2026, 47(1): 11-19.

Figures/Tables 11

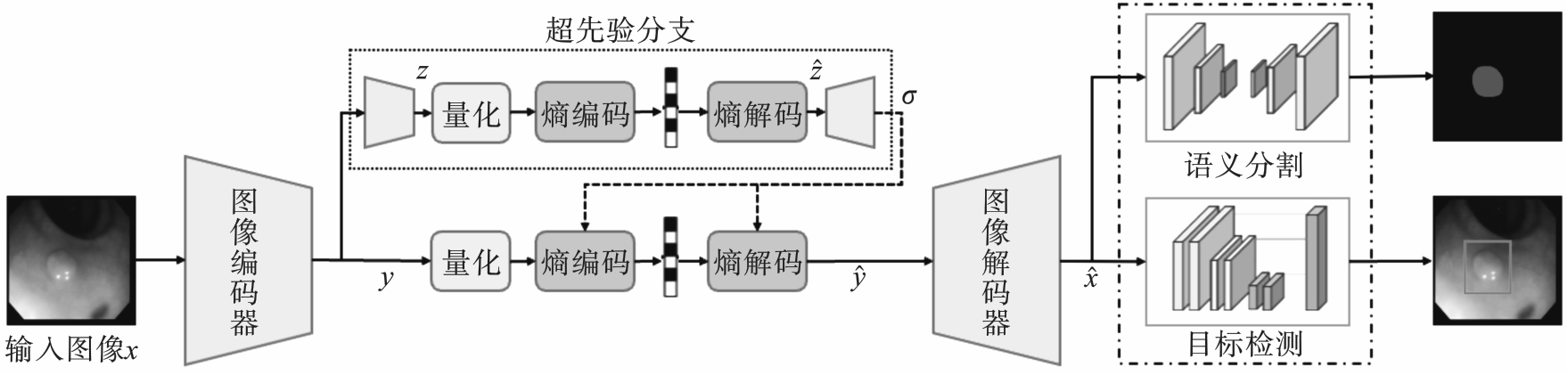

Fig.1 Schematic diagram of MVMICNet framework

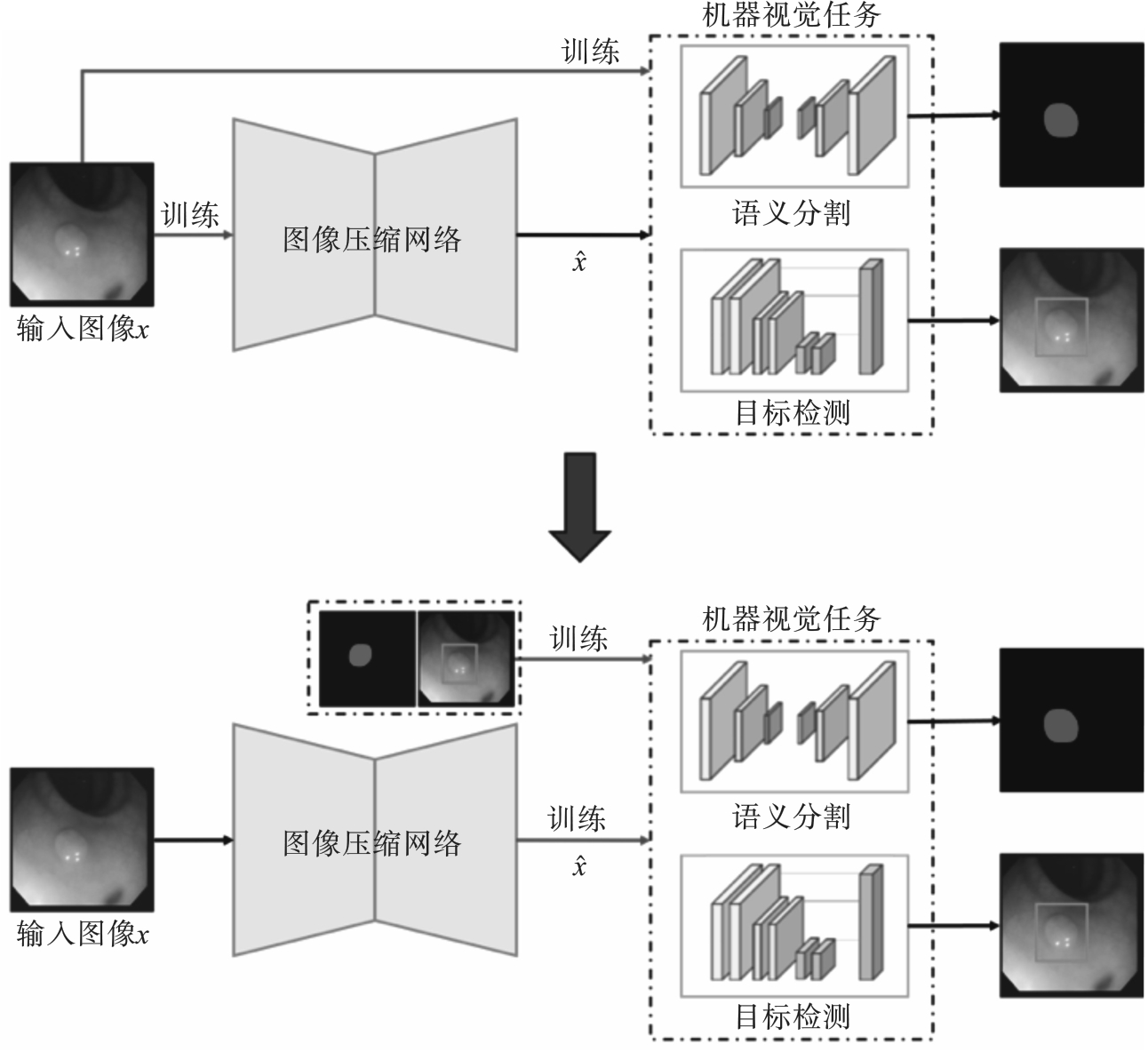

Fig.2 Schematic diagram of MVMICNet framework at task-specific optimization stage

Table 1 Comparison results of semantic segmentation accuracy on CVC-ColonDB dataset

算法	Bpp	PSNR/dB	MS-SSIM	mIoU
算法	Bpp	PSNR/dB	MS-SSIM	第一阶段	第二阶段
BPG	0.090	30.02	0.908	0.498 7
	0.100	31.40	0.929	0.559 1
	0.114	33.01	0.944	0.618 3
	0.132	34.53	0.956	0.668 3
MBT2018-Mean	0.080	32.55	0.907	0.613 5
	0.094	33.84	0.938	0.674 5
	0.111	35.15	0.952	0.722 0
	0.130	35.98	0.969	0.754 8
Cheng2020-Anchor	0.068	36.45	0.934	0.697 1
	0.089	37.98	0.952	0.743 5
	0.112	39.04	0.972	0.789 8
	0.137	39.82	0.978	0.819 2
MVMICNet	0.065	40.38	0.982	0.780 4	0.822 6
	0.083	41.25	0.984	0.825 2	0.831 7
	0.105	42.08	0.987	0.832 6	0.849 0
	0.131	42.83	0.989	0.833 7	0.864 5

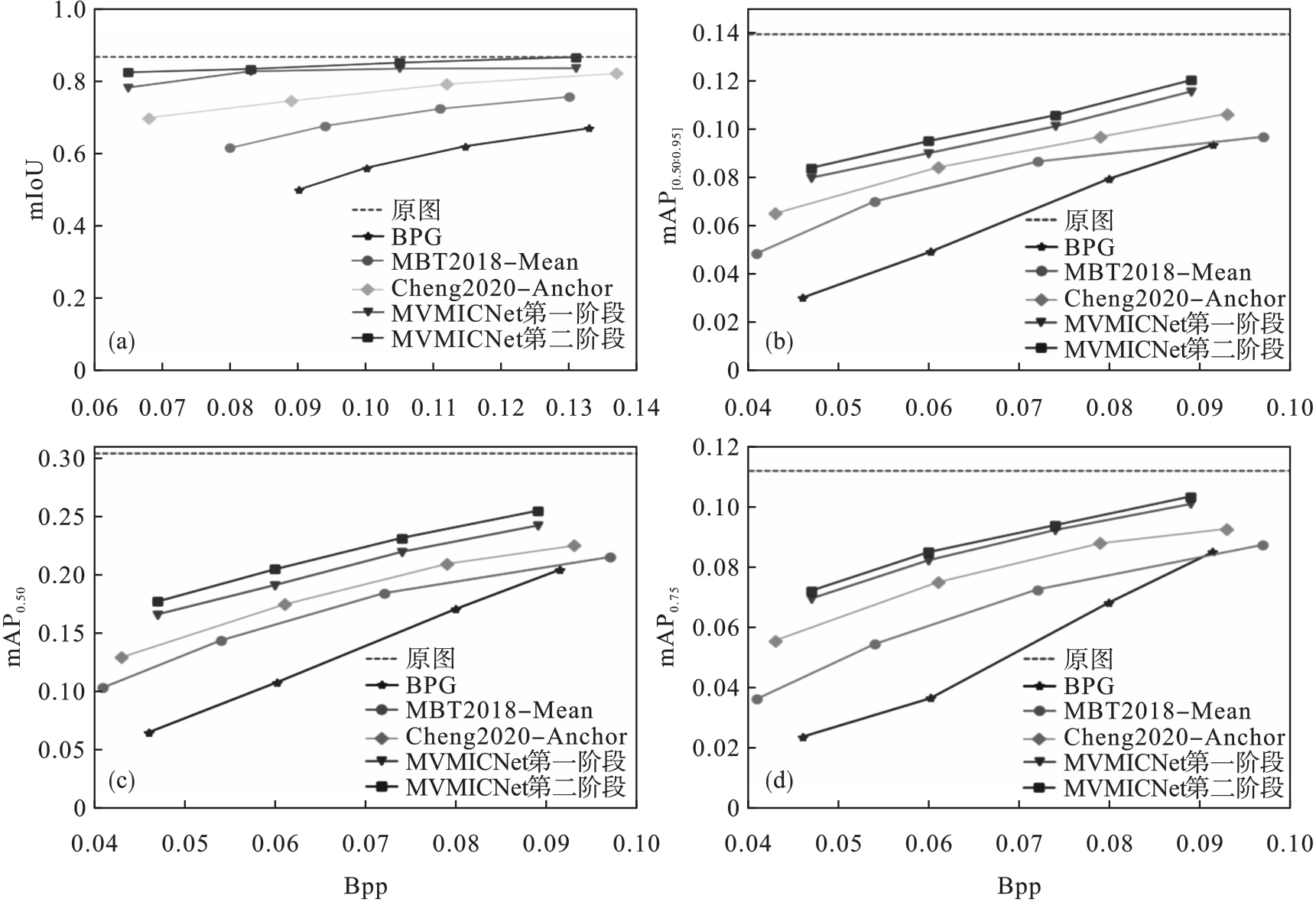

Fig.3 Comparison of code rate-accuracy curves for different algorithms on CVC-ColonDB and ChestX-Det datasets

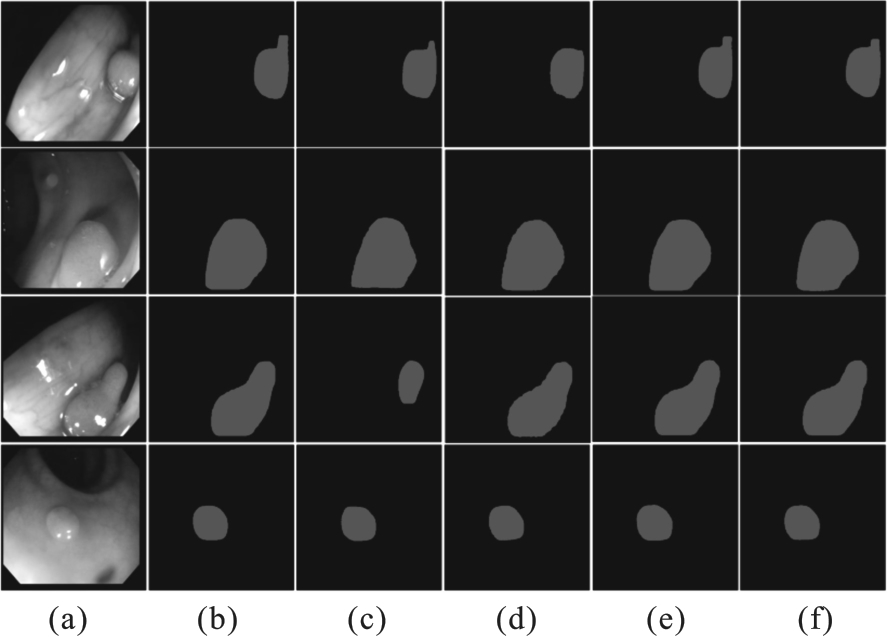

Fig.4 Visual result comparison of semantic segmentation by different algorithms on CVC-ColonDB dataset

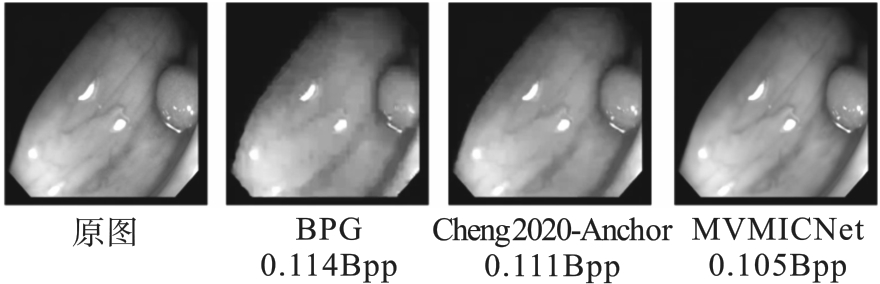

Fig.5 Reconstruction results of the same image from CVC-ColonDB dataset by different algorithms

Table 2 Comparison results 1 of object detection accuracy on ChestX-Det dataset

指标			MVMICNet				BPG
指标			$λ 2 = 0.000 01$	$λ 2 = 0.000 1$	$λ 2 = 0.001$	$λ 2 = 0.1$	q=34		q=31	q=28		q=25
Bpp			0.047	0.060	0.074	0.089	0.046	0.060			0.079		0.091
PSNR/dB			41.14	41.93	42.57	43.10	35.98	37.50			38.76		39.52
MS-SSIM			0.984 7	0.987 7	0.989 8	0.991 3	0.959 4	0.969 5			0.976 7		0.983 4
mAP	IoU=0.50:0.95	第一阶段	0.079 7	0.089 9	0.101 0	0.115 4	0.030 0	0.049 1			0.030 0		0.093 4
	IoU=0.50:0.95	第二阶段	0.083 8	0.094 9	0.105 6	0.120 1	0.030 0	0.049 1			0.030 0		0.093 4
	IoU=0.50	第一阶段	0.164 9	0.190 1	0.218 4	0.241 0	0.064 0	0.106 9			0.064 0		0.203 3
	IoU=0.50	第二阶段	0.175 9	0.203 6	0.230 4	0.253 6	0.064 0	0.106 9			0.064 0		0.203 3
	IoU=0.75	第一阶段	0.069 3	0.082 0	0.092 0	0.100 6	0.023 5	0.036 3			0.023 5		0.084 7
	IoU=0.75	第二阶段	0.071 9	0.084 7	0.093 6	0.103 1	0.023 5	0.036 3			0.023 5		0.084 7

Table 2 Comparison results 1 of object detection accuracy on ChestX-Det dataset

指标			MVMICNet				BPG
指标			$λ 2 = 0.000 01$	$λ 2 = 0.000 1$	$λ 2 = 0.001$	$λ 2 = 0.1$	q=34		q=31	q=28		q=25
Bpp			0.047	0.060	0.074	0.089	0.046	0.060			0.079		0.091
PSNR/dB			41.14	41.93	42.57	43.10	35.98	37.50			38.76		39.52
MS-SSIM			0.984 7	0.987 7	0.989 8	0.991 3	0.959 4	0.969 5			0.976 7		0.983 4
mAP	IoU=0.50:0.95	第一阶段	0.079 7	0.089 9	0.101 0	0.115 4	0.030 0	0.049 1			0.030 0		0.093 4
	IoU=0.50:0.95	第二阶段	0.083 8	0.094 9	0.105 6	0.120 1	0.030 0	0.049 1			0.030 0		0.093 4
	IoU=0.50	第一阶段	0.164 9	0.190 1	0.218 4	0.241 0	0.064 0	0.106 9			0.064 0		0.203 3
	IoU=0.50	第二阶段	0.175 9	0.203 6	0.230 4	0.253 6	0.064 0	0.106 9			0.064 0		0.203 3
	IoU=0.75	第一阶段	0.069 3	0.082 0	0.092 0	0.100 6	0.023 5	0.036 3			0.023 5		0.084 7
	IoU=0.75	第二阶段	0.071 9	0.084 7	0.093 6	0.103 1	0.023 5	0.036 3			0.023 5		0.084 7

Table 3 Comparison result 2 of object detection accuracy on the ChestX-Det dataset

指标		MBT2018-Mean				Cheng2020-Anchor
指标		q=5	q=4	q=3	q=2	q=5	q=4	q=3	q=2
Bpp		0.041	0.054	0.072	0.097	0.043	0.061	0.079	0.093
PSNR/dB		37.36	38.60	39.98	40.81	39.41	40.63	41.63	42.36
MS-SSIM		0.969 1	0.974 0	0.978 8	0.984 5	0.979 6	0.983 2	0.985 4	0.986 6
mAP	IoU=0.50:0.95	0.048 4	0.069 9	0.086 4	0.096 7	0.064 9	0.084 0	0.096 7	0.106 2
	IoU=0.50	0.102 4	0.142 7	0.183 1	0.214 1	0.128 2	0.173 4	0.208 2	0.223 7
	IoU=0.75	0.036 1	0.054 2	0.072 3	0.087 1	0.055 4	0.074 7	0.087 6	0.092 4

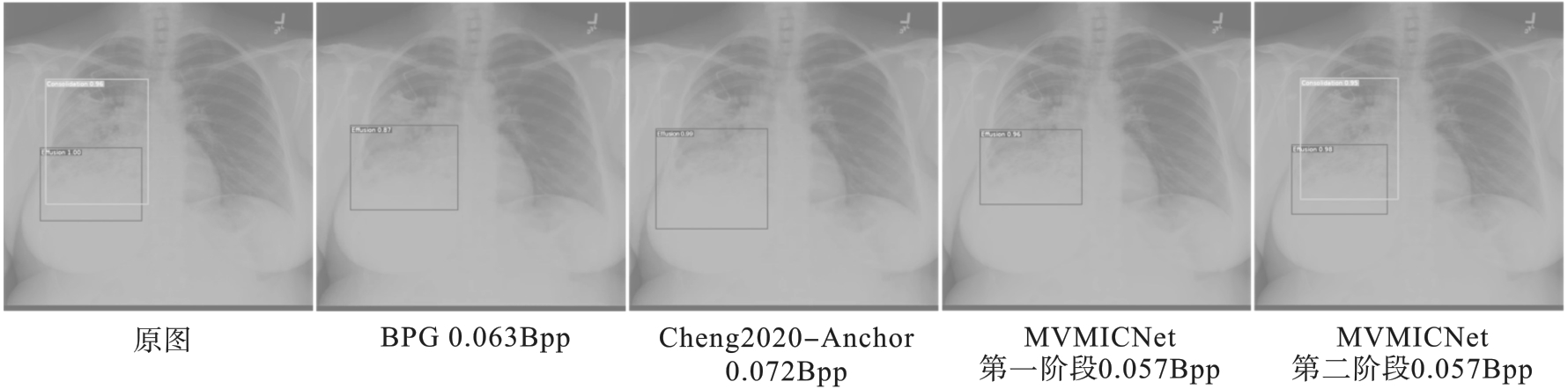

Fig.6 Visual result comparison of object detection by different algorithm on ChestX-Det dataset

Fig.7 Reconstruction results of the same image from ChestX-Det dataset by different algorithm

Table 4 Impact of parameter λ2 on semantic

$λ 2$	Bpp	PSNR/dB	mIoU/%	准确率/%
0.1	0.252 30	24.250	33.040	45.5
0.001	0.245 60	31.880	45.780	63.0
0.000 1	0.243 20	35.080	58.030	79.9
0.000 01	0.243 10	34.570	52.710	72.6

Table 4 Impact of parameter λ2 on semantic

$λ 2$	Bpp	PSNR/dB	mIoU/%	准确率/%
0.1	0.252 30	24.250	33.040	45.5
0.001	0.245 60	31.880	45.780	63.0
0.000 1	0.243 20	35.080	58.030	79.9
0.000 01	0.243 10	34.570	52.710	72.6
