Effect of Vibration of Side Dam on Solidification Inside Melt Pool of Twin-Roll Thin Strip Casting

doi:10.12068/j.issn.1005-3026.2026.20240139

Abstract

Abstract:

A numerical simulation was conducted to investigate the solidification characteristics inside the melt pool during twin-roll thin strip casting under side dam vibration. The effects of vibration frequency， amplitude， and casting temperature on molten steel solidification in the melt pool were analyzed. The mechanical vibration experiment was designed to validate the accuracy of the numerical model. Results show that applying vibration accelerates molten metal solidification rate， and higher vibration frequency further enhances the solidification rate. Due to the high heat flux density at the side dam， the solidification rate of the molten steel increases， leading to a decreasing trend in liquid fraction from the side dam to the center of the melt pool along the horizontal direction. Elevated casting temperature reduces the melt pool’s mushy zone size and lowers the Kiss point position. The study finds that the optimal vibration frequency is 13 Hz， the optimal amplitude is 0.5 mm， and the casting temperature should not exceed 1 860 K.

Key words: twin-roll thin strip casting, side dam, vibration, solidification, numerical simulation

CLC Number:

TG 244

Xuan-xuan LI, En JIANG, Gang LIU, Xian-zhong HU. Effect of Vibration of Side Dam on Solidification Inside Melt Pool of Twin-Roll Thin Strip Casting[J]. Journal of Northeastern University(Natural Science), 2026, 47(1): 123-130.

Figures/Tables 13

Table 1 Physical model size of melt pool

物理参数	数值
结晶辊半径（R）	250
带坯厚度（δ）	4
结晶辊宽度（D_P）	600
布流器长度（L）	550
布流器出口长度（l）	50
布流器出口宽度（d）	10
布流器入口宽度（D）	54

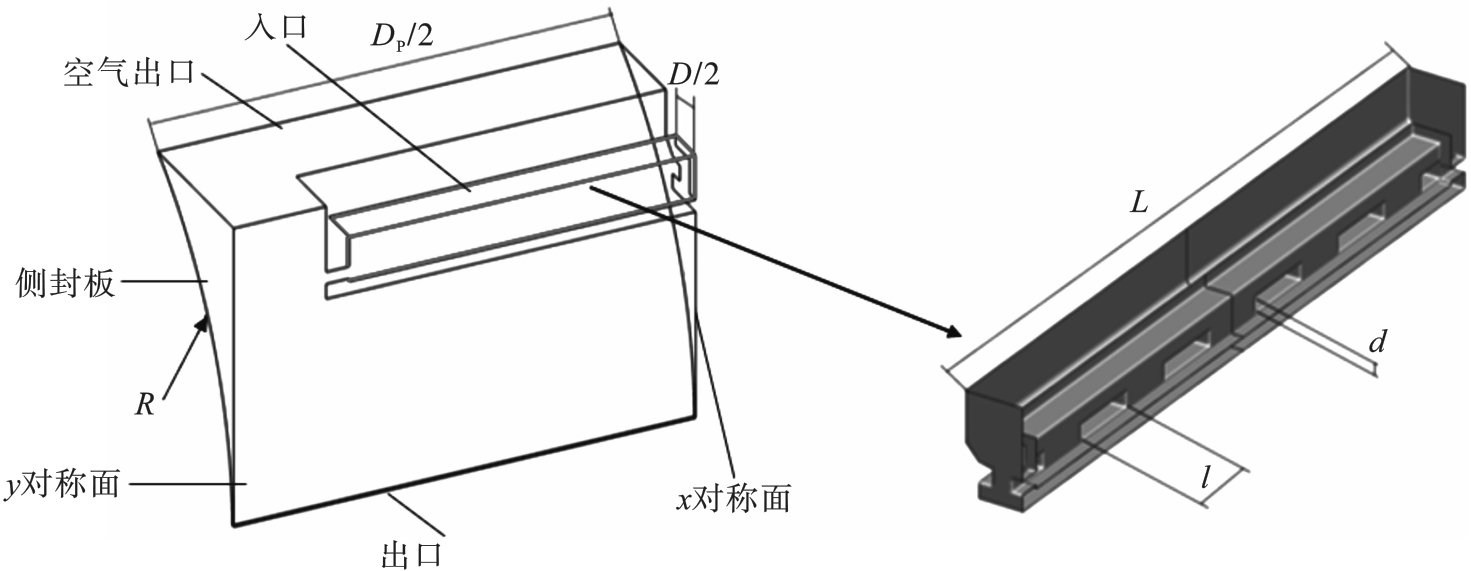

Fig.1 Schematic diagram of melt pool’s physical model

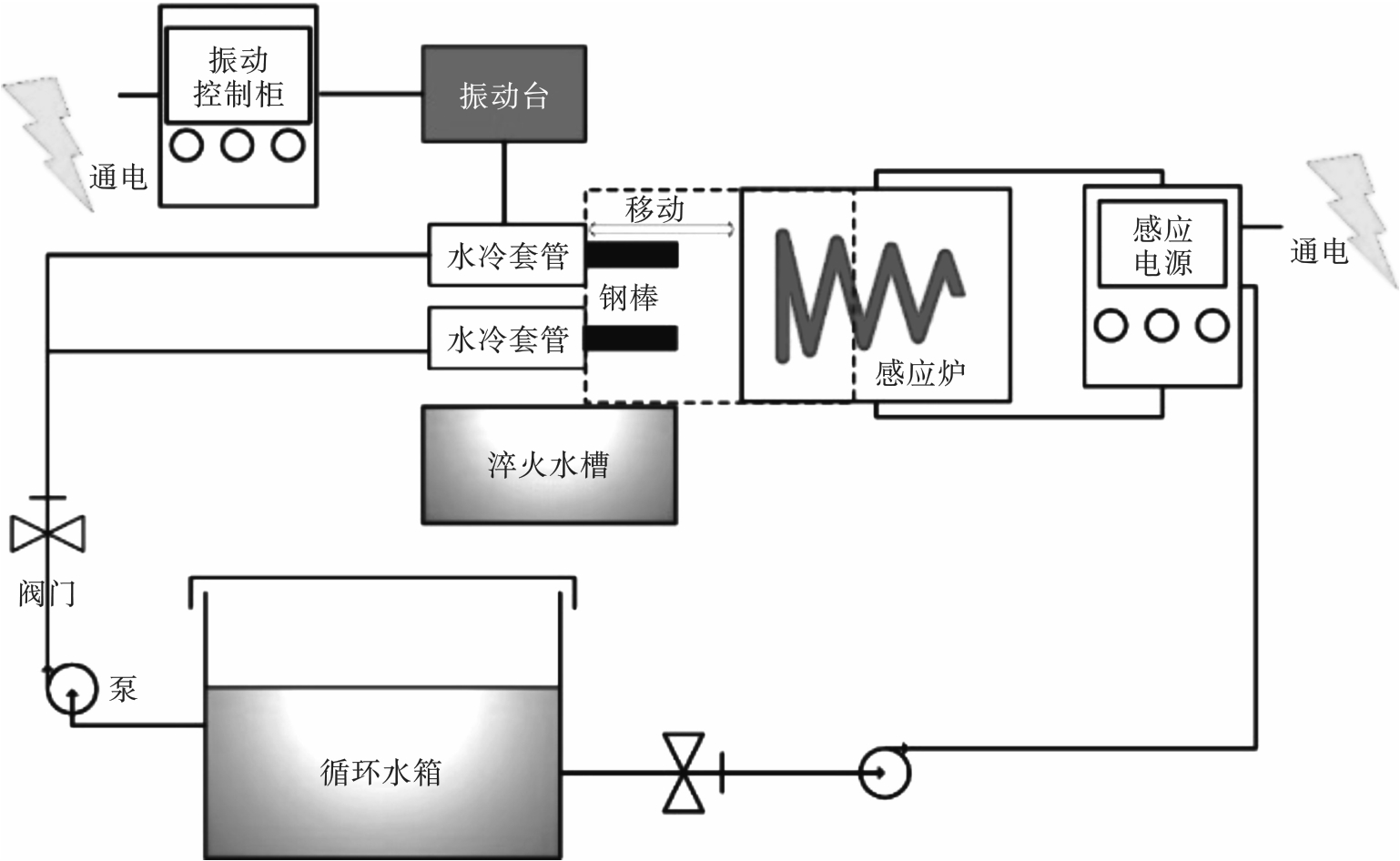

Fig.2 Schematic diagram of experimental system

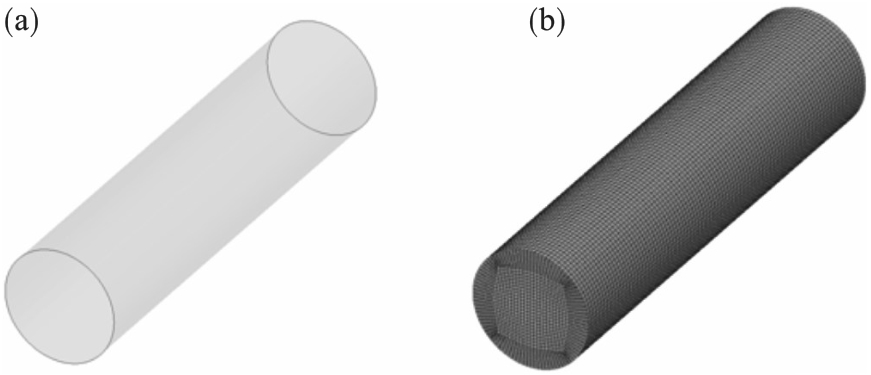

Fig.3 Geometric model and grid division

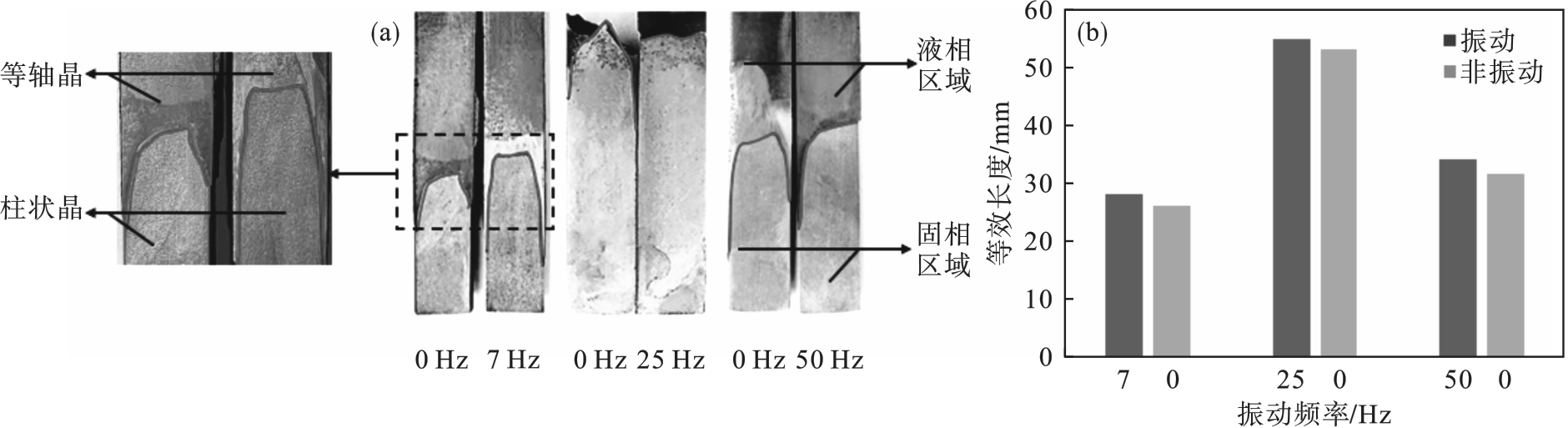

Fig.4 Experimental results at different vibration frequencies

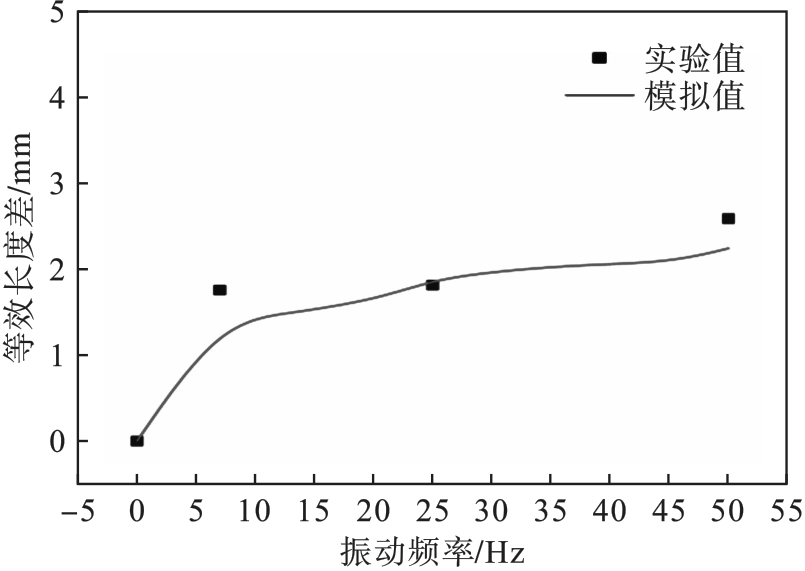

Fig.5 Comparison of experiment and simulation results under different vibration frequencies

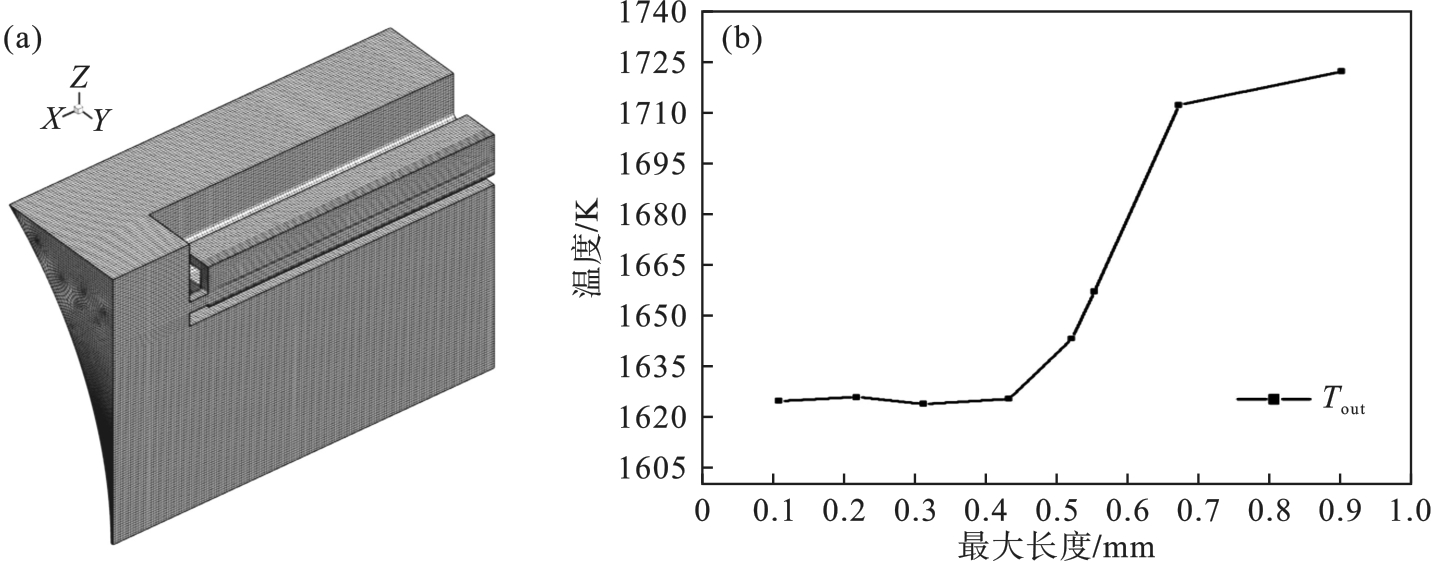

Fig.6 Grid division and independence verification

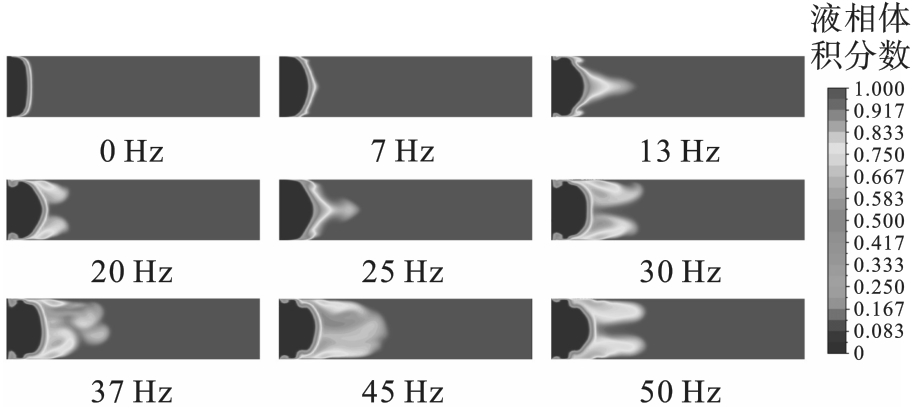

Fig.7 Numerical simulation nephogram of steel bars

Fig.8 Schematic diagram of position selection on melt pool’s physical model

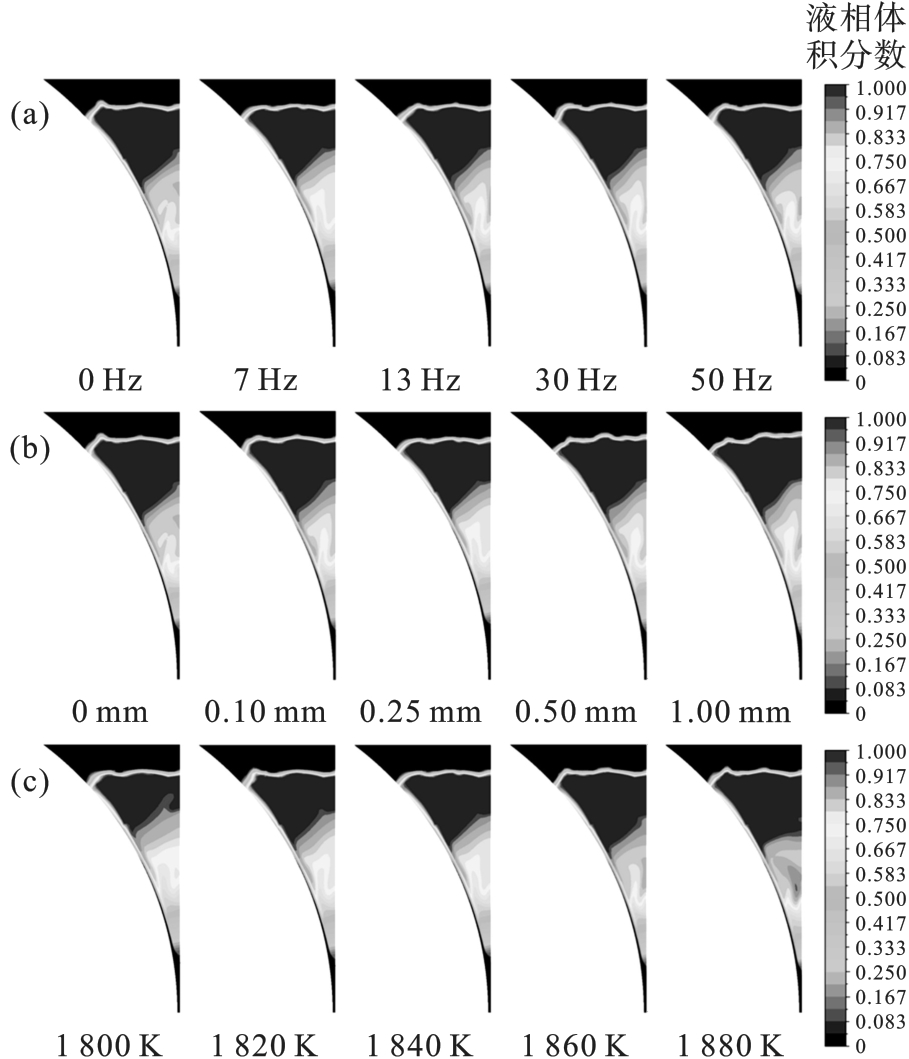

Fig.9 Liquid volume fraction distribution near side dam in melt pool

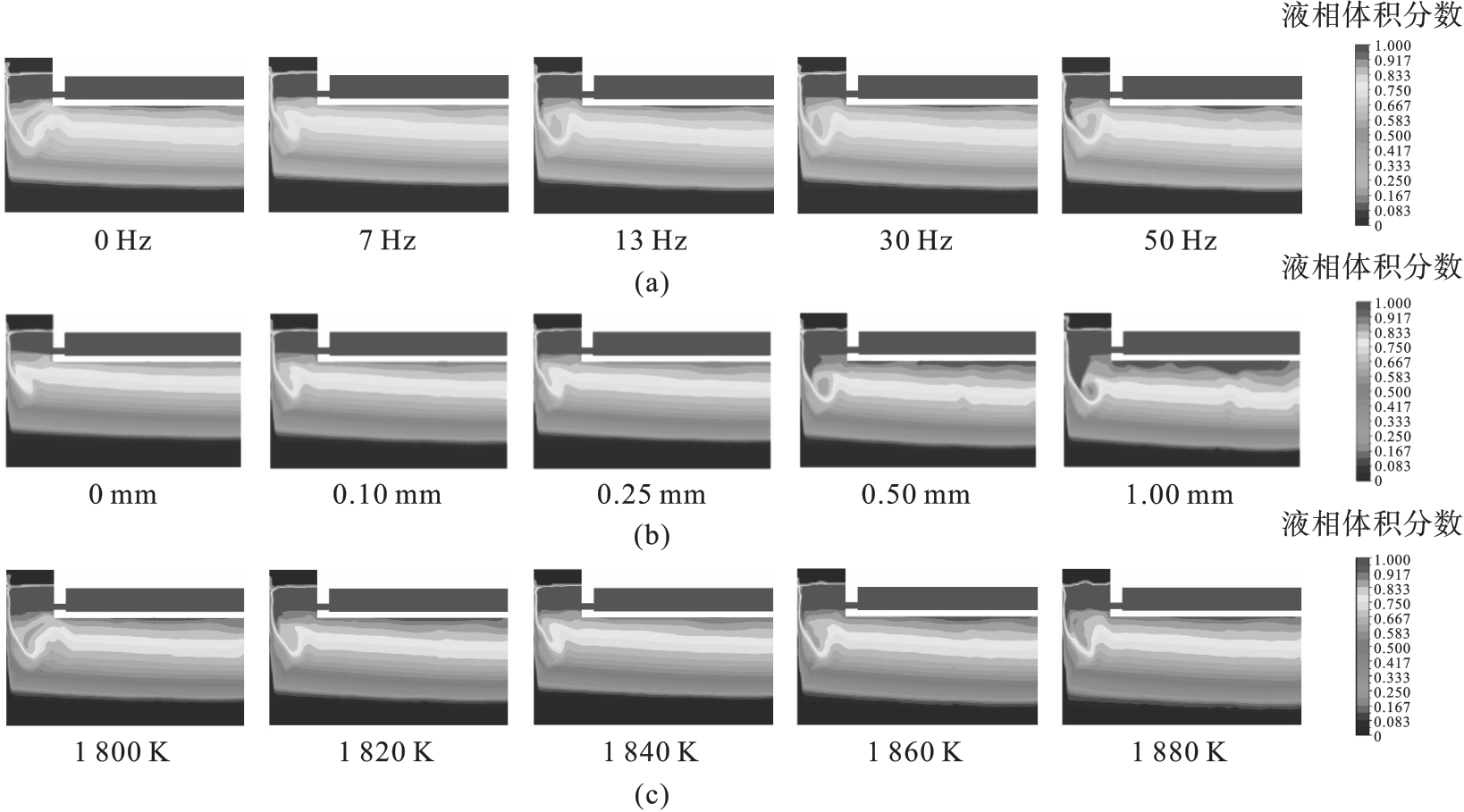

Fig.10 Liquid volume fraction distribution on y-symmetry plane

Fig.11 Liquid volume fraction distribution at horizontal center of melt pool

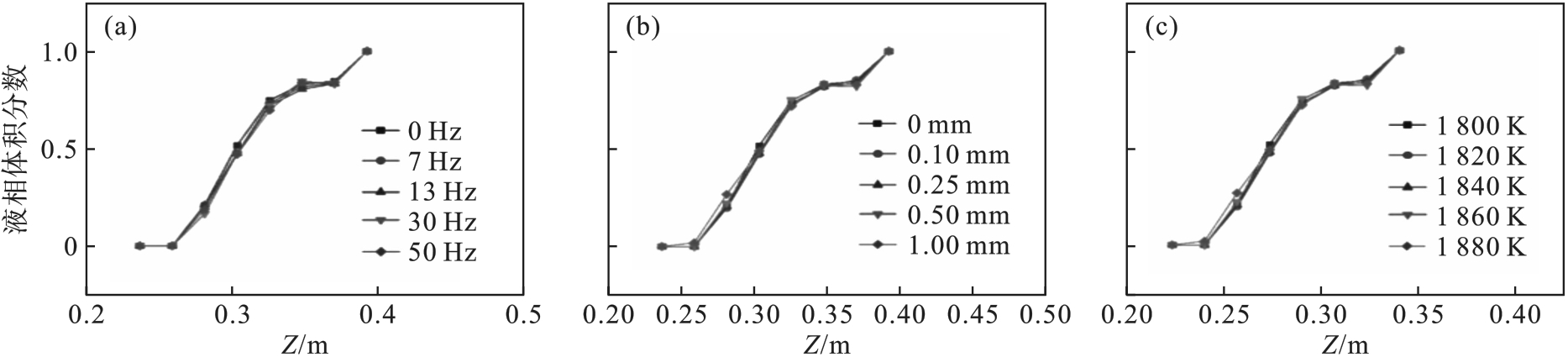

Fig.12 Liquid volume fraction distribution on centerline near side dam of melt pool

References 19

[1]	Zapuskalov N. Comparison of continuous strip casting with conventional technology［J］. ISIJ International， 2003， 43（8）： 1115-1127.
[2]	Omura N， Murakami Y， Li M J， et al. Effects of mechanical vibration on cooling rate and DAS of AC4C aluminum alloy gravity die castings［J］. Materials Transactions， 2009， 50（11）： 2604-2608.
[3]	Li A， Wang Z M， Sun Z P. Effect of ultrasonic vibration on microstructure and fluidity of aluminum alloy［J］. Materials， 2023， 16（11）： 4110-4125.
[4]	Wang X， Guan R G， Guo N， et al. Metal solidification-nucleation-rate model under coupling effects of shearing flow and vibration［J］. Materials Science and Technology， 2016， 32（2）： 154-163.
[5]	Currey D A， Pickles C A. Electromagnetic stirring of aluminium-silicon alloys［J］. Journal of Materials Science， 1988， 23（10）： 3756-3763.
[6]	Yan H， Rao Y S， He R. Morphological evolution of semi-solid Mg₂Si/AM60 magnesium matrix composite produced by ultrasonic vibration process［J］. Journal of Materials Processing Technology， 2014， 214（3）： 612-619.
[7]	Li M J， Tamura T， Miwa K. Controlling microstructures of AZ31 magnesium alloys by an electromagnetic vibration technique during solidification： from experimental observation to theoretical understanding［J］. Acta Materialia， 2007， 55（14）： 4635-4643.
[8]	Jian X， Xu H， Meek T T， et al. Effect of power ultrasound on solidification of aluminum A356 alloy［J］. Materials Letters， 2005， 59（2/3）： 190-193.
[9]	Kudryashova O， Khmeleva M， Danilov P， et al. Optimizing the conditions of metal solidification with vibration［J］. Metals， 2019， 9（3）： 366-378.
[10]	Niu S， Senk D， Rezende J L L. Numerical modeling of the effect of mechanical vibration on 10 kg C45 steel ingot solidification［J］. Steel Research International， 2019， 90（8）： 1900081.
[11]	Wang W L， Chen J， Li M M， et al. Numerical simulation of temperature and fluid fields in solidification process of ferritic stainless steel under vibration conditions［J］. Crystals， 2019， 9（3）： 174-186.
[12]	Guo C Y， Xue Y， Yan F S， et al. Numerical simulation on flow and heat transfer in twin roll strip casting and rolling molten pool with side dams vibrating［J］. The International Journal of Advanced Manufacturing Technology， 2023， 125（9）： 4497-4512.
[13]	Bouchard D， Hamel F G， Turcotte S F， et al. Water modeling evaluation of metal delivery in a twin roll strip caster using pool level and residence time distribution measurements［J］. ISIJ International， 2001， 41（12）： 1465-1472.
[14]	Menter F R. Two-equation eddy-viscosity turbulence models for engineering applications ［J］. AIAA Journal， 1994， 32（8）： 1598-1605.
[15]	薛顺辉.双辊薄带铸轧熔池流场温度场及斜裂纹形成机理的研究［D］.秦皇岛：燕山大学，2017.
	Xue Shun-hui. Research on flow and temperature field and the formation mechanism of oblique cracks during the TRC strip［D］. Qinhuangdao： Yanshan University， 2017.
[16]	郭志远.双辊薄带振动铸轧数值模拟及实验研究［D］.秦皇岛：燕山大学，2016.
	Guo Zhi-yuan. Effect of oscillation on flow field and temperature field during the twin-roll strip casting process［D］. Qinhuangdao： Yanshan University， 2016.
[17]	Sun M H， Guo S P， Zheng L K， et al. Research on twin-roll strip cast-rolling based on a new sectional roll surface heat transfer boundary condition［J］. Ironmaking & Steelmaking， 2021， 48（3）： 254-262.
[18]	Cao X L， Zhu G M， Yue B W， et al. Research on cast-rolling force in twin-roll continuous strip casting based on uncertainty analysis［J］. Materials Today Communications， 2020， 24： 101100.
[19]	Aboutalebi M R， Hasan M， Guthrie R I L. Coupled turbulent flow， heat， and solute transport in continuous casting processes［J］. Metallurgical and Materials Transactions B， 1995， 26（4）： 731-744.
